EDM Wire
| X | 14.6" | 370.84 mm |
| Y | 10.6" | 269.24 mm |
| Z | 8.7" | 220.98 mm |
Request a Quote
Add to Cart
X-Axis Travel: 14.6"
Y-Axis Travel: 10.6"
Z-Axis Travel: 8.7"
Control: Hyper-i CNC
Glass Scale Feedback: X and Y Axes
U/V Axis Travel: 2" X 2"
Degree Taper Cutting: ±15° at 3.94" (100mm)
Inside Tank Dimensions: 31.1" x 24.1"
Power Requirement: 480VAC/ 3PH/ 60Hz
Table Working Area: 24.8" × 18.1" (630 mm × 460 mm)
Wire Electrode Diameter: 0.004" to 0.012" (0.1 mm to 0.3 mm)

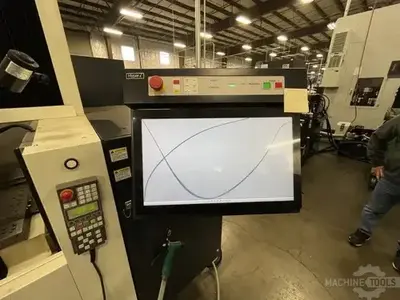

Dielectric Fluid Height Setting Function: Large 24” HD Touch-Screen Display
Low Wire Consumption Technology: Micron Scale Feedback
PICO Precision Guide: Auto Wire Threading
Chiller Included
