USED HOSOKAWA 315/3

Used Hosokawa Alpine Turboplex ATP 315/3 Ultrafine Air Classifier System Ceramic Lined, 6150 Micron, 3-Wheel High Efficiency Design. Ceramic lined classifying wheels and vessel for abrasive applications, rated for fineness of 6-150 micron, feed rate of 1500-7500 kg per hour, featuring (3) 315mm diameter classifying wheels, each rated for 400-4000 rpm speed and 11kW motor through V-belt drive (33 kW total). Scale up factor of F=7.5, air flow rate of 9000 m3/h, fines yield of 1 t/h at 8 ?m, 2.1 t/h at 20 ?m, 3 t/h at 45 ?m. With Hokokawa Alpine High Performance Filter Baghouse Dust Collector, Reitz Ventilatoren High Performance Blower, driven by 90 kW motor, rated for 125 m3/min air flow, 3 PSI static pressure.

Used Equipment Facts About This Machine
Manufacturer Information

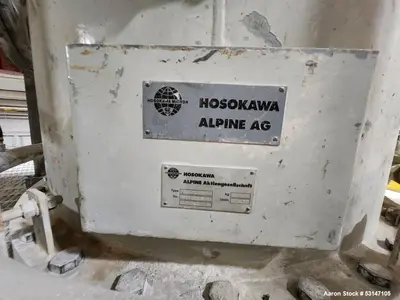

Manufacturer: Hosokawa Alpine AG
Model: Turboplex ATP 315/3
Classifier Type: Ultrafine Dynamic Air Classifier
Lining: Ceramic-lined classifying wheels & vessel
Dust Collector: Hosokawa Alpine High Performance Filter Baghouse
Blower: Reitz Ventilatoren High Performance Blower
Application: Abrasive ultrafine powder classification
Hosokawa Alpine is a global leader in powder and particle processing technology, specializing in air classification, micronization, and size reduction systems for minerals, chemicals, pharmaceuticals, and advanced materials.

Description

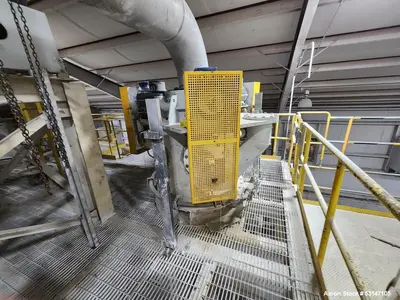

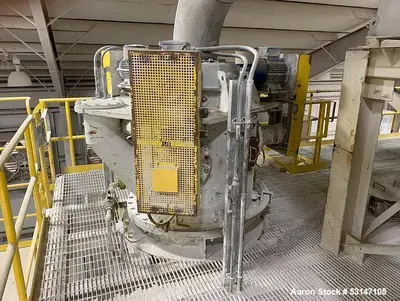

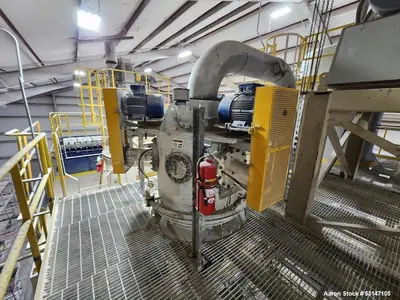

This Used Hosokawa Alpine Turboplex ATP 315/3 Ultrafine Air Classifier System is engineered for precision separation of fine and ultrafine powders in demanding abrasive applications. Featuring ceramic-lined classifying wheels and vessel, this unit is specifically designed for high-wear materials such as minerals, ceramics, and industrial fillers.
The classifier is rated for fineness ranging from 6 to 150 microns, with a feed rate capacity of 1,500–7,500 kg/hour. It incorporates three (3) 315mm diameter classifying wheels, each driven by an 11 kW motor (33 kW total installed classifier power) via V-belt drive. Wheel speeds range from 400–4,000 RPM, allowing precise control over cut point and particle size distribution.

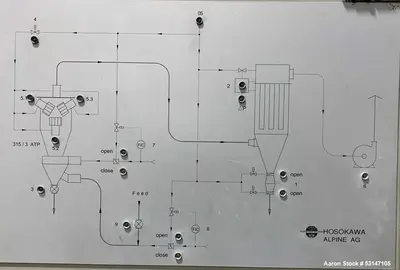

The system includes a Hosokawa Alpine high-performance baghouse dust collector and a Reitz Ventilatoren blower driven by a 90 kW motor, rated for 125 m³/min airflow at 3 PSI static pressure, delivering efficient airflow and dust control for closed-loop classification.
This configuration offers a scale-up factor F=7.5, making it ideal for production-scale ultrafine separation.

Classifier Specifications

Manufacturer: Hosokawa Alpine

Model: Turboplex ATP 315/3

Classification Range: 6–150 microns

Feed Rate: 1,500–7,500 kg/hour

Classifying Wheels: (3) x 315mm diameter

Wheel Speed: 400–4,000 RPM

Wheel Drive: (3) x 11 kW motors (33 kW total)

Drive Type: V-belt

Air Flow Rate: 9,000 m³/hour

Scale-Up Factor: F = 7.5

Construction: Ceramic-lined for abrasive materials

Performance (Fines Yield)

1 ton/hour at 8 µm

2.1 ton/hour at 20 µm

3 ton/hour at 45 µm

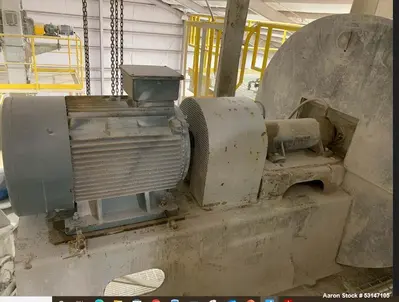

Blower Specifications

Manufacturer: Reitz Ventilatoren

Motor: 90 kW

Air Flow: 125 m³/min

Static Pressure: 3 PSI

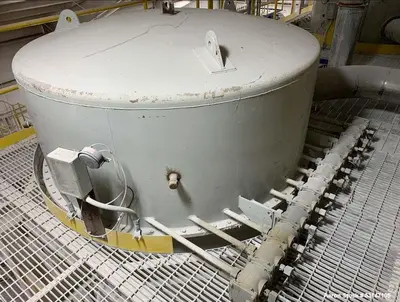

Dust Collection System

Manufacturer: Hosokawa Alpine

Type: High Performance Filter Baghouse

Application: Ultrafine powder dust control

Designed for closed-loop classification systems

Applications

Mineral filler classification

Calcium carbonate processing

Silica powder separation

Ceramic powder refinement

Toner powder production

Metal powder classification

Industrial pigment processing

Abrasive material separation

Refractory powder processing

Specialty chemical powders

What Might This Be Used For?

Ultrafine mineral separation

Tight particle size control production

Abrasive material classification

Closed-loop milling systems

Battery material refinement

Advanced ceramics manufacturing

High-performance filler production

Contract toll processing

Pigment and coating additive production

Industrial powder plant expansion

Products This Equipment Is Used For

Calcium carbonate fillers

Silica flour

Talc powder

Alumina powder

Zircon flour

Ceramic raw materials

Pigment extenders

Refractory powders

Battery cathode materials

Specialty industrial additives
