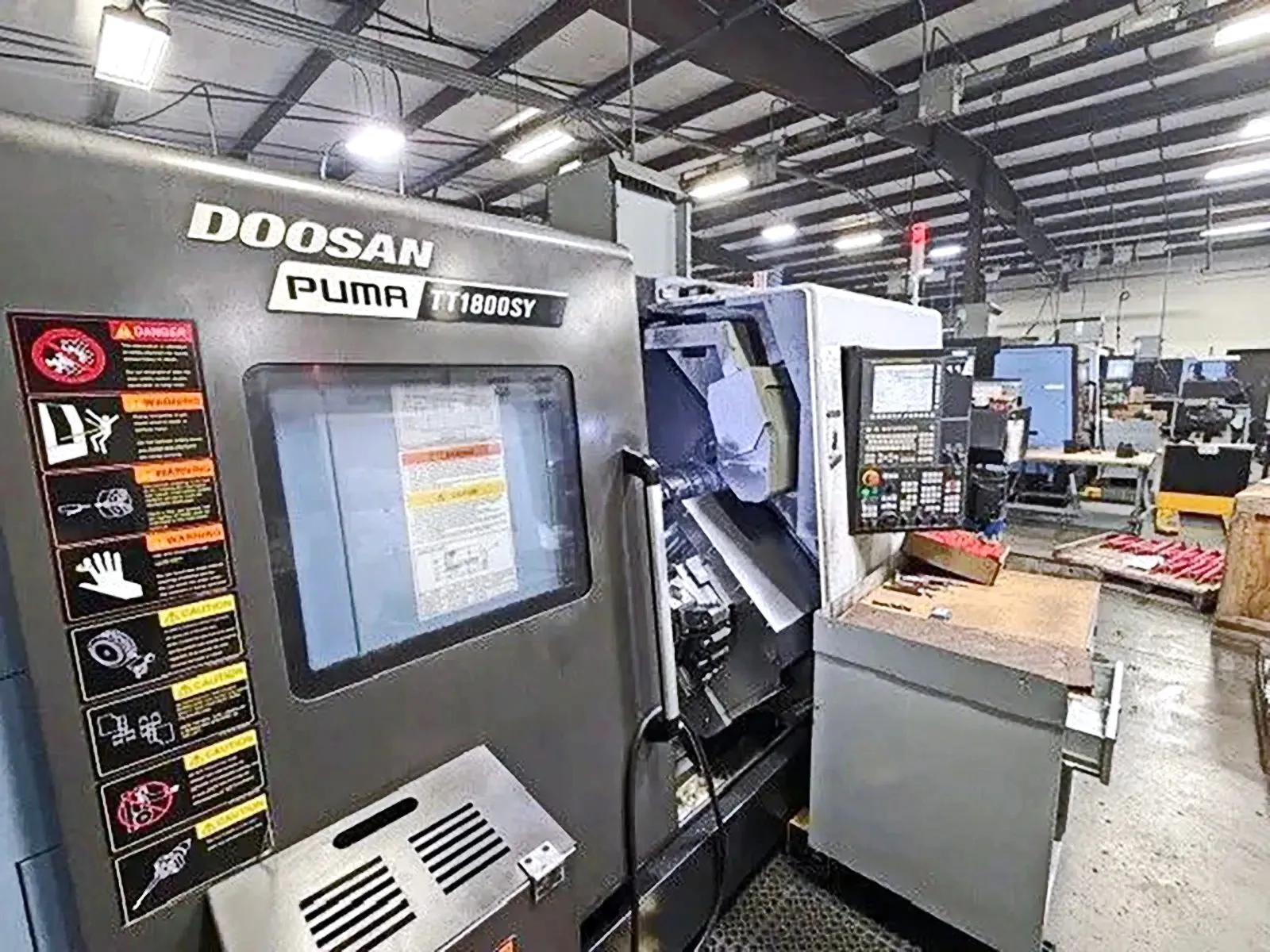

USED 2017 DOOSAN PUMA TT1800SY
Overview
Description
2017 Doosan Puma TT1800SY Multi-Axis Twin Turret CNC Lathe, Sub-Spindle, Y-Axis, Live Tooling, C-Axis, Parts Catcher, Tool Presetter, Chip Conveyor
Specifications
| Max Swing | 9.1" | 231.14 mm |
|---|---|---|
| Recommended Turning Dia | 8.3" | 210.82 mm |
| Max Dia (Upper turret) | 9.1" | 231.14 mm |
| Max Dia (Lower turret) | 9.1" | 231.14 mm |
| Machining Length | 9.1" | 231.14 mm |
| # Axis | 6 | 6 |
| Chuck Size (Main) | 8" | 203.2 mm |
| Chuck Size (Sub) | 8" | 203.2 mm |
| Bar Capacity (Main) | 2.6" | 66.04 mm |
| Bar Capacity (Sub) | 2.6" | 66.04 mm |
| Max Turning Dia | 9" | 228.6 mm |
| Spindle Bore (Main) | 3" | 76.2 mm |
| Spindle Bore (Sub) | 3" | 76.2 mm |
| Power (Main) | 30 hp | 22.4 kW |
| Power (Sub) | 30 hp | 22.4 kW |
| Max RPM (Main) | 5,000 RPM | 5,000 RPM |
| Max RPM (Sub) | 5,000 RPM | 5,000 RPM |
| Max RPM (Live Tooling) | 5,000 RPM | 5,000 RPM |
| X-Axis Travel (Upper/Lower) | 6.5" / 7.5" | 6.5" / 7.5" |
| Z-Axis Travel (Turret 1/Turret 2) | 27.6" / 28.3" | 27.6" / 28.3" |
| A-Axis Travel | 30.3" | 769.62 mm |
| Y-Axis Travel | 3.9" | 99.06 mm |
| C-Axis Rotation | 360° | 360° |
| Spindle Nose (Main) | A2-6 | A2-6 |
| Spindle Nose (Sub) | A2-6 | A2-6 |
| Tailstock | No | No |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Rapid Traverse (X1/X2) | 787.4 in/min. | 787.4 in/min. |
| Rapid Traverse (Z1/Z2) | 574.8 in/min. | 574.8 in/min. |
| Turret Capacity (Upper) | 12 | 12 |
| Turret Capacity (Lower) | 12 | 12 |
| Made In | Korea | Korea |
| Control | CNC (Fanuc 31iTB) | CNC (Fanuc 31iTB) |
| Dimensions | 128.1" X 81.5" X 81.9" | 128.1" X 81.5" X 81.9" |
| Weight | 19,400 lb | 19,400 lb |
Equipped With
Twin turrets
Sub-spindle
Y-axis (upper turret)
Live tooling (5,000 rpm)
C-axis (main/sub)
Parts catcher
Chip conveyor
Automatic tool presetter
Automatic lubrication system
