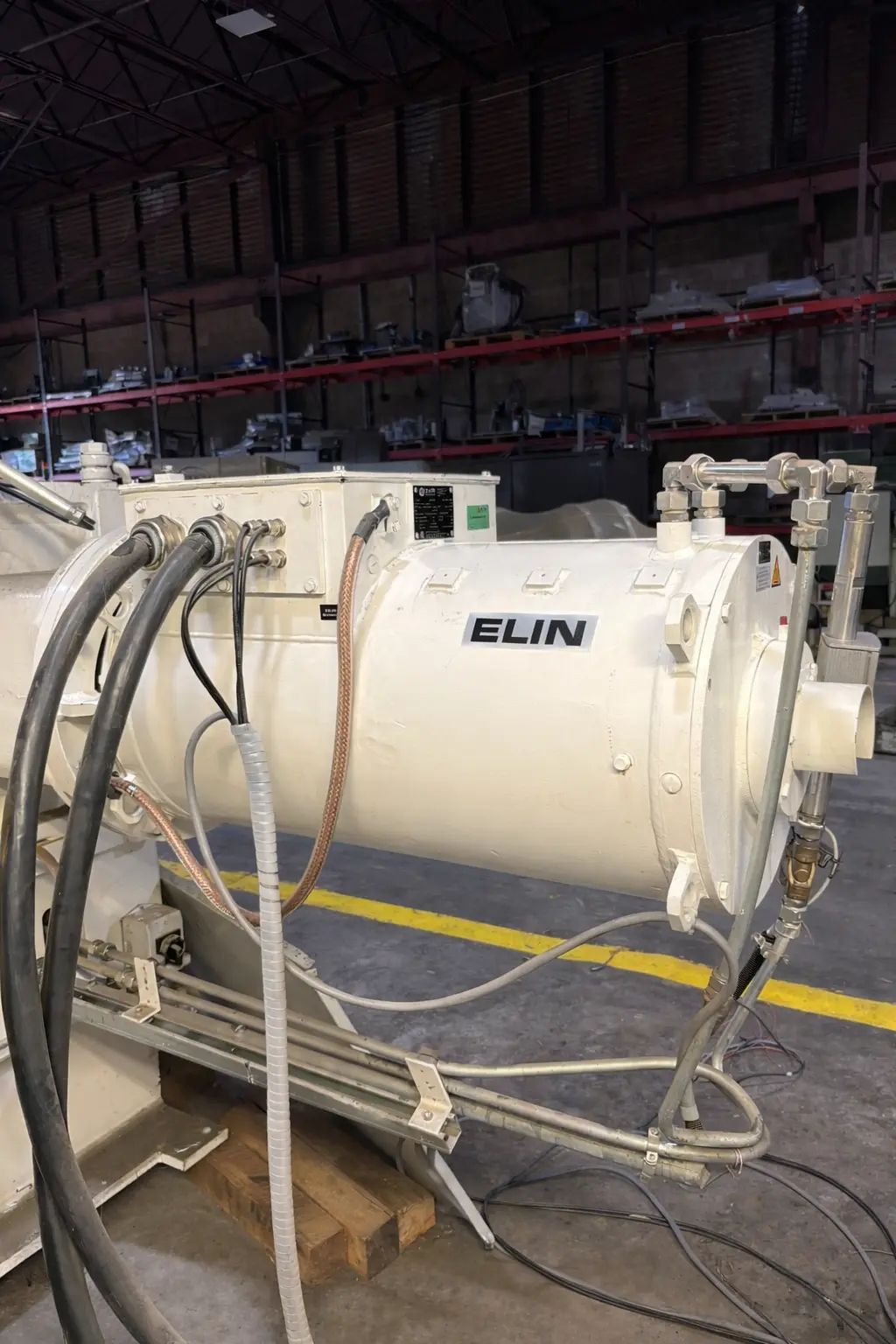

USED ELIN MKH825F04

SPECS
•Manufacturer: ELIN Motoren GmbH (Austria)
•Model: MKH825F04
•Serial Number: 507903 19001
•Type: Industrial 3-Phase Water Cooled AC Electric Motor
•Rated Power: 200 kW / 268 HP
•Voltage: 480V Delta
•Current: 348 A
•Frequency: 51.6 Hz
•Speed: 1534 RPM
•VFD Frequency Range: 51.6–79.2 Hz
•Speed Range: 1534–2350 RPM
•Torque: 1245 Nm
•Cooling Type: TEWC (Totally Enclosed Water Cooled) ≥20 L/min
•Protection Rating: IP55
•Insulation Class: H
•Duty Rating: S1 Continuous Duty
•Power Factor: 0.74
•Maximum Ambient Temperature: 40°C
•Approximate Weight: 910 kg (≈2006 lbs)
•Manufactured by ELIN Motoren GmbH – Preding/Weiz, Austria
•Conforms to UL Standard 1004-1 and CSA Standard C22.2 No.100-14
•Heavy duty industrial motor suitable for extruders, compressors, pumps, and large process equipment
ELIN MKH825F04 motor available, used condition. Ideal for various applications, offering reliable performance from a trusted manufacturer. Contact us for more details on this quality piece of equipment.
