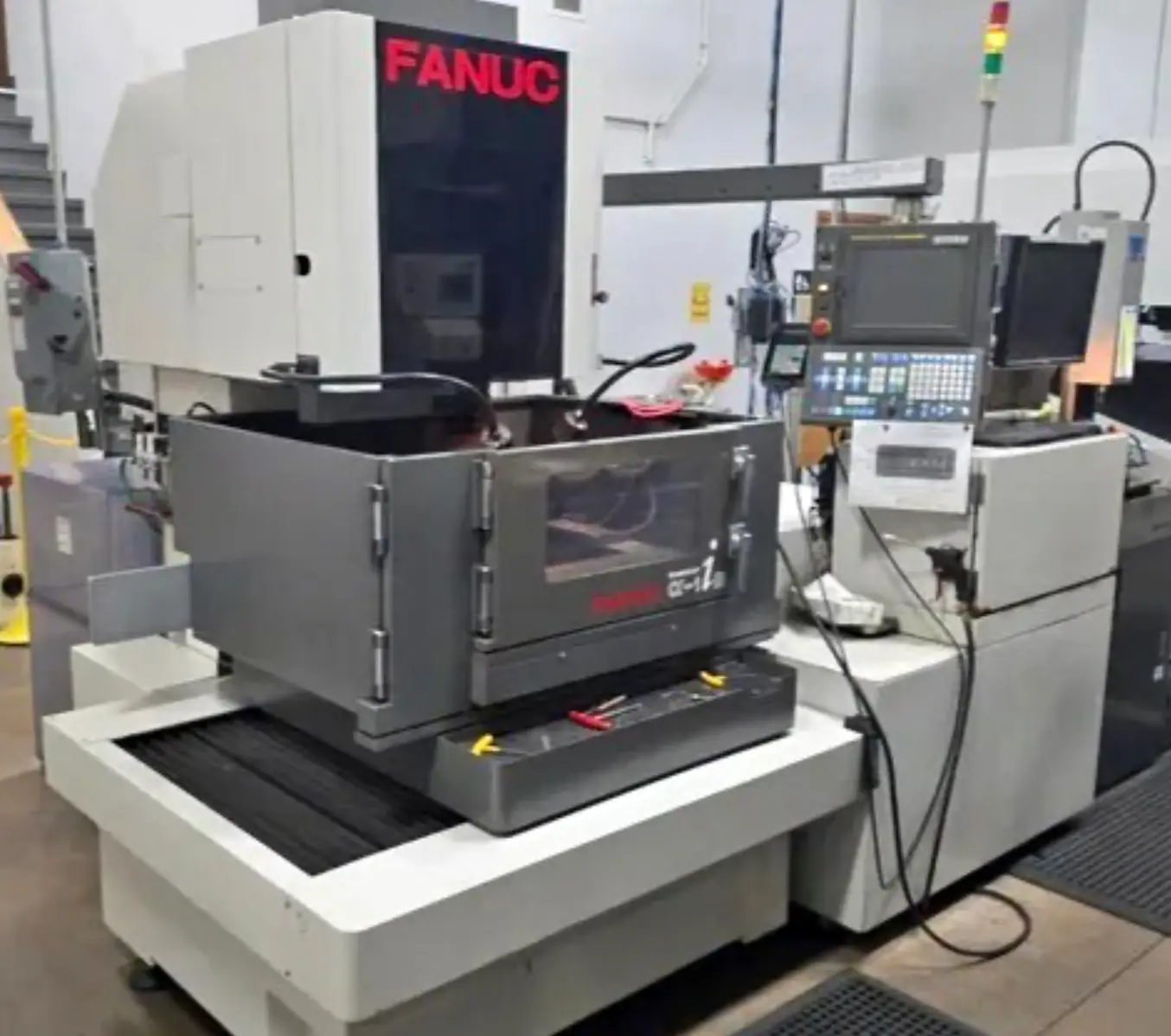

Used Wire EDM for sale. Capable of handling workpieces up to 3,550 lbs. Features include automatic wire threading, submerged cutting, and Fanuc 180is-WB CNC control. Operating on 200-220V, it requires 119” x 103” x 91” floor space.
| X | 40.5" | 1,028.7 mm |
| Y | 28" | 711.2 mm |
| Z | 12.2" | 309.88 mm |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 119” x 103” x 91” | 119” x 103” x 91” |
| Weight | 6,700 lbs | 6,700 lbs |
Maximum Workpiece Dimensions 40.5” x 28” x 12.2”
Maximum Workpiece Weight 3,550 lbs.
Machine Range 21.7” x 14.6” x 12.2”
U/V Travel +/- 2.364”
Resolution .000004”
Wire Diameter .004” - .012” (.010” Guides)
Max. Workpiece AWF Height 12.0”
Wire Spool Capacity 35 lb.
Factory Rated Cutting Speed 31 sq/in/hr.
Floor Space Required 119” x 103” x 91”
Machine Weight 6,700 lbs
Input Power (Total) 200-220, 3 Phase, 13KVA
Automatic Wire Threading, Submerged Cutting, Linear Glass Scale Feed Back, Double door option
AC/DC Anti Electrolysis Power Supply, Fanuc 180is-WB CNC Control, 5 Axis Programmable, Windows OS Interface, Ethernet Interface, Water Chiller, Advanced Pendant, Stainless Steel Work Tank, Wire Alignment Device, MF.
