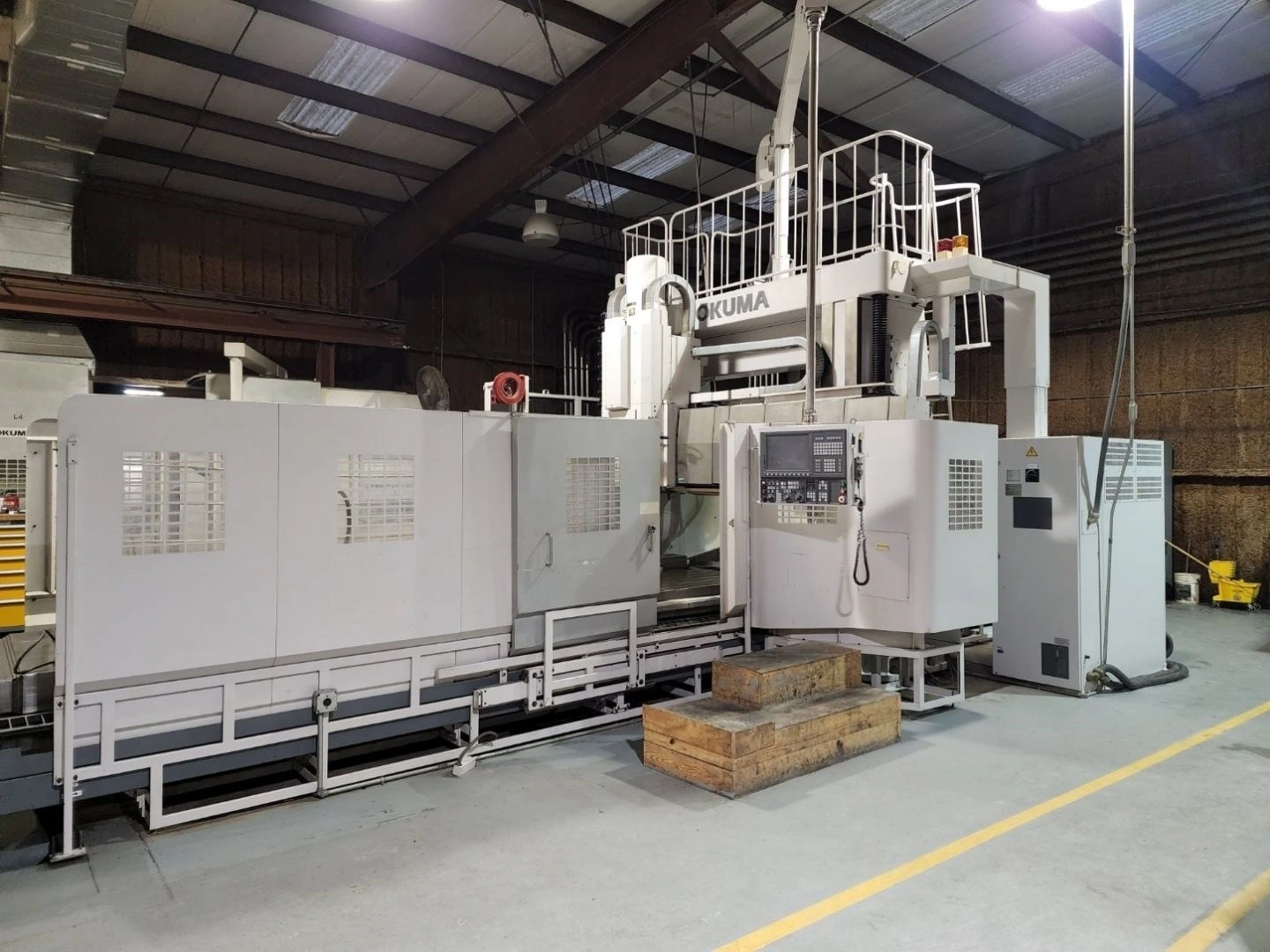

Used Gantry Machining Center. Specs: X 118", Y 78", Z 47". Equipped with OSP P200M control. Power: 30 hp, 6,000 RPM. Table size 60"x162".
| X | 157" | 3,987.8 mm |
| Y | 78" | 1,981.2 mm |
| Z | 47" | 1,193.8 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| Taper | BT-50 | BT-50 |
| Control | CNC (OKUMA) | CNC (OKUMA) |
Width between columns 80”
Travel, X-axis, table 157"
Travel, Y-axis, spindle head 78”
Travel, Z-axis, spindle quill 18”
Dist. from spindle to table, Min-Max 0”—59”
Size of table, width x length 60” x 162”
Cutting federate 0.04” to 393” ipm.
Rapid traverse rate 787” ipm.
Spindle diameter 3.94”
Spindle taper BT 50
Spindle speed range 30 to 6,000 rpm.
Quill diameter 8.27”
Tool stations 72
Tool taper BT-50
Main motor hp.25/30 hp. 30 minute
Machine height 17” (6’ will come off when pendant is removed)
Floor space 40’ Wide x 18’ Long
Machine weight 86,900 lbs.
Control OSP P200M
