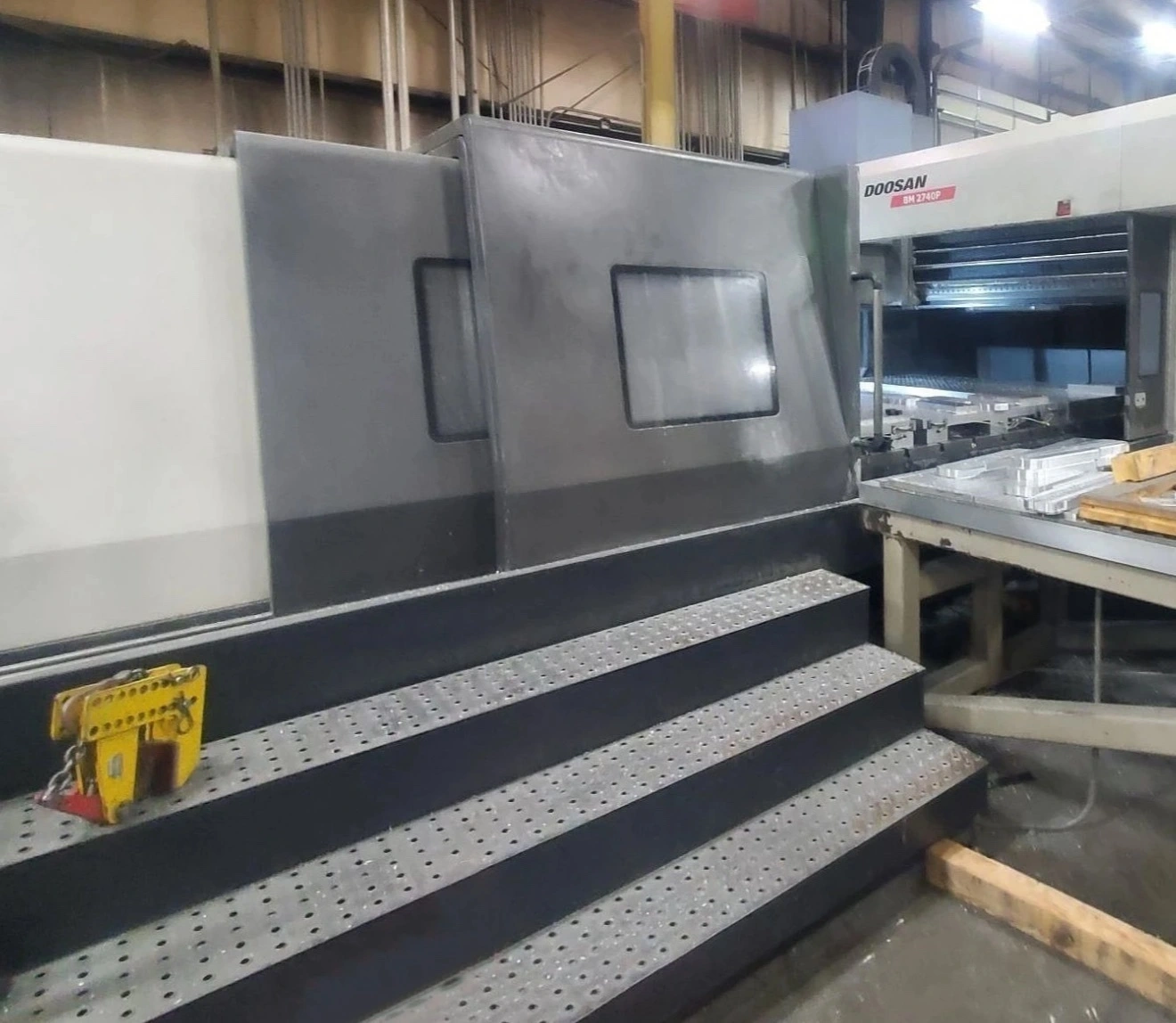

USED 2011 DOOSAN BM 2740P

For sale: DOOSAN BM 2740P Gantry Machining Center, 2011. Features: 157.48" X, 106.3" Y, 19.7" Z-axis. Spindle: 25 kW, 12,000 RPM. Table: 98.4" x 157.5", CNC control. Includes Fanuc 32i-A, spindle chiller, and chip conveyor. Weight: 88,000 lbs.

X AXIS
157.48"
Y AXIS
106.3"
Z AXIS
19.7"
DISTANCE BETWEEN COLUMNS
106.3"
DISTANCE - SPINDLE TO TABLE
22.8" - 3.1"
SPINDLE MOTOR
25 kW
SPINDLE SPEED
12,000 RPM
ATC CAPACITY
40
TAPER
40 Big Plus
TABLE-W
98.4"
TABLE-L
157.5"
MAX TABLE WEIGHT
6613 lb
CONTROL
CNC
DIMENSIONS
430"L x 204"W x 148"H
WEIGHT
88000 Lbs

Fanuc Series 32i-Model A
Spindle Chiller
Coolant Thru Spindle
LNS Turbo MF2 Chip Conveyor
