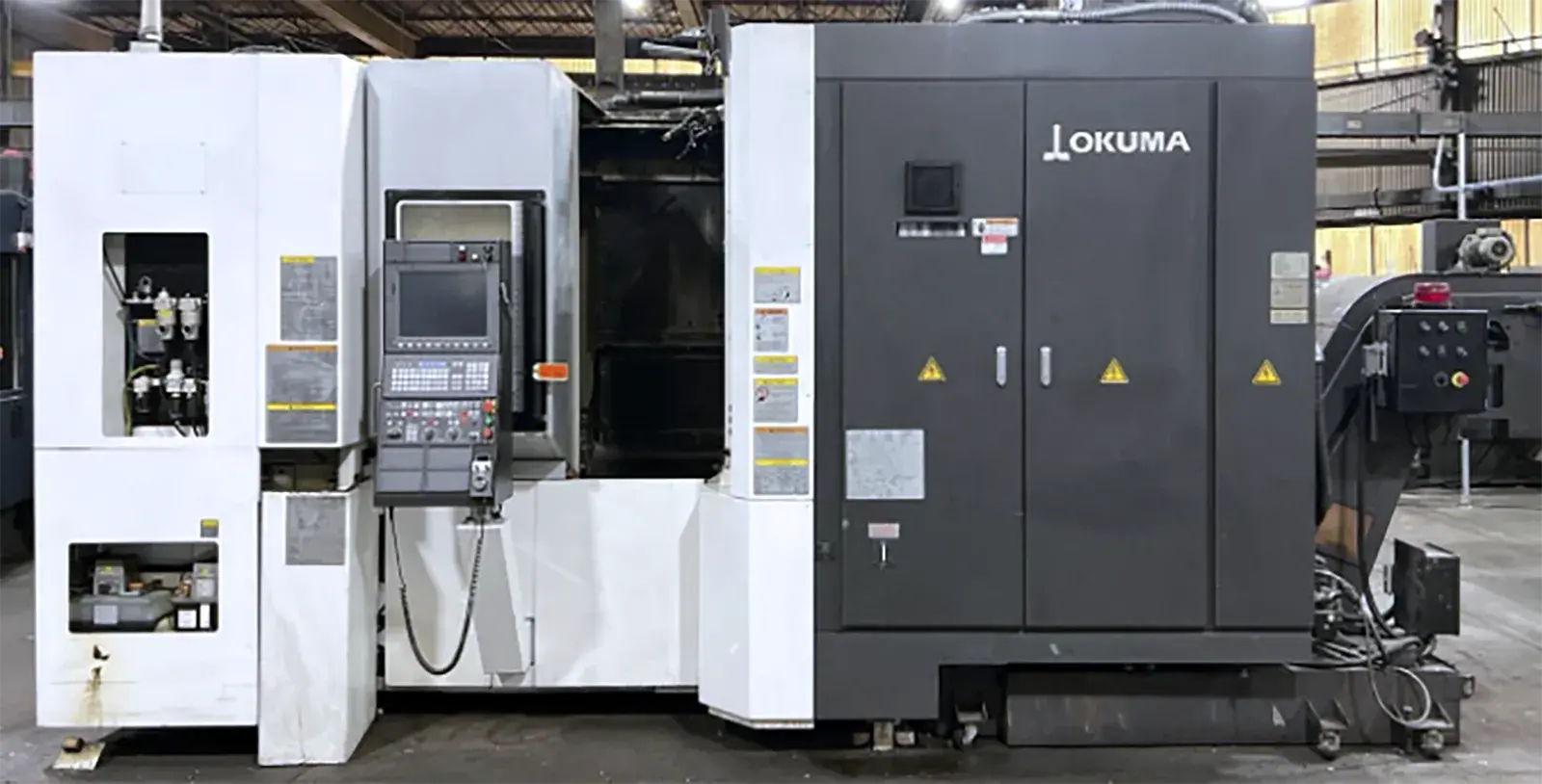

2018 OKUMA MB-5000H Horizontal Machining Center: 34 hp, 15,000 RPM, 4-axis, 60-tool ATC, Okuma OSP-P300MA Control, high-pressure and thru-spindle coolant, rigid tapping, LNS chip conveyor. X/Y/Z: 29.92".
| X | 29.92" | 759.97 mm |
| Y | 29.92" | 759.97 mm |
| Z | 29.92" | 759.97 mm |
| Power | 34 hp | 25.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | 40 | 40 |
| Pallet-W | 19.69" | 500.13 mm |
| Pallet-L | 19.69" | 500.13 mm |
| # Axis | 4 | 4 |
| Control | CNC (OKUMA) | CNC (OKUMA) |
ATC 60-Tool
Okuma OSP-P300MA Control
MP Systems AT-RF High Pressure Coolant System
Thru Spindle Coolant
Rigid Tapping
LNS Chip Conveyor
