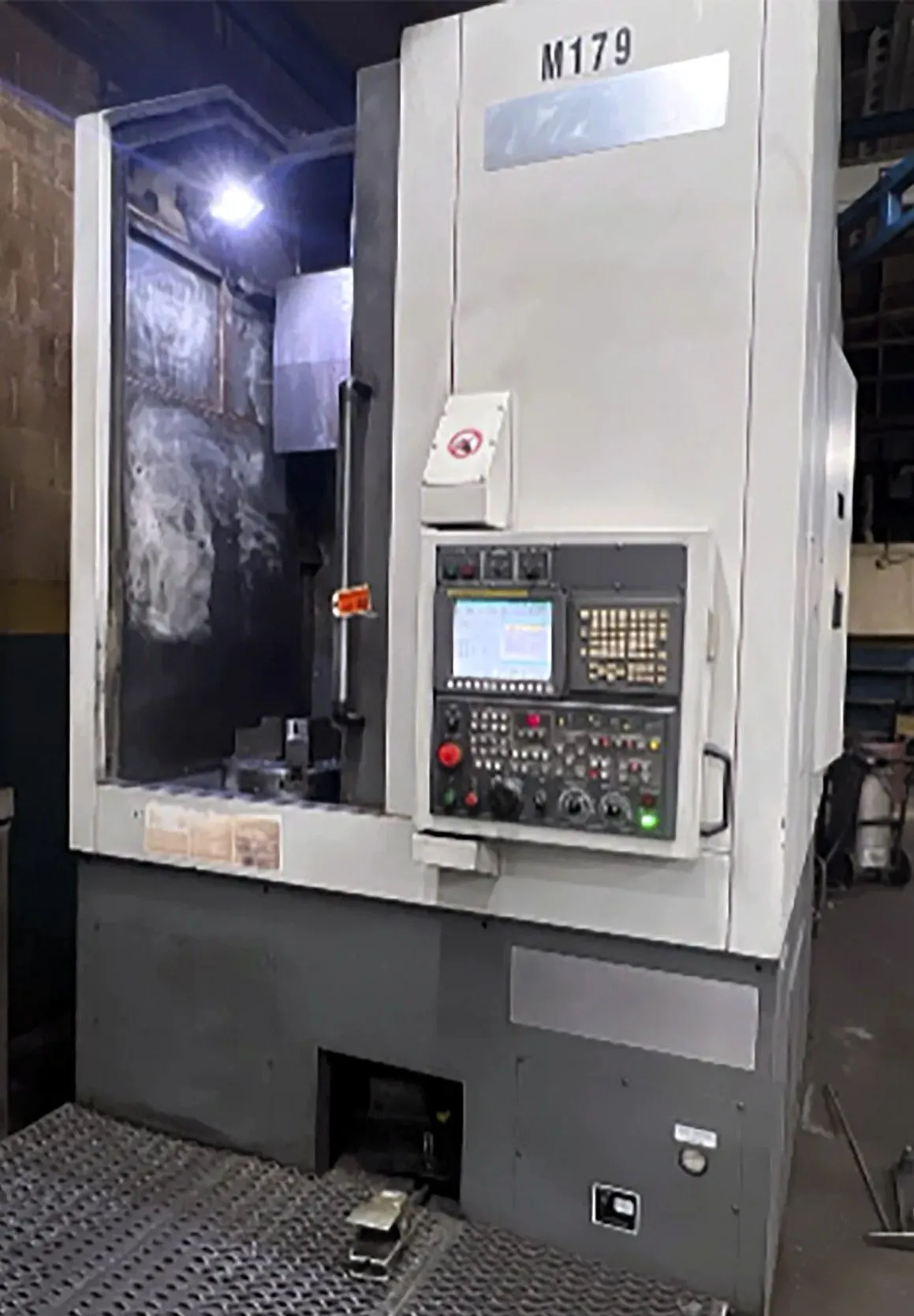

SAMSUNG SLV 80 Vertical Turret Lathe, New in 2011.
35" Swing.
Fanuc Oi-TD Control.
Chip Conveyor.
Coolant Tank & Amp Pump.
| Swing | 35" | 889 mm |
| Machining Length | 31.5" | 800.1 mm |
| Chuck Size | 18" | 457.2 mm |
| Power | 50 hp | 37.3 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 31.9" | 810.26 mm |
| Control | CNC (Fanuc Oi-TD) | CNC (Fanuc Oi-TD) |
| Dimensions | 77" x 88" x 134" | 77" x 88" x 134" |
| Weight | 24,250 lbs | 24,250 lbs |
General Specifications:
Chuck:
Samchully HC-18D 18” 3-Jaw
Swing:
35”
Maximum Turning Diameter:
32.68”
Maximum Turning Length:
31.5”
Travels:
16.9” X-Travel, 31.5” Z-Travel
Turret:
12-Position
Spindle:
2,000-RPM Standard Spindle
Fanuc Series Oi-TD control
Chip Conveyor
Coolant Tank & Pump
