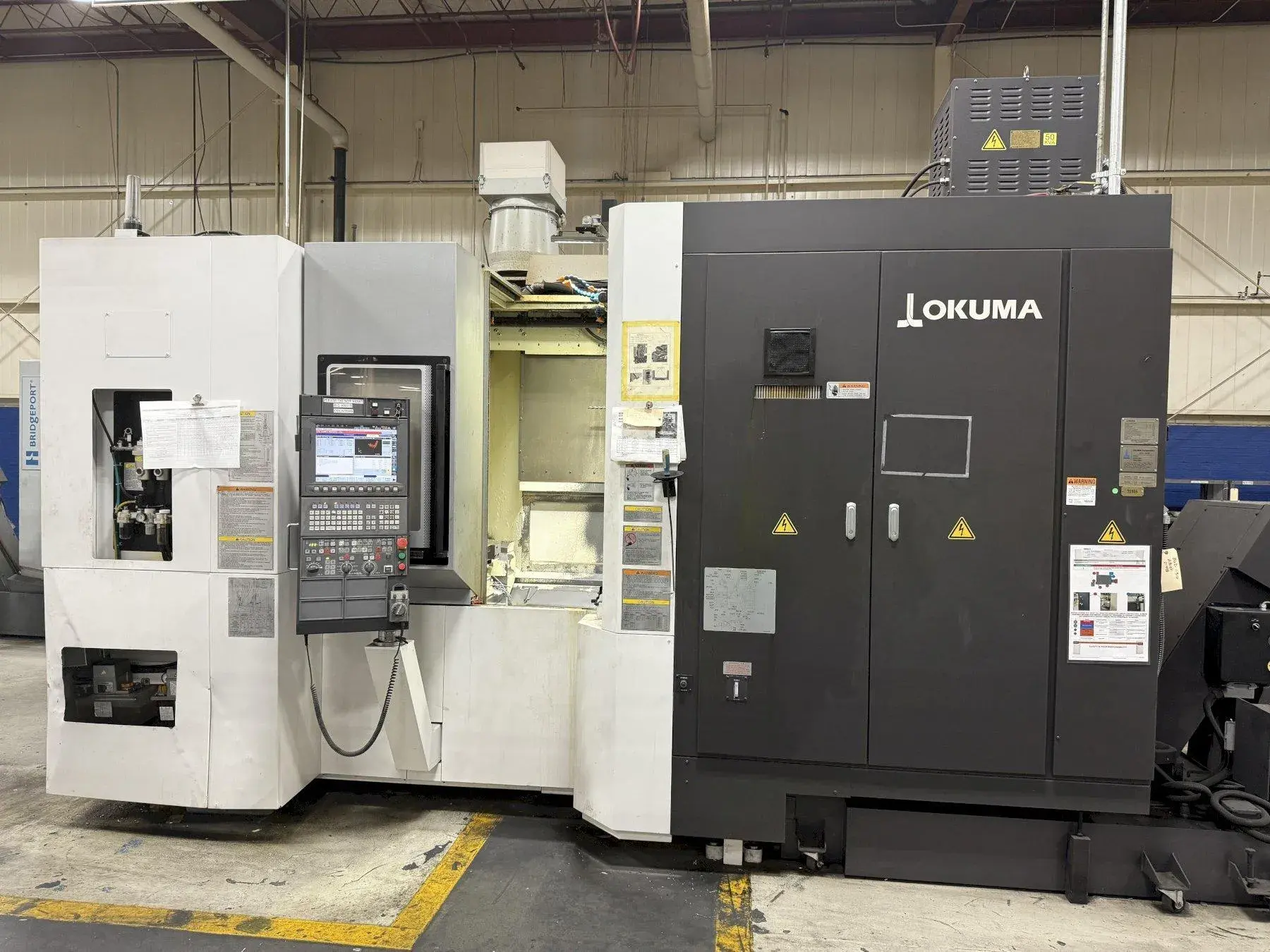

Used Horizontal machining center featuring 29.9" XYZ travel, CAT 40 spindle taper, and 15,000 rpm speed. Equipped with OSP-P300MA CNC, high-pressure through spindle coolant, and chip conveyor.
| X | 29.92" | 759.97 mm |
| Y | 29.92" | 759.97 mm |
| Z | 29.92" | 759.97 mm |
| Power | 34 hp | 25.4 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 48 | 48 |
| Taper | #40 | #40 |
| Pallet-W | 19.69" | 500.13 mm |
| Pallet-L | 19.69" | 500.13 mm |
| # Axis | 4 | 4 |
| Control | CNC (OKUMA) | CNC (OKUMA) |
| Dimensions | 182" x 103" x 114" | 182" x 103" x 114" |
| Weight | 27,500 pounds | 27,500 pounds |
Pallet Length 19.7"
Pallet Width 19.7"
Pallet Load Capacity 1,100 pounds
Pallet Indexing (B-Axis)0.001°
X-Axis Travel 29.9"
Y-Axis Travel 29.9"
Z-Axis Travel 29.9"
Rapid Traverse Rate (X/Y/Z)2,362 ipm
Spindle Taper CAT 40
Spindle Speed 15,000 rpm
Spindle Motor (HP)40 hp
Tool Changer Capacity 64
Machine Dimensions 182" x 103" x 114"
Machine Weight 27,500 pounds
- OSP-P300MA CNC Control
- MP Systems R-Series High Pressure Coolant Unit
- Hi Pressure Coolant Thru Spindle
- Chip Conveyor
- Coolant Tank & Pumps
- Full B Axis Indexing - 0.001°
- Hydraulic Clamping System
