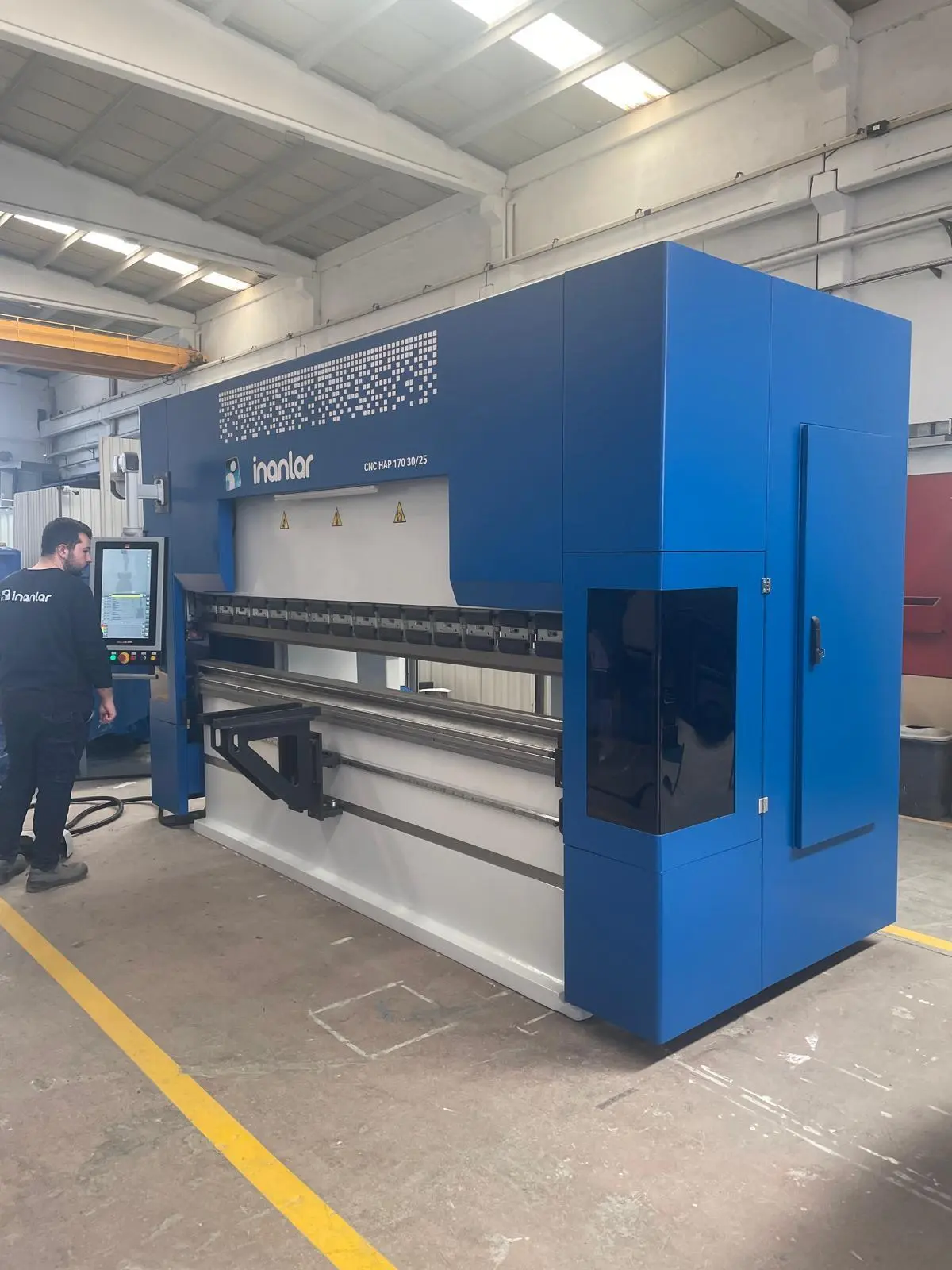

NEW 2026 INANLAR 300-3700 PB

2026 INANLAR (Turkish) 300-3700 6 Axis (Y1,Y2,X,R,Z1,Z2) Hydraulic Press Brake
ABOUT US
As Livamak(Livamach), we manufacture Press Brakes, Guillotine Shears and all kinds of Hydraulic Presses in our factory, which we established with 100% domestic capital initiative under the name of Hack Machine in Konya. Although we have been in the manufacturing sector for about 20 years, we reflect our experience in both machinery manufacturing and technical requirements to the products in our production.
In addition, as Livamak, we have been continuing our activities in sales, marketing and supply of machinery and equipment in Kocaeli for many years. For this purpose, we have taken our commercial activities that we have been continuing for years one step further and started to market and sell the products of our commercial partners with whom we work in Turkey, Europe and the Far East with our Livamak brand.

For this purpose, we have offered the machines of our suppliers, whose quality we trust, to the service of our customers with an OEM sales policy. While doing these operations here, we aimed to gather all the machines needed by our customers at the most affordable prices under the same roof, rather than just selling with OEM logic. As it is known, procurement is a very serious process and it is a process that needs to be followed and controlled in the best way. In addition, dealing with dozens of suppliers one by one is both a really tiring and very risky process. Here, we take all this burden off your shoulders and carry out machine model determination, order process, manufacturing stage follow-up, quality control, payment facilities and reliable delivery of machinery and equipment for you, and we do all this under one roof.
Based in Kocaeli, Turkey, Livamak (Livamach) specializes in the sales, marketing, and supply of industrial machinery, including CNC, sheet metal processing, and welding solutions. Leveraging long-term trading experience, the company partners with manufacturers in Turkey, Europe, and the Far East to provide high-precision, automated equipment, while prioritizing environmental responsibility.

TECHNICAL SPECIFICATION

1. Core Specifications
• Nominal Pressure 3000 KN 337.21 US Tons
• Bending Width 3750 mm 147"
• Working Table Height 900 mm 35.43"
• Distance Between Uprights 3250 mm 127.9"
• Throat Depth 410 mm 16.14"
• Maximum Daylight 650 mm 25.6"
• Stroke 375 mm 14.76"
• Table Width 200 mm 7.87"

2. Machine Dimensions
• Machine Length: 4350 mm 171.26"
• Machine Width: 2450 mm 96.46"
• Machine Height: 3150 mm 124.0

3. Speed Specifications
• Rapid Speed 140 mm/sec 5.51"
• Return Speed 150 mm/sec 5.91"
• Bending Speed 11 mm/sec 0.43"

4. Backgauge & Accuracy
• Backgauge (X-Axis) Stroke 750 mm 29.53
• Max Operating Speed (X-Axis) 500 mm/sec 19.69"
• X-Axis Position Accuracy ±0.05 mm 0.002"
• X-Axis Repositioning Accuracy ±0.02 mm 0.0079"
• Y-Axis Position Accuracy ±0.02 mm 0.0079"
• Y-Axis Repositioning Accuracy ±0.01 mm 0.0039"
• R-Axis Stroke 250 mm 9.84"
• R-Axis Operating Speed 300 mm/sec 11.81"
• Working Accuracy (Length) ±0.02 mm 0.0079"
• Working Accuracy (Angle) ±0.05°

5. CNC Control System
• STEP AUTOMATION PX15 6 Axis, 15” CRT
Control w/ 2D Graphic Touch Screen Y1,Y2,X,R
• Portable Operator Control Panel YES

6. Hydraulic & Electrical System
• Hydraulic System and Valves – Hawe/Hoerbiger – Bosch Rexroth YES
• Hydraulic Pump – Hawe/Hoerbiger – Bosch Rexroth
Oil Capacity 400 Lt
• IP66 Class Electrical Panel (600 V 50 Hz Electricity )
Motor Power 30 kW

7. Tooling & Clamping System
• H150 Promecam upper tool holder (FastClamping System)
• 1281 Euro Stamp Top Tool (85°) (1Piece Segmented)
• 2067 Eurostamp 4 V Channel Bottom Tool (16-22-35-50) (1Piece Segmented) YES
• 2026 Eurostamp Single channel Bottom Tool(120 mm) YES

8. Mechanical & Safety Features
• Servo Motorized Backgauge (X1,X2,R,Z1,Z2Axis)
• Motorized CNC Crowning (C-Axis)
• Foot Pedal with Emergency Stop YES
• Side Guards with Safety Switch YES
• Front Support Sliding System (4 pcs) YES
• DSP Laser 5-Point Front Safety Guard YES
• Rear Safety Barrier (900MM) YES
• Monoblock Body YES
• Honed and Hardened Chromed Hydraulic Cylinders YES
• Side Doors with Safety Switch YES
• Linear Encoder YES

CNC LIVA 300-3700 6 Axis (Y1,Y2,X,R,Z1,Z2) Hydraulic Press Brake
Bending Capacity (42kgf/mm): 12 mm
Bending Capacity (70kgf/mm): 6 mm
Motorized Crowning
Monoblock Welded Steel Frame
H150 Promecam upper tool holder (Fast Clamping System)
Servo Motorized Backgauge (X,R,Z1,Z2 Axis)
Inch and Metric System
Honed and Chrome Plated Cylinders
Foot Pedal with Emergency stop
Side Guards with Switch
DSP Laser 5 Point Rear Safety Barrier (900MM)
Rexroth oder Hoerbiger Hydraulic System and Pomp
Front Support Sliding System (2 pcs)
Electrical components from Schneider, Siemens, Delta, ABB, Omron
600 V 50 Hz Electricity
RAL 7035, RAL 5015 Colours
English Manual+English Label

• Wilson / Wila Top Mecanical Clamping OPTİONAL (14.000$)
• Wilson / Wila Top Pneumatic Clamping OPTİONAL (18.500$)
• Wilson / Wila Top Hydraulic Clamping OPTİONAL (23.000$)
• Wila Stamp BIU 002 Top Tool (80°) OPTİONAL TOP 1 PIECE
SEGMENTED (11.500$)
• Inch & Metric System Compatibility YES
