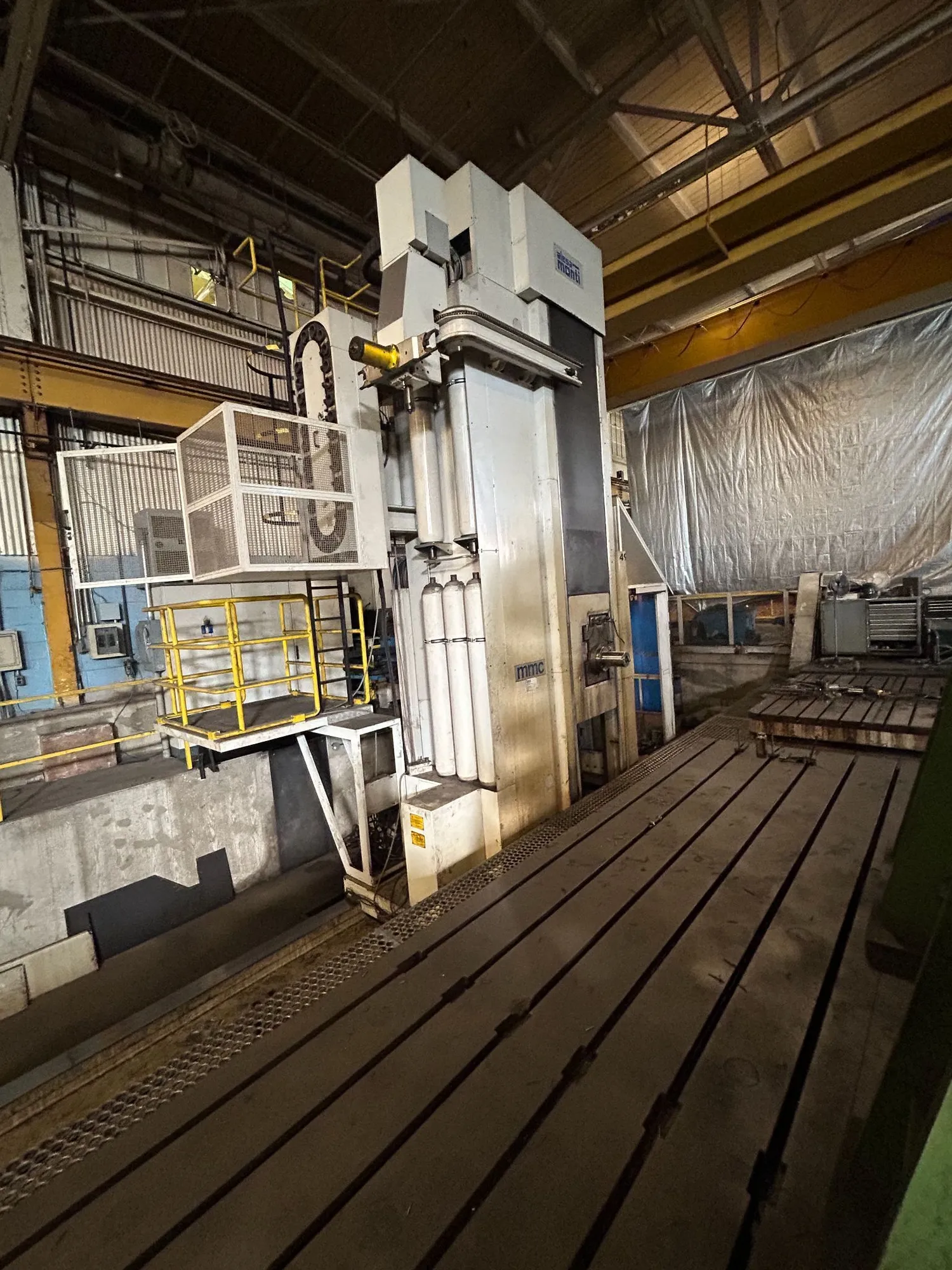

ALESA MONTI MMC TG35 CNC Floor Type HBM, 2010, 5.12" Spindle, 492" X travel, 138" Y travel, 84" Ram+ Spindle Travel, 50 hp power, and 2,000 RPM,100" x 118" Full 4th Axis Rotary Table
| Spindle Size | 5.12" | 130.05 mm |
| X-Horiz Tvl of Col | 492" | 12,497 mm |
| Y-Vert Tvl of Head | 138" | 3,505.2 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Table-W | 100" | 2,540 mm |
| Table-L | 118" | 2,997.2 mm |
| Z-Spdl Tvl | 84" | 2,133.6 mm |
| Control | CNC (Heidenhain i530) | CNC (Heidenhain i530) |
30 Position Tool changer, universal Right angle Milling head
