USED 2020 Chevalier FSG-618M, 2020, FAGOR 2X DRO, EMC
Overview
Description

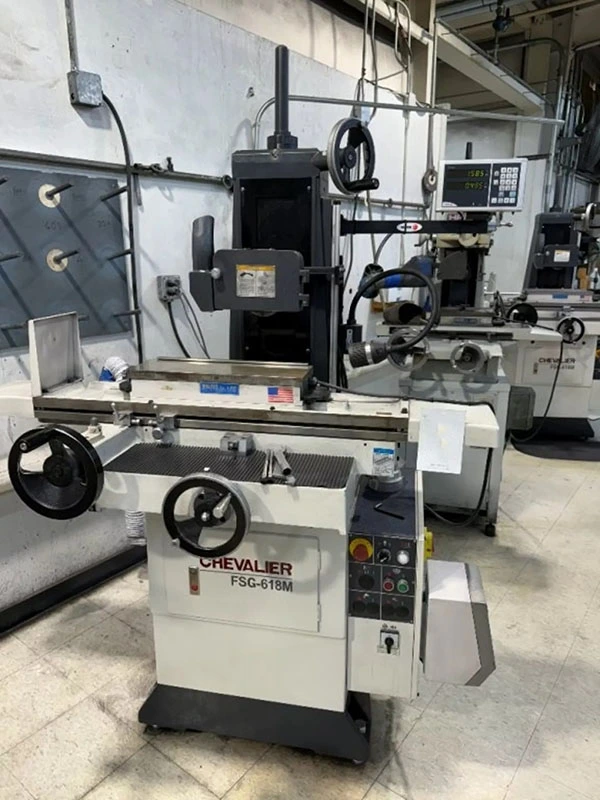

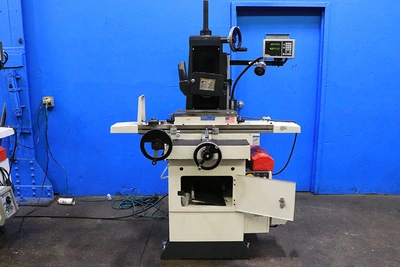

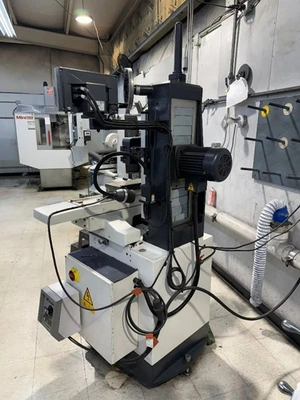

6" Width 18" Length Chevalier FSG-618M, 2020, FAGOR 2X DRO, EMC SURFACE GRINDER
Specifications
6" x 18" Chevailer Hand Feed Surface Grinder
with Roller Bearing Table
** Equipped With "Fagor" "Innova" 2X DRO **

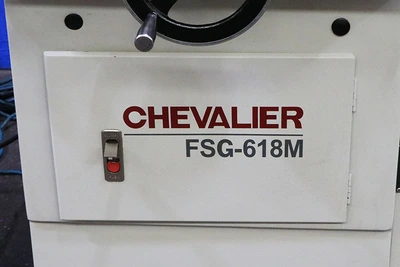

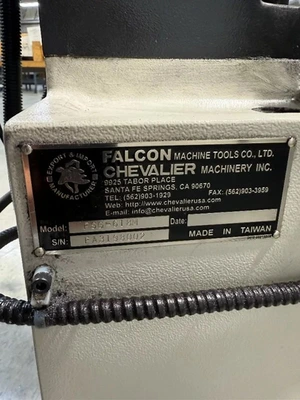

Model: FSG-618M S/N: FA3198002 New: 2020
Specifications:
Maximum grinding length:............... 18"
Maximum grinding width:................ 6"
Maximum table travel,
longitudinal: ........................ 19"
cross: ............................... 7"
Maximum distance from table
working surface to spindle center .... 18"
Cross handwheel graduations: .......... 0.0005"
Cross handwheel per rev. .............. 0.100"
Downfeed handwheel graduations ........ 0.0001"
Vertical handwheel per rev. ........... 0.050"
Spindle speed:......................... 3,450 RPM
Wheel size:...................... 8" x 1/2"W x 1-1/4"B
Approximate weight: ................... 1,500 lbs
Approximate Dimensions: ......... 41"W x 47"D x 76"H
Machine Features:
All meehanite cast iron construction
Hardened and ground table guideways with steel balls
Double V Guideways laminated with Turcite-B
for saddle travel
Automatic lubrication of leadscrews and ways
2 HP 3/60/230-460 volt spindle motor
Equipped with:

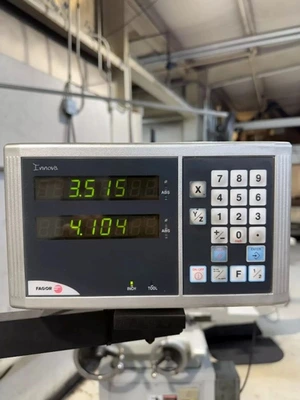

"Fagor" "Innova" 2-Axis Digital Readout
Wheel Cover, with Dust Inlet

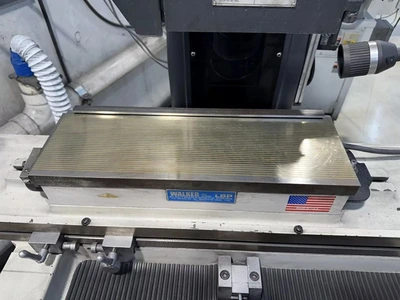

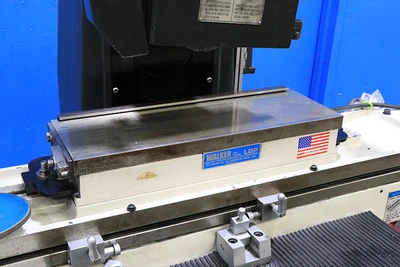

"O.S. Walker" "LBP" Fine-Division
Electro-Magnetic Chuck

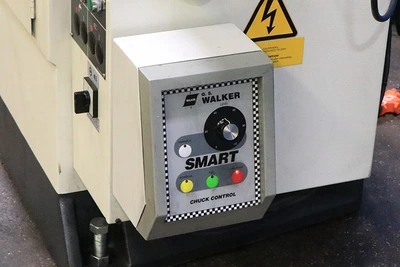

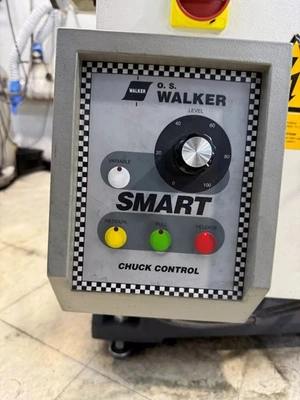

O.S. Walker "Smart Series" Variable Hold Neutrofier
Chuck Control
LINK TO VIDEO: https://youtu.be/_WdjESu8URM?si=0uQTp1SKb93ihyEy
** "Like New" Condition & Appearance (Original Paint) **
** Inspect Under Power in our Harrison, NJ Warehouse **
FOR MORE INFORMATION: Call Andy at 973-497-7600
