USED 2020 Chevalier FSG-618M, 2020, FAGOR INNOVA 2X DRO, EMC

6" Width 18" Length Chevalier FSG-618M, 2020, FAGOR INNOVA 2X DRO, EMC SURFACE GRINDER

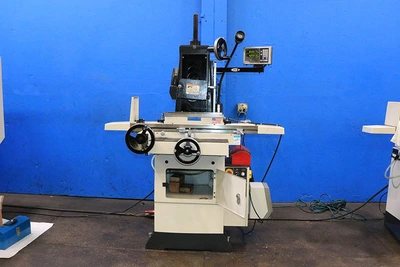

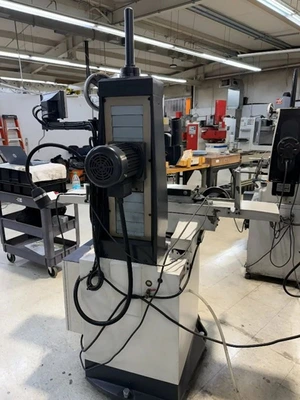

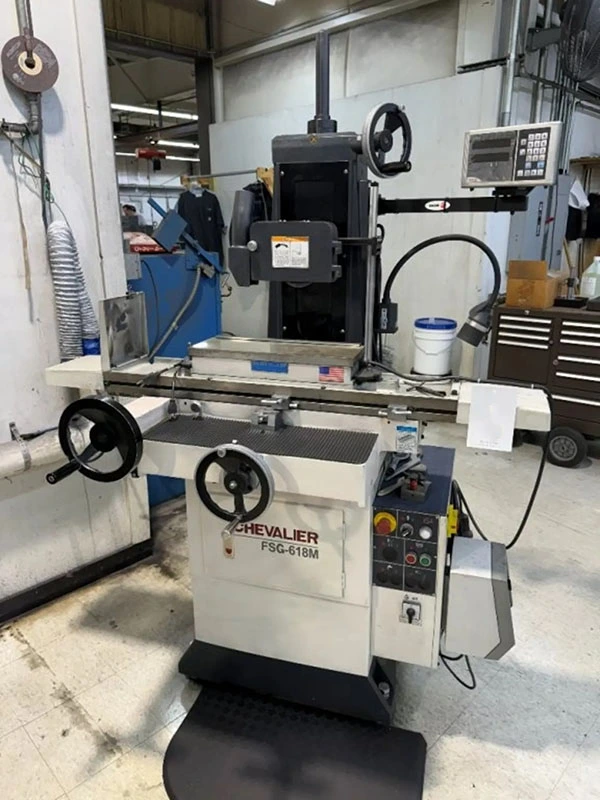

  6" x 18" Chevailer Hand Feed Surface Grinder

        with Roller Bearing Table

** Equipped With "Fagor" "Innova" 2X DRO **

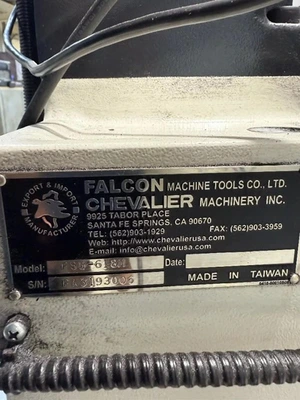

Model: FSG-618M     S/N: FA3193006     New: 2020

Specifications:

Maximum grinding length:............... 18"

Maximum grinding width:................ 6"

Maximum table travel,

 longitudinal: ........................ 19"

 cross: ............................... 7"

Maximum distance from table

 working surface to spindle center .... 18"

Cross handwheel graduations: .......... 0.0005"

Cross handwheel per rev. .............. 0.100"

Downfeed handwheel graduations ........ 0.0001"

Vertical handwheel per rev. ........... 0.050"

Spindle speed:......................... 3,450 RPM

Wheel size:...................... 8" x 1/2"W x 1-1/4"B

Approximate weight: ................... 1,500 lbs

Approximate Dimensions: ......... 41"W x 47"D x 76"H

Machine Features:

All meehanite cast iron construction

Hardened and ground table guideways with steel balls

Double V Guideways laminated with Turcite-B

  for saddle travel

Automatic lubrication of leadscrews and ways

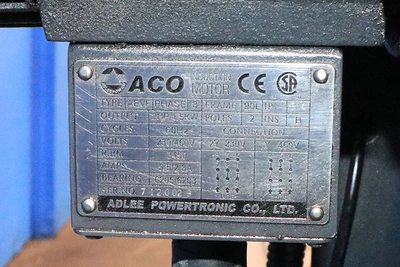

2 HP 3/60/230-460 volt spindle motor

Equipped with:

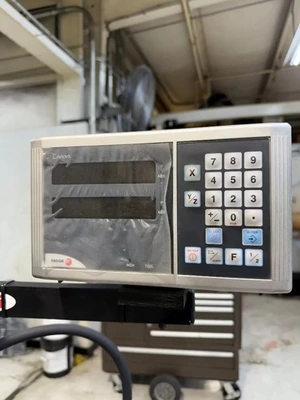

"Fagor" "Innova" 2-Axis Digital Readout

Wheel Cover, with Dust Inlet

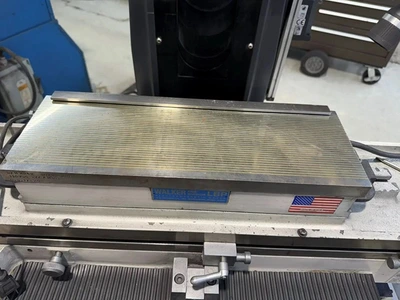

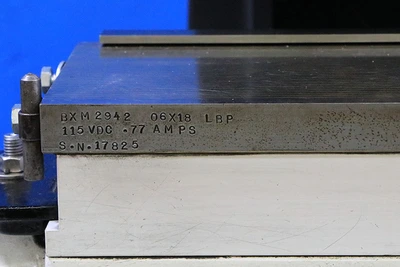

"O.S. Walker" "LBP" Fine-Division

  Electro-Magnetic Chuck

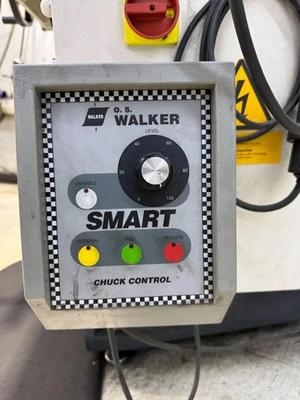

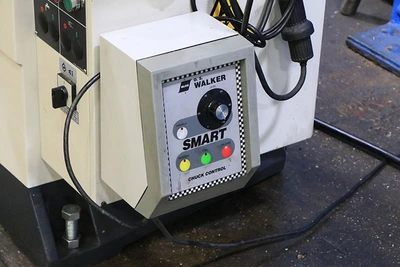

O.S. Walker "Smart Series" Variable Hold Neutrofier

  Chuck Control

LINK TO VIDEO:  https://youtu.be/EFJ16bAC8Hw?si=JB14g2BpGul_6xwy

** "Like New" Condition & Appearance (Original Paint) **

** Inspect Under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
