USED 2017 Okamoto IGM-2MB, 2017, FANUC MDI CONTROL,

24" Swing 8" Stroke Okamoto IGM-2MB, 2017, FANUC MDI CONTROL, ID GRINDER, AUTO CYCLE

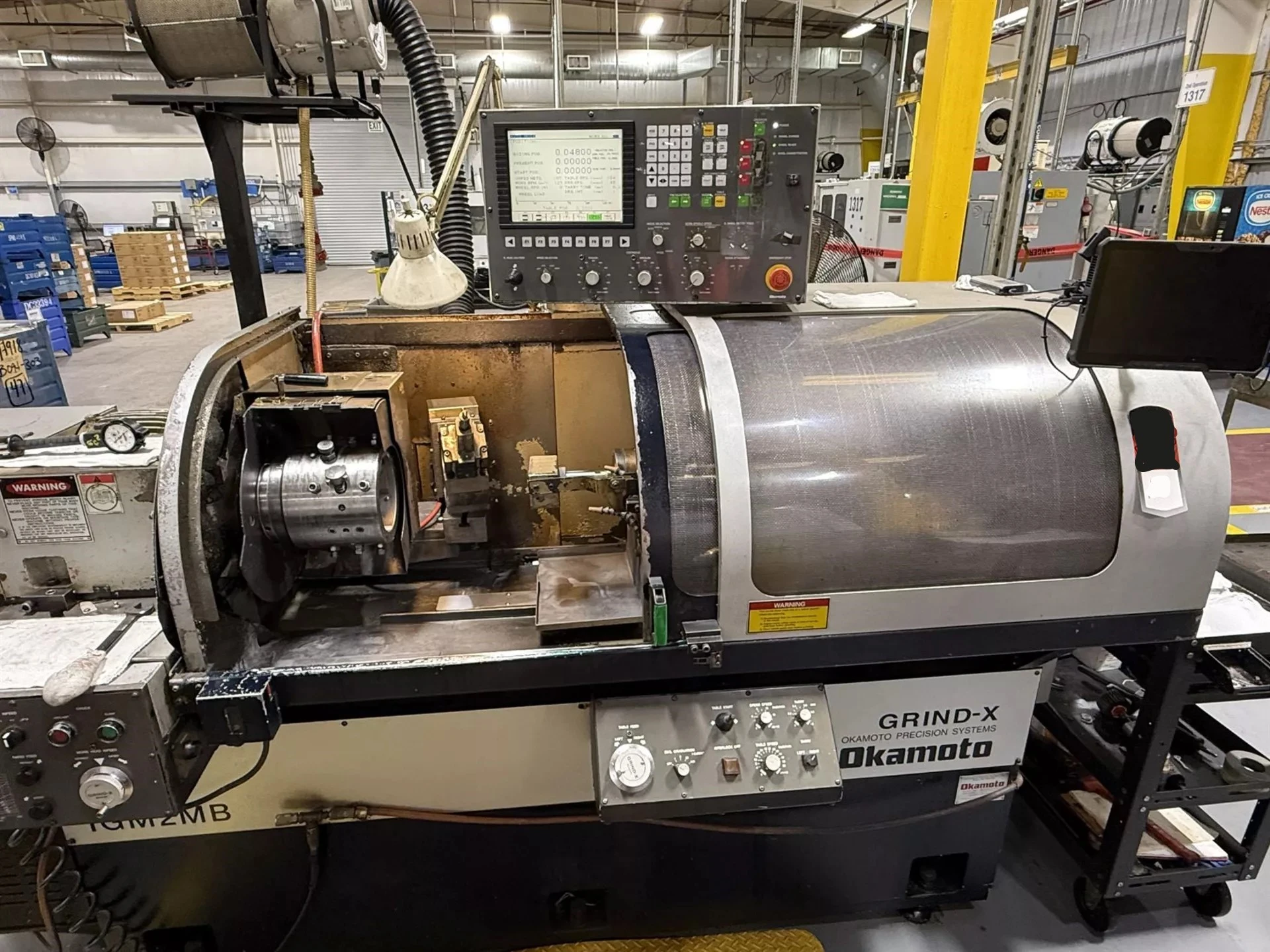

Okamoto IGM-2MB Precision

 I.D. Grinder, with Fanuc

 Programmable MDI Control

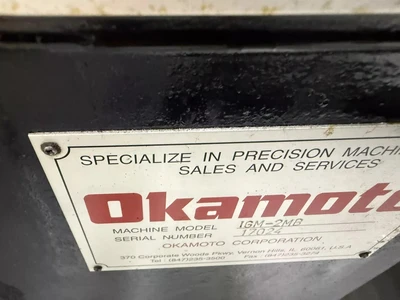

Serial Number 17024    New 2017

CATALOG SPECIFICATIONS:

Swing Over the Table 24"

Table Maximum Travel 20"

I.D. Grinding Range 0.24" - 8.0" Diameter

Grinding Stroke 0.00 - 8"

Swing Inside the Chuck Cover 14"

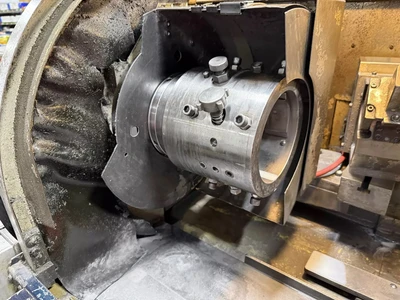

Workhead:

Spindle Speed 50 - 850 RPM

Swivel Angle -5 - +15 Degrees

Maximum Crossfeed Travel 9.4"

Motors:

Work head 2.0 H.P.

Grinding Wheel Spindle 5.0 H.P.

Floor Space: (L x W x H): 96 “x 54” x 69”

Net Weight: 6,160 lbs.

Machine Features:

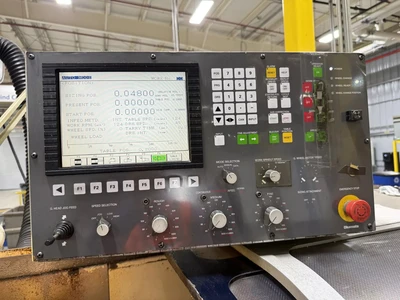

Fanuc MDI Control ... Facilitate Set-Up

 & Editing Functions, High Speed Table

 Shortens Positioning Cycle Time and

 High Speed Table Reciprocation Reduces

 Grinding Cycle Time.

User friendly control with conversational

 software. Teach function allows easy

 set-up of grinding processes. The MDI

 Controller is made by Okamoto and uses

 a unique Micro Processor control system

 that promotes Fast Easy Set-Up. Rough,

 Medium Grind, Dress and Fine Grind in

 one set-up.

Least Programmable Increment 0.00001"

36 program storage capacity.

Programmable Auto Grinding Cycle

Size Compensation

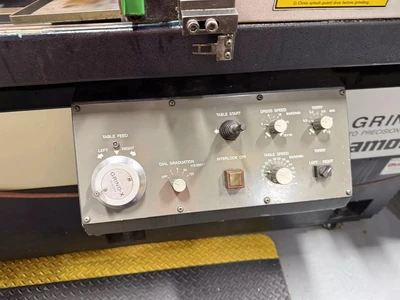

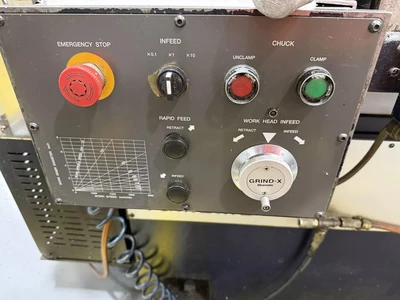

Wheelhead, Table and Speed Setting Dials

Continuous/Intermittent Feed

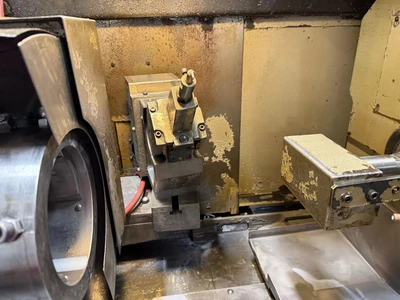

Repeat Dress, Interrupted Dressing

 and Dressing Selection

The linear slide and ball screw table

 motion delivers high-speed table

 movement speed up to 800 ipm.

Rigid construction. Superb Accuracy.

EQUIPPED WITH:

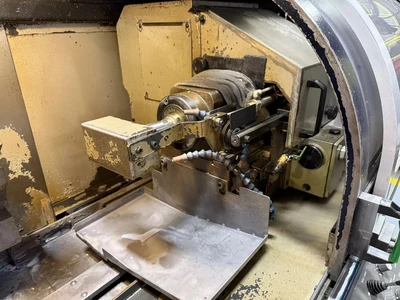

Okamoto I.D. Grinding Spindle,

 10,000 RPM.  Has a 2" Diameter,

 2.5" Length, Grinding Wheel

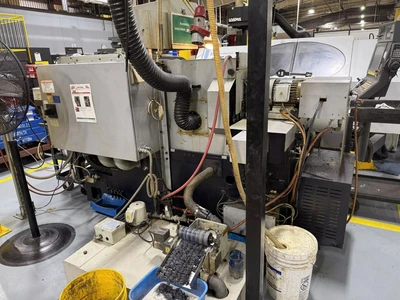

Mist Collector

Coolant System with Magnetic Separator

Wired for 3/60/220 Volts

Please Note:

The Set-Up on the Workhead is not going

 with the Machine.

** Purchased from a Dow 30 Company **

** Superior Condition, Original Paint **

** Inspect Under Power in our Harrison, NJ Warehouse **

FOR MORE INFORMATION: Call Andy at 973-497-7600
