USED 2011 Mitsubishi PD32-B50A, 2011, FANUC 21i-TB, 20" x 4.7"W WHEEL
Overview
Description
Mitsubishi PD32-B50A, 2011, FANUC 21i-TB, 20" x 4.7"W WHEEL CNC ANGLEHEAD, ENCLOSURE, COOLANT,
Specifications
12.6" x 20"
MITSUBISHI - NIDEC "MADE IN JAPAN"

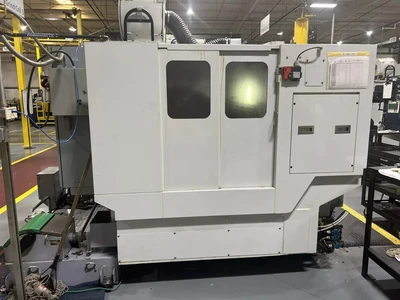

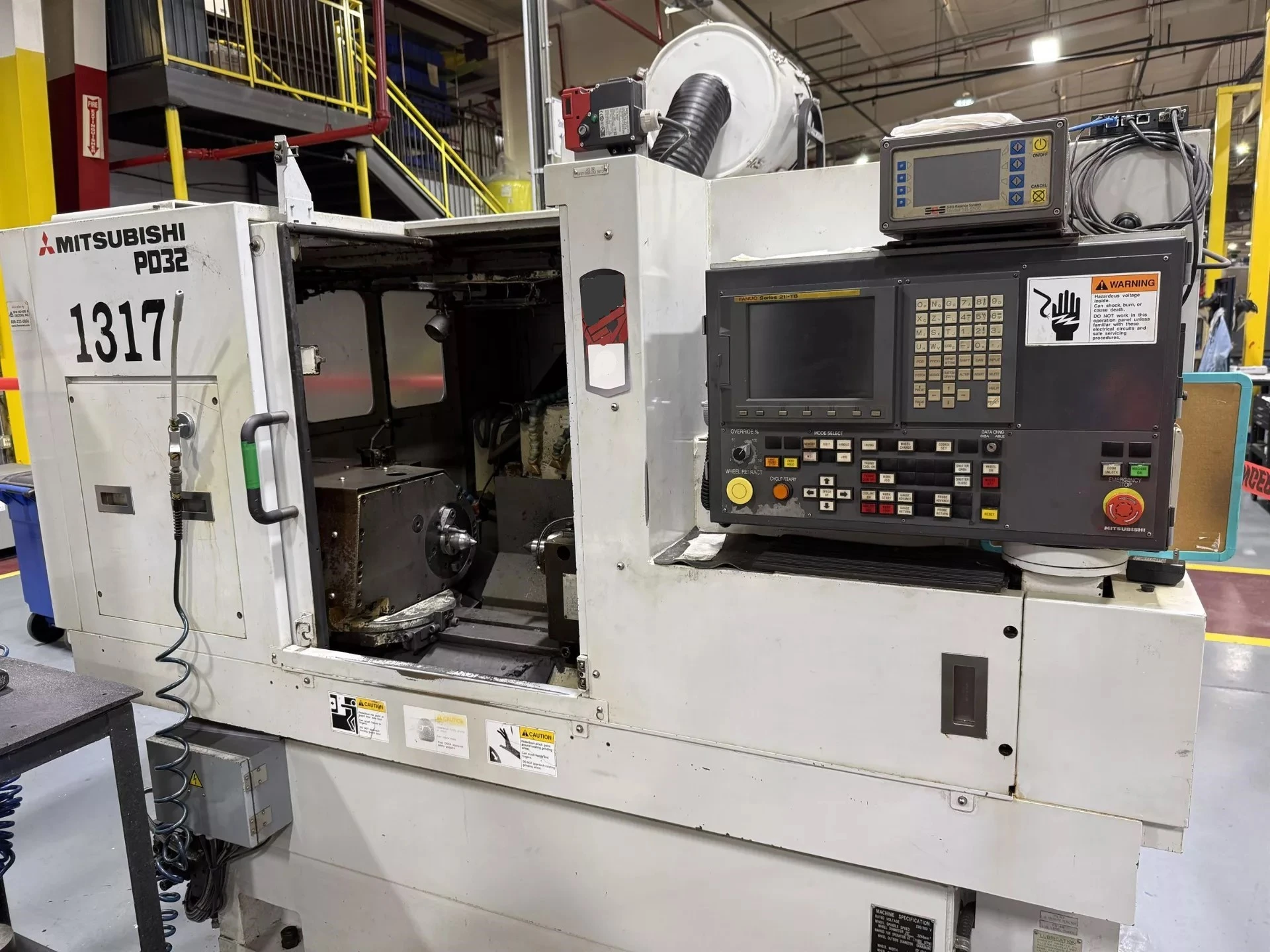

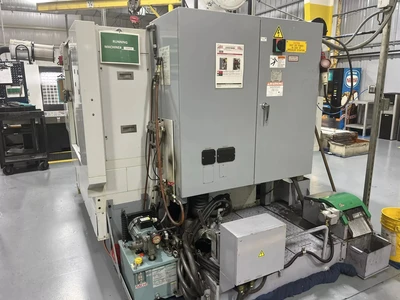

CNC ANGLE HEAD CYLINDRICAL GRINDER
FANUC 21i-TB CNC CONTROL

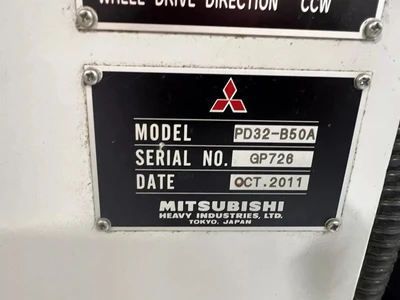

MODEL: PD32-B50A S/N: GP726
MANUFACTURED 11/2011 - INSTALLED JANUARY 2012
The Nidec P-Series CNC Cylindrical
Grinder is a top-tier CNC machine
designed for high-precision
cylindrical grinding. Ideal for
CNC machining tasks on shafts,
axles, and spindles, this
cylindrical grinding machine
delivers exceptional surface
finishes and tight tolerances.
Perfect for industries like autos,
aerospace, and tooling, the Nidec
CNC machine offers versatile
grinding patterns and user-friendly
operation.
Maximize productivity with this
advanced CNC machining center for
superior cylindrical shaping.
Even Novice Operators Can Easily Program and Operate
Optimized conditions are automatically set with the
same degree of expertise as experienced operator.
Adaptation control is utilized for the automatic
measurement device, realizing automatic setups
for speed switching points between the rough
and the fine grindings even for the first workpiece
model that has been time-consuming
in conventional machines.
With conversational graphical programming
software, data can be edited easily with
minimum key commands.
High-Accuracy Grinding and Stable Quality
The advanced fluid technology, which has been
developed over time in our Aircraft Division,
is applied to the bearings of machining tool.
This enables highly-rigid rotation to the order
of a submicron and results in high-accuracy
machining.
High Productivity
Wheel peripheral velocity of 60 m/s
(or 80m/s, optional) realized
high-speed heavy-duty grinding. The grinding
wheel of 4.7" width enables heavy-duty
plunge grinding in a single stroke.
The high-speed locater has shortened
the measurement time.
Measurement by longitudinal locator takes
only 4 seconds.
Easy Automation and Incorporation Into Production Line
Adoption of fixed-table design enabled
narrow-width machine
structure, facilitating automation and
incorporation into production line.
Various autoloaders and robots are optionally
available to meet your specific needs.
Excellent Performance and Solid Safety
Color LCD display is equipped as standard
for enhanced visibility
Graphical displays of path check, machining
area indications and so on ensures steady operations.
Safety is ensured by the triple checking functions
(machining program, grinding path, and
wheel motor overload detection).
SPECIFICATIONS:
SWING .............................. 12.6"
MAX. CENTER DISTANCE ............... 19.7"
MAX. WORKPIECE DIAMETER ............ 11.8""
MAX. WORKLOAD ...................... 330 LBS.

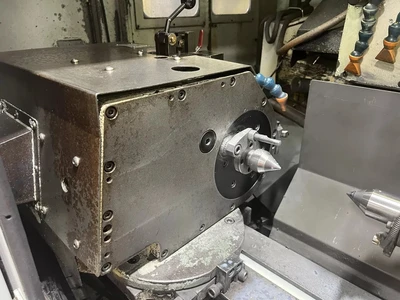

WORKHEAD CENTER TAPER .............. #4 MT
WHEEL SIZE,
DIAMETER ......................... 20" DIA.
MAX. WIDTH ....................... 4.7"
BORE ............................. 8"
MARKED FOR OPERATION AT ............ 11,800 SFPM
WHEEL DIRECTION DRIVE .............. CCW
TABLE, RAPID TRAVERSE RATE ......... 66' FPM
TABLE FEED RANGE (IPM).............. 0.00004" TO 787.4"
WHEELHEAD, RAPID TRAVERSE RATE ..... 66' FPM
WHEELHEAD FEED RANGE (IPM) ......... 0.00004" TO 787.4"
COMMAND UNIT ....................... 0.000004"
WORKHEAD SPINDLE SPEEDS ............ 10 TO 500 RPM
WORKHEAD SPINDLE TAPER ............. #4 MT
TAILSTOCK STROKE ................... 5.9"
TAILSTOCK SPINDLE TAPER ............ #5 MT
WHEEL HEAD MOTOR ................... 15 H.P.
DIMENSIONS (APPROX.)................ 124"L X 106"D
APPROX. WEIGHT ..................... 15,400 LBS.
EQUIPPED WITH:

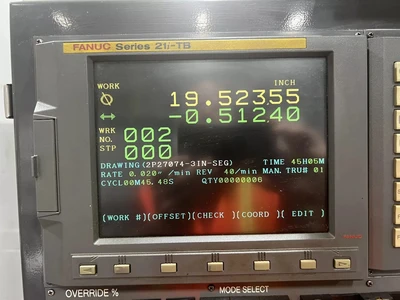

FANUC 21i-TB CNC CONTROL, WITH MITSUBISHI
CONVERSATIONAL SOFTWARE. It can run
alongside traditional G-code, allowing
users to toggle between or combine
conversational and conventional methods.
TABLE IS STATIONARY. WHEELHEAD MOVES IN & OUT,
AND SIDE TO SIDE, FOR TRAVELS
LATERAL LOCATOR

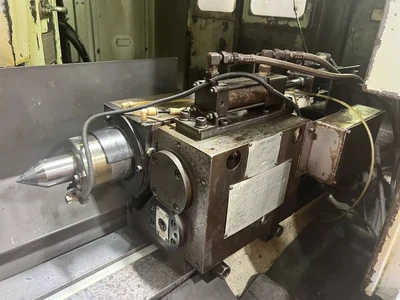

HYDRAULIC TAILSTOCK

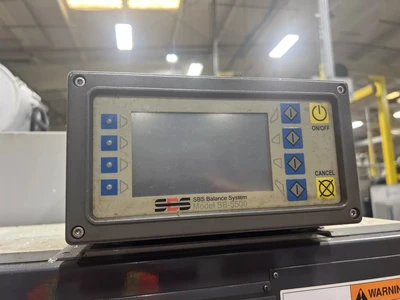

"SBS" MODEL "SB-5500" AUTO WHEEL BALANCE SYSTEM

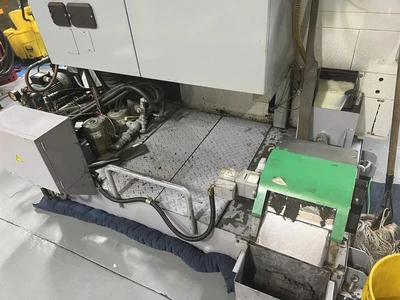

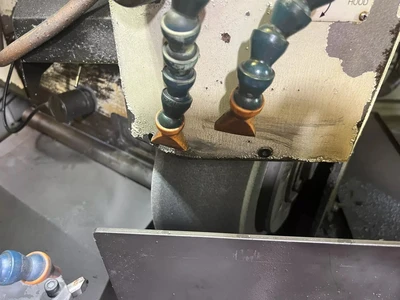

COOLANT SYSTEM WITH MAGNETIC SEPARATOR
MIST COLLECTOR
MACHINE IS WIRED FOR 3/60/220 VOLTS
LINK TO VIDEO: https://youtu.be/Jjjp366Id5U?si=4wnQE1scN_BBQfGq
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION & APPEARANCE - WOW! **
FOR MORE INFORMATION: Call Andy at 973-497-7600
