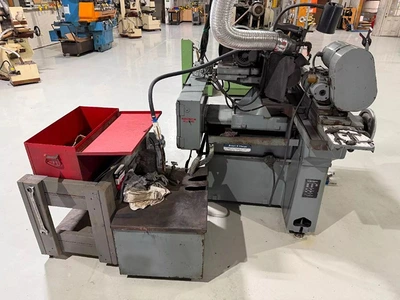

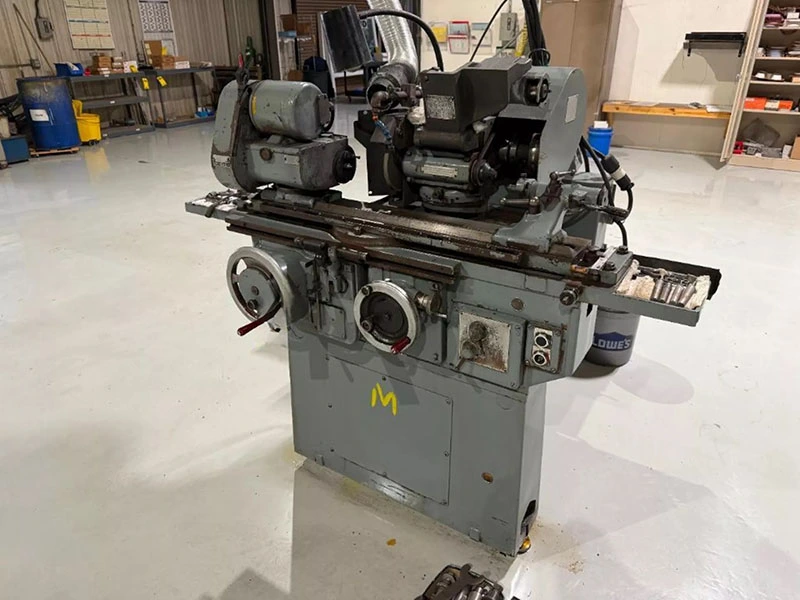

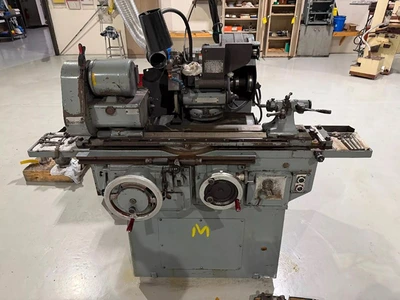

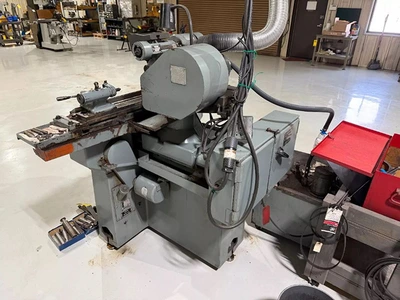

USED 1980 Brown & Sharpe 814U VALUEMASTER, 1980, SWING DOWN I.D.

8" Swing 14" Centers Brown & Sharpe 814U VALUEMASTER, 1980, SWING DOWN I.D. OD GRINDER, POWER TABLE

            BROWN & SHARPE

       MODEL #814U VALUEMASTER

             "PRECISION"

UNIVERSAL O.D./I.D. CYLINDRICAL GRINDER

S/N: 525-8144-2753       NEW: 1980

  CAPACITY:

- GRINDS WORK UP TO .................. 8" DIAMETER

- GRINDS LENGTH ...................... 14"

- DISTANCE BETWEEN CENTERS ........... 24"

  WHEELHEAD:

- GRINDING WHEEL SIZE ......... 10", 7" OR 5" DIAMETER

- GRINDING WHEEL SPEEDS (3) ... 2730, 3600 & 5150 RPM

- WHEELHEAD TRAVEL ................... 8-3/8"

- WHEELHEAD SWIVELS, LEFT & RIGHT .... 110°

  SWIVEL TABLE:

- ANGULAR SETTING TO LEFT & RIGHT .... 90°

- FINE SCREW ADJ. FOR SETTING TAPERS

    UP TO ............................ 3" PER FT.

- TABLE TRAVEL ....................... 22"

- TRAVEL PER REV. OF HANDWHEEL ....... 1/4" SLOW

                                       6-1/4" FAST

  HEADSTOCK:

- SWIVELS LEFT & RIGHT ............... 100°

- SPINDLE SPEEDS (4) ................. 128 TO 540 RPM

- APPROX. FLOOR SPACE ............... 68" x 55" x 65"H

- APPROX. WEIGHT ..................... 2,900 LBS.

MACHINE STANDARD FEATURES:

HAS ADDITIONAL TABLE SWIVEL FEATURE, FROM THE CENTER,

 FOR LARGE ADJUSTMENT OF 90°

DOUBLE ENDED WHEEL SPINDLE, LEFT & RIGHT

PRESENTLY SET-UP WITH 10" O.D. GRINDING WHEEL

MACHINE CAN BE USED WITH 10", 7" OR 5" DIA. WHEELS

DUAL LIVE/DEAD HEADSTOCK SPINDLE

FINE CROSS FEED KNOB (.0001" ON WORK DIA.)

ANTI-FRICTION BEARING WHEELHEAD SPINDLE

TABLE MOUNTED WHEEL DRESSER

COOLANT PUMP & PIPING

1 H.P. 3/60/230-460 VOLT WHEELHEAD MOTOR

1/6 H.P. WORKHEAD MOTOR

EQUIPPED WITH:

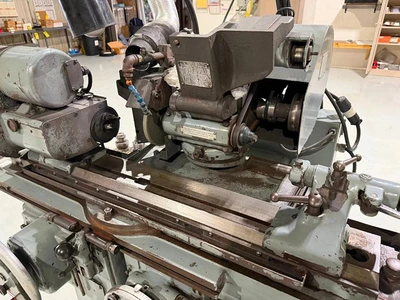

SWING DOWN I.D. GRINDING ATTACHMENT,

 WITH I.D. GRINDING SPINDLE

POWER TABLE TRAVERSE (OPTION)

"DEAD CENTER" CURRENTLY IN THE WORKHEAD

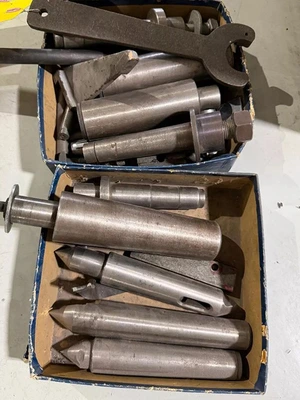

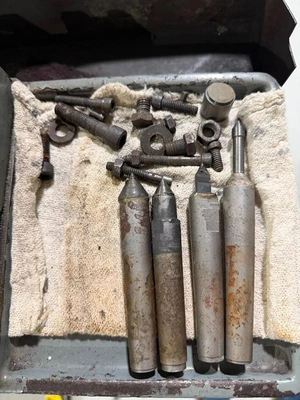

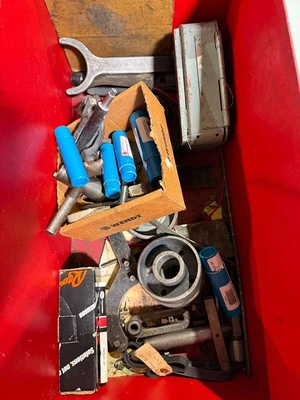

COMES WITH ASSORTMENT OF CENTERS

PRESENTLY HAS A 7" x 1/2"W GRINDING WHEEL

WORK LIGHT

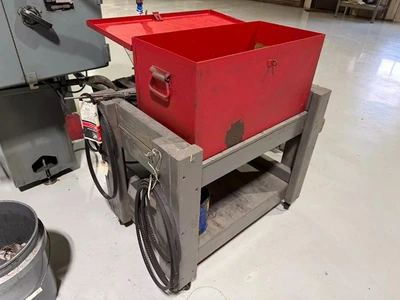

COOLANT SYSTEM

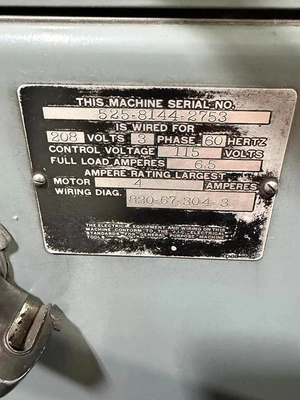

MACHINE IS PRESENTLY WIRED FOR 208 VOLTS/3/60, 6.5 FLA

** EXCELLENT CONDITION & APPEARANCE - ORIGINAL PAINT **

** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
