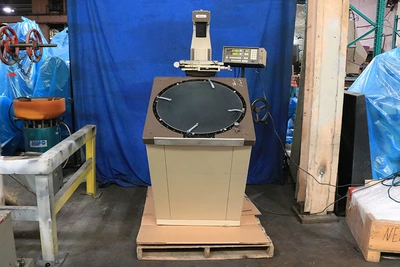

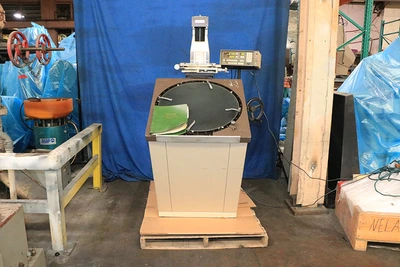

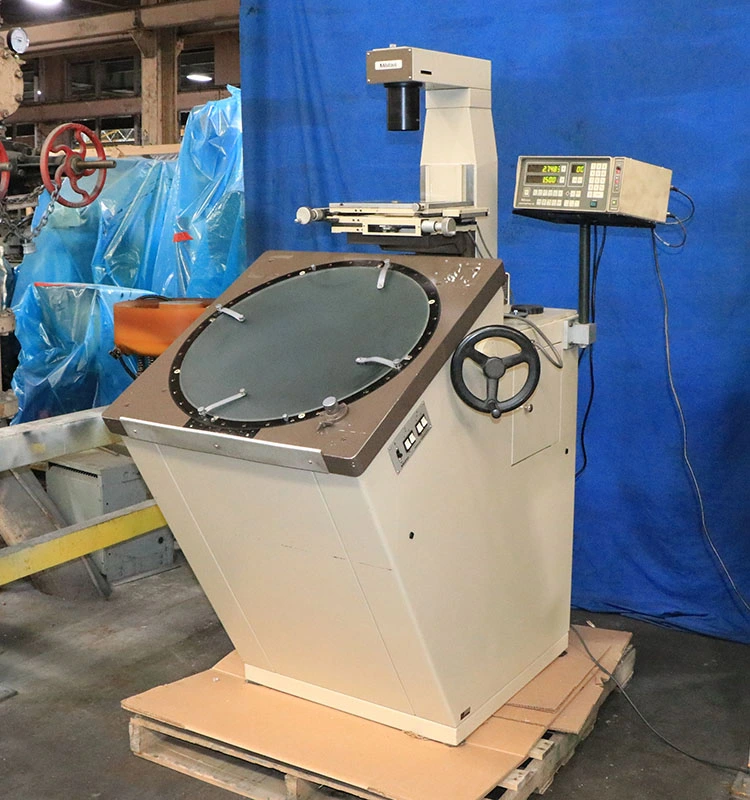

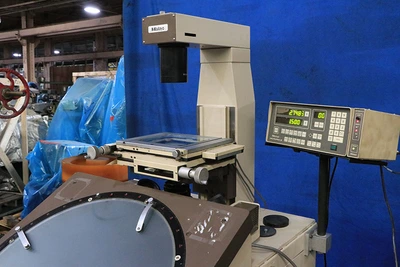

USED 1995 Mitutoyo PV-600, FLOOR MODEL - VERTICAL PROJ., 1995, 10X

24" Screen Mitutoyo PV-600, FLOOR MODEL - VERTICAL PROJ., 1995, 10X OPTICAL COMPARATOR, MICROPAK 2 DRO w/OPTOEYE EDGE DET.,

    24" MITUTOYO (MADE IN JAPAN)

  VERTICAL PROJECTION FLOOR TYPE

        OPTICAL COMPARATOR

 MITUTOYO "MICROPAK 2" TWO-AXIS DRO,

 WITH PROGRAMMABLE GEOMETRIC FUNCTIONS,

    AND "OPTOEYE E" EDGE DETECTION

"PERFECT MACHINE FOR COMPARATIVE

  MEASUREMENTS WITH ENLARGED

    DRAWINGS AND TRACING OF

      PROJECTED IMAGES"

MODEL: PV-600     S/N: 000126    NEW: 1995

SPECIFICATIONS:

Screen Diameter ................... 24"

Angle Measure ..................... 360°

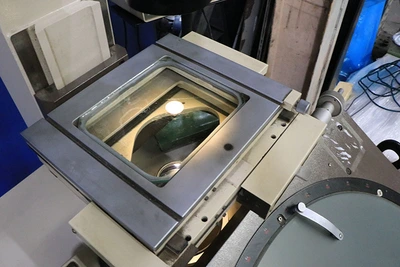

Stage Size ........................ 12" x 9.45"

Stage Glass Size .................. 7.5" x 6.3"

Load Capacity ..................... 22 Lbs.

Measuring Capacity

 - Longitudinal Stage Travel ...... 4"

   Cross Stage travel ............. 2"

APPROX. WEIGHT .................... 550 LBS.

approx. Dimensions ................ 40" x 43.4" x 68.5"H

...

MACHINE DESIGN/FEATURES:

FORWARD-TILTED SCREEN

24" SCREEN, WITH COMPACT FLOOR SPACE

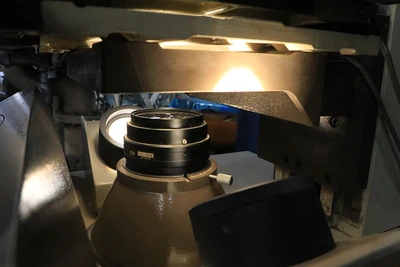

FLOOR MODEL THAT USES A DOWNWARD ILLUMINATION SYSTEM

OBLIQUE SURFACE ILLUMINATION SYSTEM PROVIDES

 CLEAR & BRIGHT IMAGES

TELECENTRIC SYSTEM WITH CONDENSOR LENS

HALOGEN LAMP, 150W, TWO STAGE BRIGHTNESS SELECTOR

  FOR CONTOUR ILLUMINATION

HALOGEN LAMP, 150W, TWO STAGE BRIGHTNESS SELECTOR

  FOR SURFACE ILLUMINATION

Equipped With:

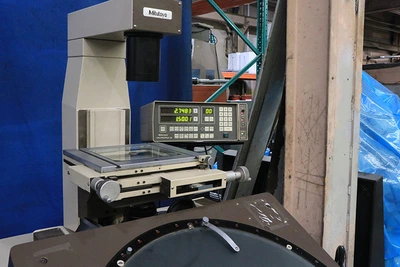

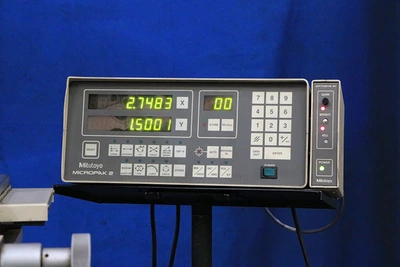

MITUTOYO "MICROPAK 2" 2-AXIS DRO, WITH PROGRAMMABLE

 GEOMETRIC FUNCTIONS

MITUTOYO "OPTOEYE E" EDGE DETECTION

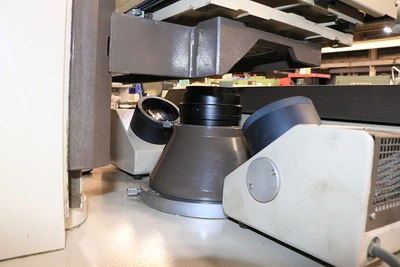

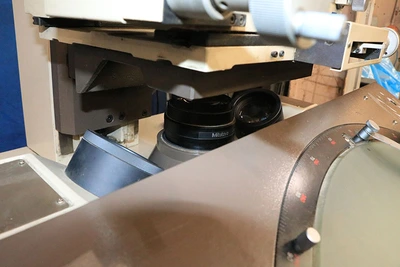

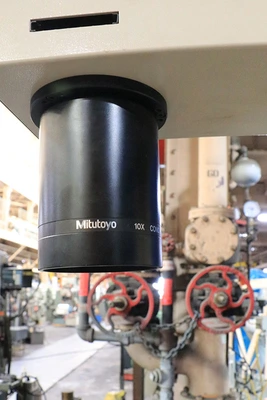

10X Lens

Electrical- 1/60/110-120 Volts

Link to video: https://youtu.be/aBs6IZ6DmH4?si=OeKllNwlcGO36nME

** EXCELLENT CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
