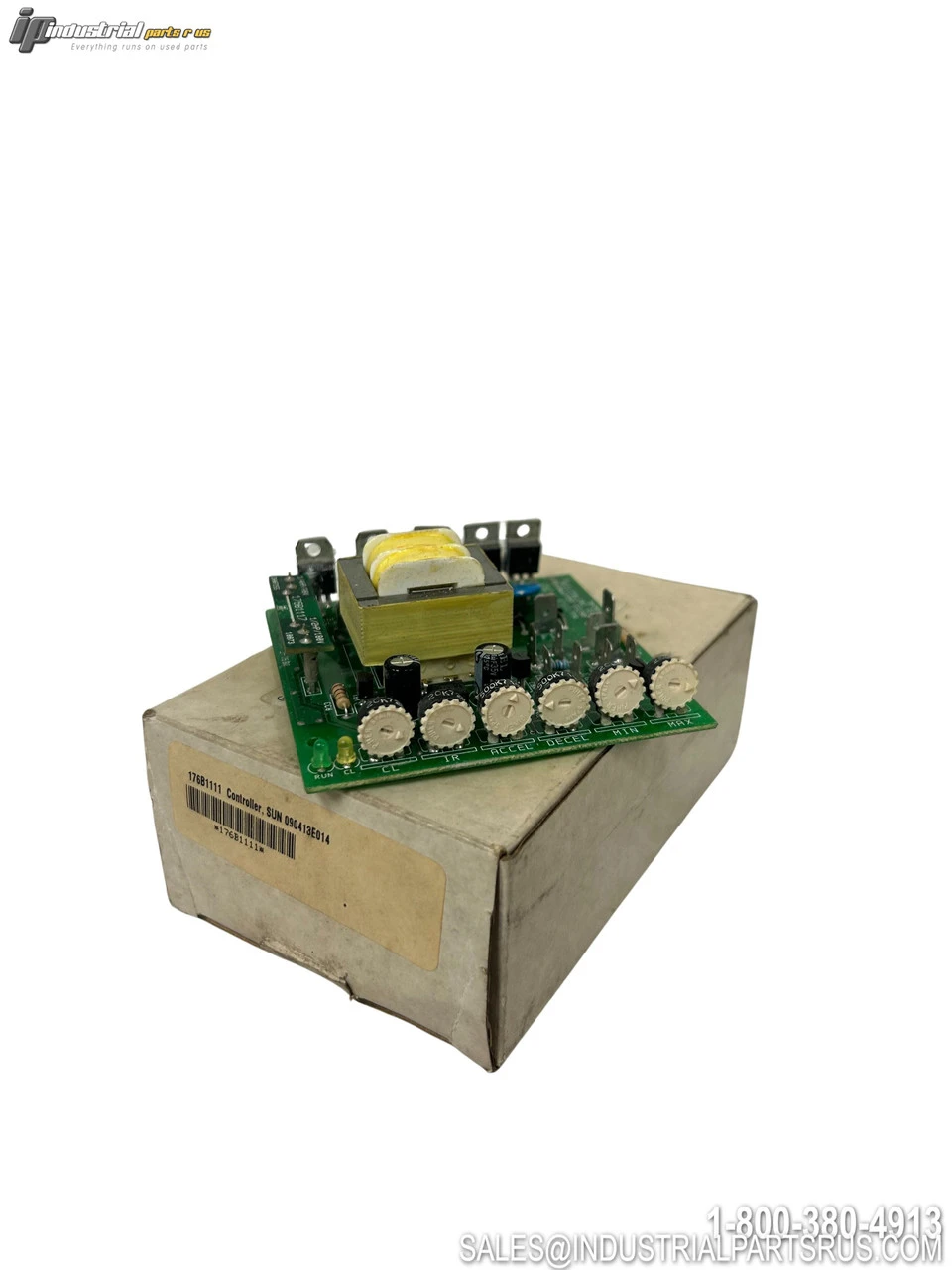

NEW GRAHAM 176B1111

The Graham 176B1111 is a Vari Speed S1000 DC Motor Speed Controller designed for precise control of small DC motors. This compact controller features surface mount technology for improved performance and reliability, with a full wave bridge rectifier and free-wheeling diode for optimum motor operation.
Specification
Value
Brand
Graham
Model/Part Number
176B1111
Product Type
DC Motor Speed Controller
Series
Vari Speed S1000
Input Voltage
120VAC
Output Voltage
0-90VDC
Phase
Single
Horsepower Rating
1/20 HP
Armature Current
1.0 Amps
Current Sense Resistor
176B1115
Operating Temperature
32°F to 131°F (0°C to 55°C)
Line Frequency
48 to 62 Hz
We warranty all items for 30 days from date of purchase.

SKU: AI0516
UPC: 679523686185
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Full Load Amps: 1.0 Amps
Manufacturer: Graham
Part Number: 176B1111
Shelf: K-41
Input Voltage: 120VAC
Model: 176B1111
MPN: 176B1111
Type: DC Drive
