USED 1983 Giddings & Lewis ChipMaster, 1983, RIGHT ANGLE BASE, (2) BOX TABLES

4' Arm Lth 9" Col Dia Giddings & Lewis ChipMaster, 1983, RIGHT ANGLE BASE, (2) BOX TABLES RADIAL DRILL, Power Feed & Tapping, #4MT, T-Slotted L Base, Tbl

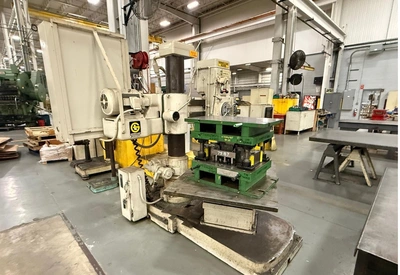

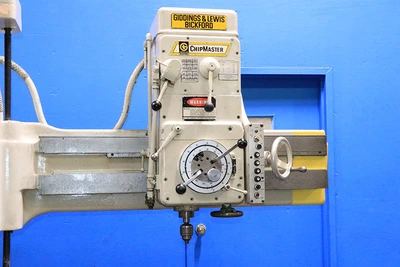

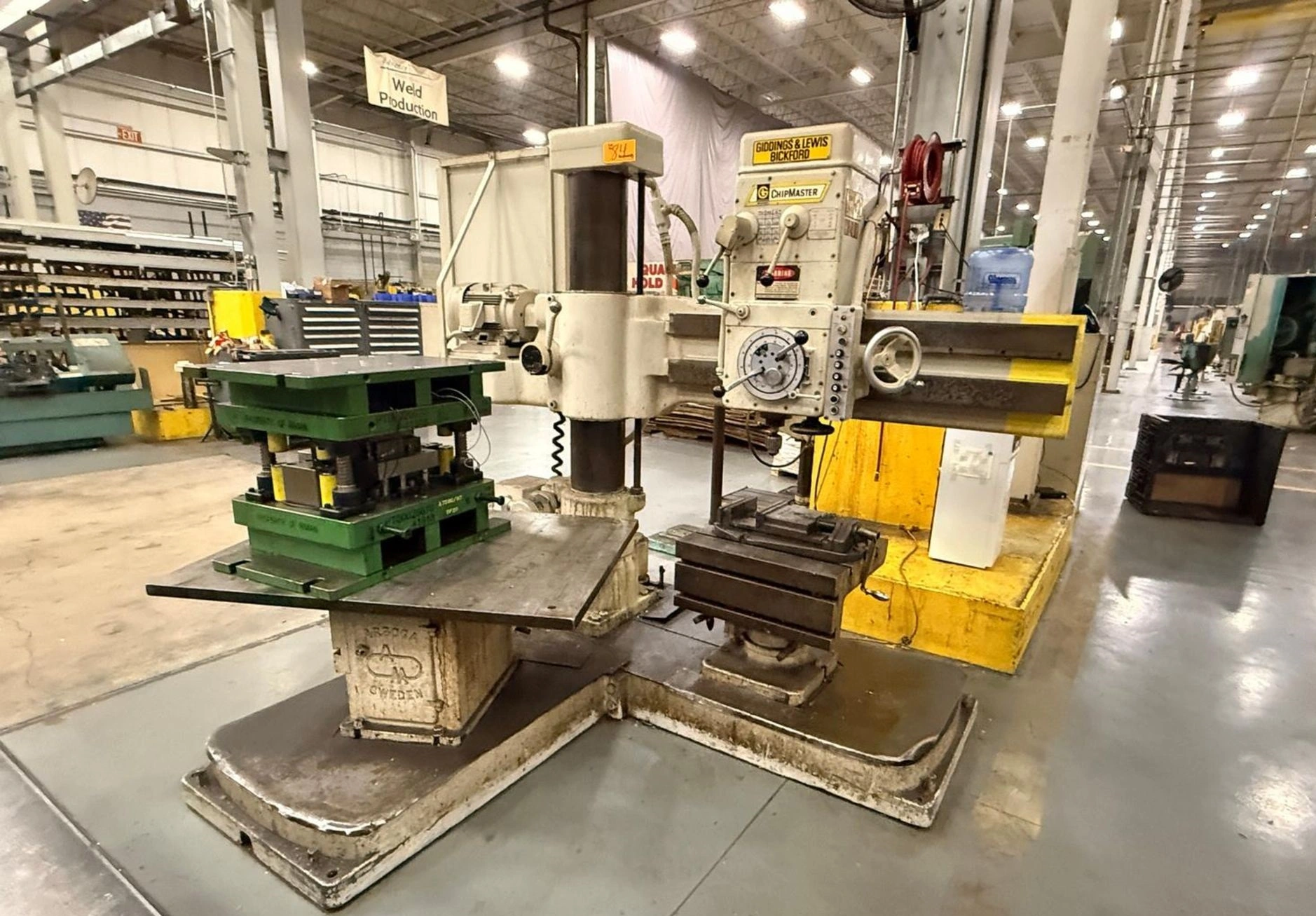

4' X 9" GIDDINGS & LEWIS BICKFORD RADIAL DRILL

WITH ADDITIONAL RIGHT ANGLE BASE

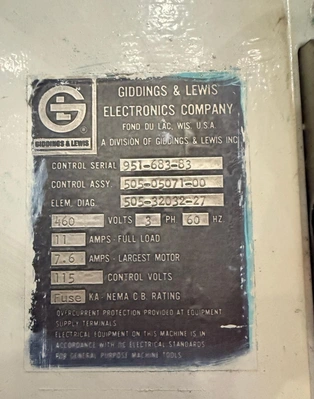

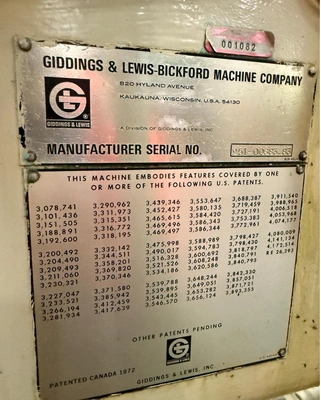

MODEL: CHIPMASTER, S/N: 951-00683-83,  NEW: 1983

SPECIFICATIONS:

MAXIMUM DISTANCE SPINDLE TO COLUMN .. 55"

COLUMN DIAMETER ..................... 9"

FACE OF COLUMN TO CENTER OF SPINDLE . 10-1/2" MIN

VERTICAL TRAVEL OF ARM ON COLUMN .... 28-1/4"

DISTANCE SPINDLE TO BASE MAX/MIN .... 53"/15"

WORKING SURFACE OF BASE ............. 30" X 53"

VERTICAL TRAVEL OF SPINDLE IN HEAD .. 10"

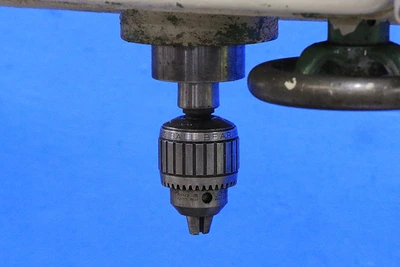

TAPER IN SPINDLE .................... #4 MT

SPINDLE FEEDS (4) ................... 2, 4, 7 & 10 IPR

SPINDLE SPEEDS-(9) .................. 60 TO 1,200 RPM

DRILLING CAPACITY ................... 1-1/2"

TAPPING CAPACITY .................... 3/4"

BORING CAPACITY ..................... 3-5/8"

APPROXIMATE WEIGHT .................. 6,000 LBS

EQUIPPED WITH:

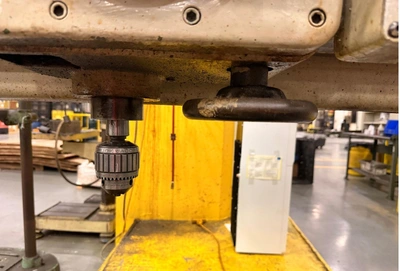

  * SPINDLE HAS POWER FEED

  * TAPPING BY SWITCH & PUSH BUTTON

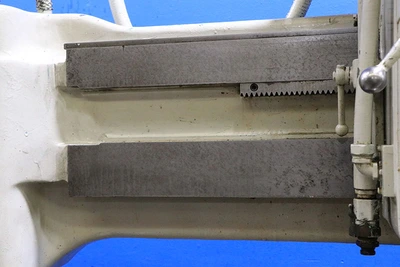

  * POWER ELEVATION OF ARM ON COLUMN

  * RIGHT ANGLE BASE

  * T-SLOTTED BASES

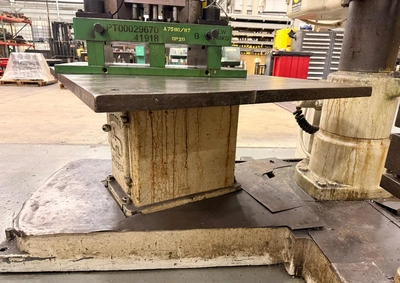

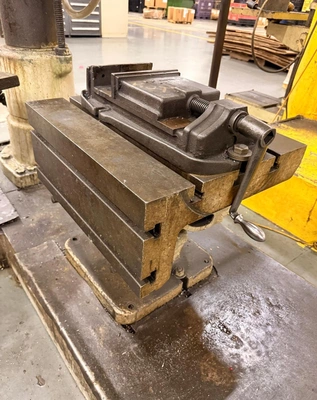

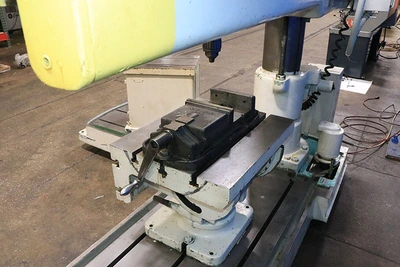

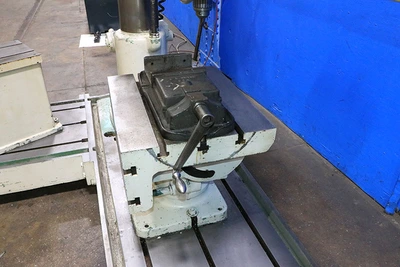

  * UNIVERSAL BOX TABLE

  * T-SLOTTED BOX TABLE MADE BY "ARBOGA"

  * COOLANT SYSTEM

  * 5 HORSEPOWER SPINDLE MOTOR

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call Andy at 973-497-7600
