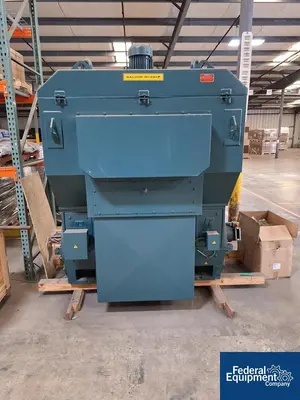

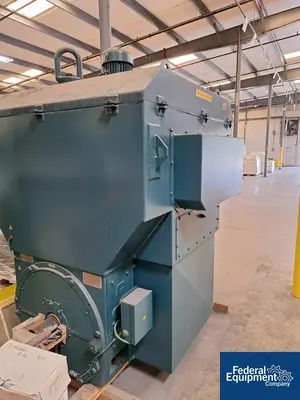

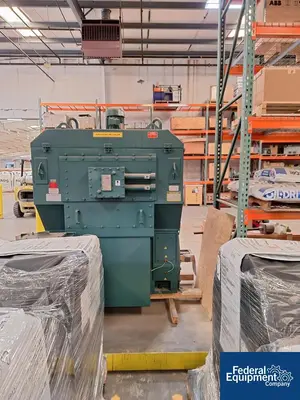

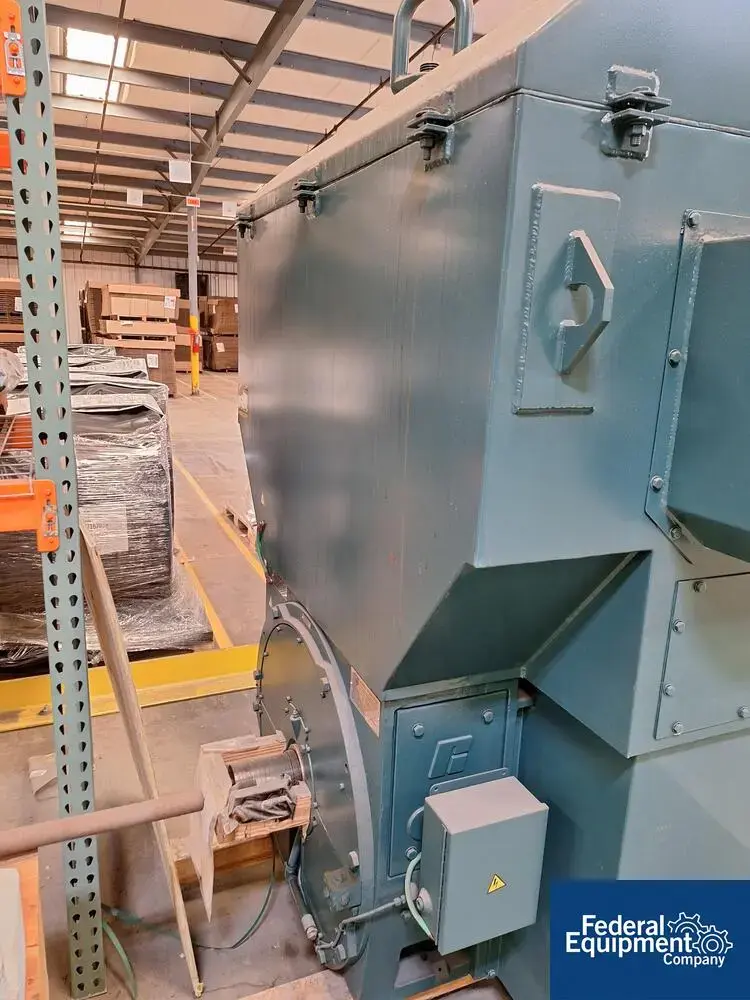

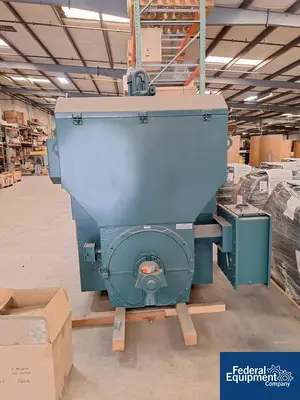

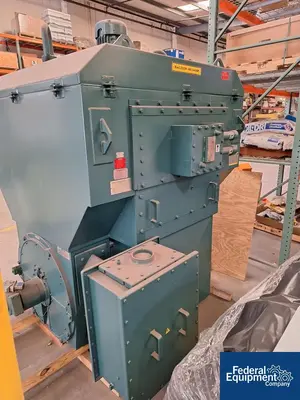

USED BALDOR Baldor Reliance 800HP Motor with Thermofin Air-to-Air Heat Exchanger

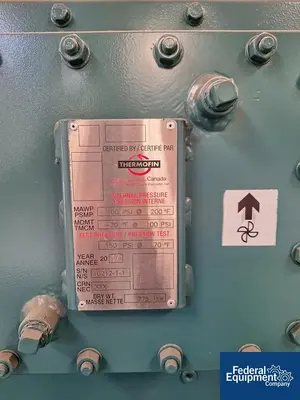

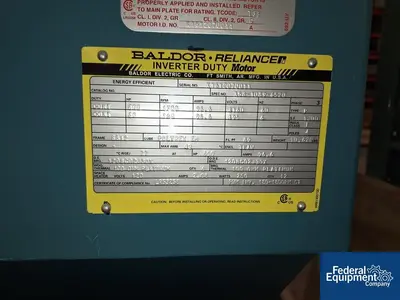

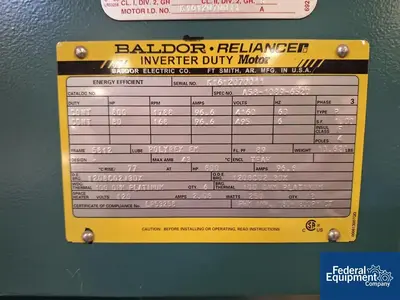

Baldor Reliance  Motor Type: Inverter Duty Energy Efficient Serial Number: K1612070011 Spec Number: A58-1089-6520 Electrical Ratings Duty: CONT – 800 HP – 1788 RPM – 96.6 Amps – 4160 Volts – 60 Hz CONT – 80 HP – 168 RPM – 96.6 Amps – 495 Volts – 6 Hz Phase: 3 Type: P Service Factor: 1.00 Insulation Class: F Poles: 4 Mechanical / Design Data Frame: 5812 Design: B Enclosure: TEAW Max Ambient: 40°C Temp Rise: 77°C Full Load Power Factor: 0.89 Weight: 10,620 lbs Bearings Drive End Bearing: 120BC02J30X Opposite Drive End Bearing: 120BC02J30X Bearing Thermal: 100 OHM Platinum Qty: 6 Space Heater 120 Volts 2.08 Amps 250 Watts Qty: 12 Certificate of Compliance: LR53258 PWM Inverter Range: 180–1800 RPM CT Thermofin Pressure Vessel / Heat Exchanger Nameplate Certified By: Thermofin   MAWP (Maximum Allowable Working Pressure): 100 PSI @ 200°F MDMT (Minimum Design Metal Temperature): -20°F @ 100 PSI Test Pressure: 150 PSI @ 70°F Year: 2017 Serial Number: 10212-1-1 CRN: XXX Dry Weight: 775 lbs

Serial Number: K1612070011
