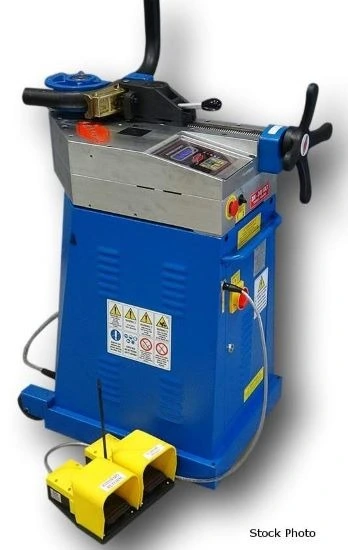

NEW ERCOLINA TB60-TC

ERCOLINA (DEMO) MODEL TB60-TC TUBE AND PIPE BENDER

CAPACITIES BASED ON MILD GRADE MATERIALS
- 1/4" TUBE OUTSIDE DIAMETER - MINIMUM
- 2-1/2" TUBE OUTSIDE DIAMETER - MAXIMUM
- 2" SCH 40 PIPE CAPACITY - MAXIMUM
- MINIMUM CENTERLINE RADIUS IS 2 X DIAMETER
- 15" MAXIMUM CENTERLINE RADIUS
- 0-210 DEGREE OF BEND
- VARIABLE BENDING SPEED
- 2 HP, 220 VOLTS,1 PHASE

WINDOWS-BASED TOUCHSCREEN CONTROL
- DISPLAYS MACHINE POSITION, STATUS, AND ALARMS
- INDICATES BEND ANGLE, SPRING BACK BEND SPEED
FOR EACH ANGLE WITHIN THE PROGRAM
- UNLIMITED STORAGE WITH USB
- 30 BENDS PER PROGRAM

FEATURES
- IDEAL FOR PRODUCING CONSISTENT QUALITY BENDS IN
PIPE, TUBE, SQUARES, SOLIDS, AND OTHER PROFILES
- SWING-AWAY COUNTER BEND DIE VISE FOR EASY
LOADING UNLOADING, MONITORED ELECTRONICALLY
- AUTOMATICALLY MONITORS AND ADJUSTS BENDING
SPEED, PROVIDING MAXIMUM TORQUE
- QUICK-CHANGE TOOLING SYSTEM WITH MULTIPLE
RADII AVAILABLE
- AUTOMATICALLY STOPS AT DESIRED BEND ANGLE
- CAN USE CONTROL PANEL OR FOOT PEDAL
- COUNTERBENDING DIE POSITION MONITORED
ELECTRONICALLY FOR ACCURACY AND REPEATABILITY
- ACCEPTS ERCOLINA'S A40-P TWO-AXIS POSITIONING
TABLE FOR MULTIPLE AND SEQUENTIAL BENDS
- NO HYDRAULIC COMPONENTS
- COMPACT DESIGN STORES EASILY

INCLUDES:
153R100T1500 Center Former 100MM ( 3.9" ) CLR 1-1/2" Tube
154T1500 Counterbend Die Bronze, 1-1/2" Tube
Power: 220 (Single)
