USED MATERIALS TRANSPORTATION COMPANY MTCS-16-10

Serial No: 7119
Stainless steel product contact surfaces.

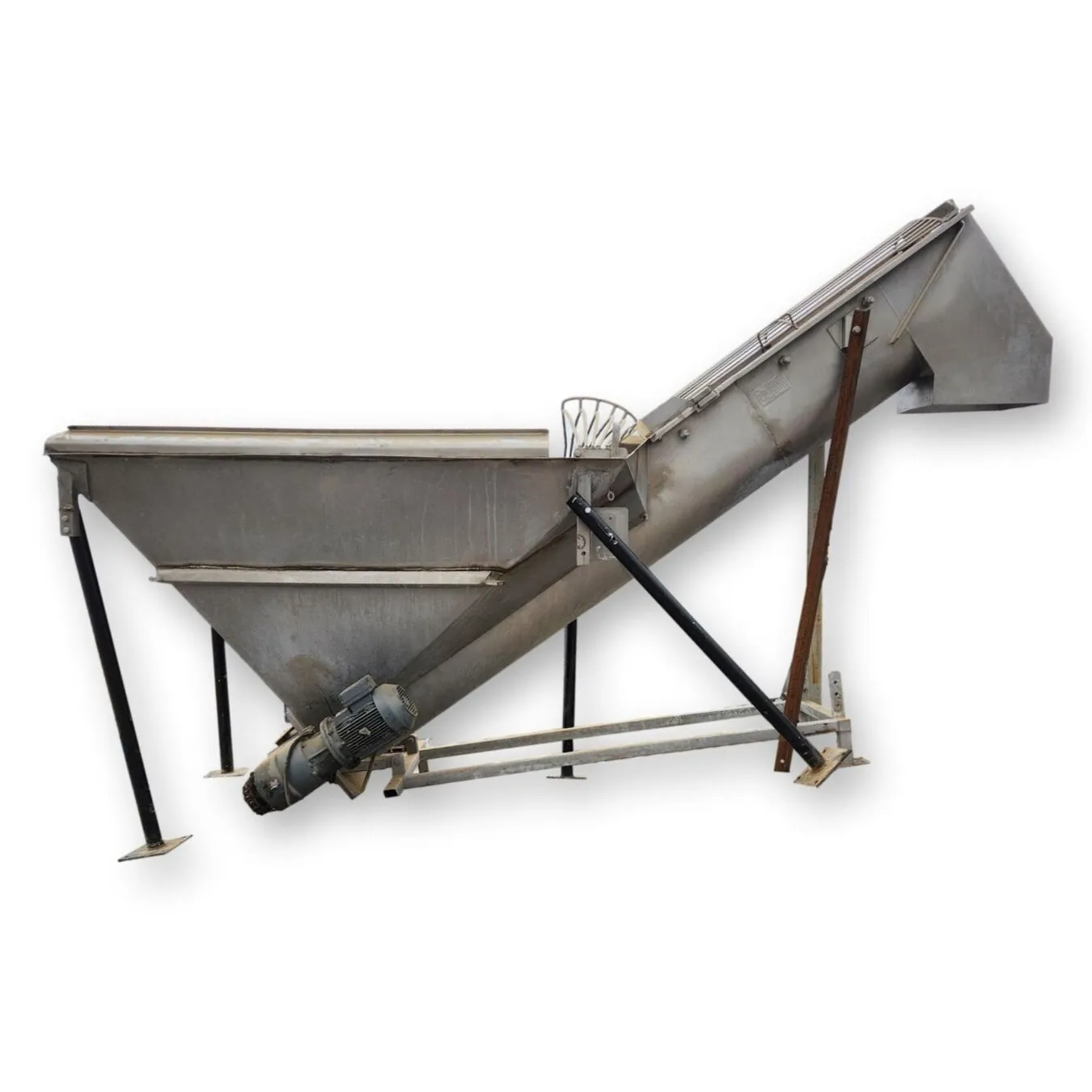

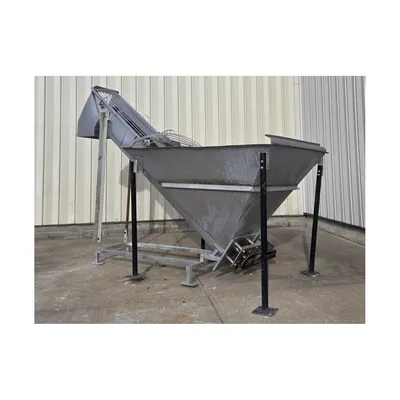

Flanged U-trough on a 45° incline with safety grating.

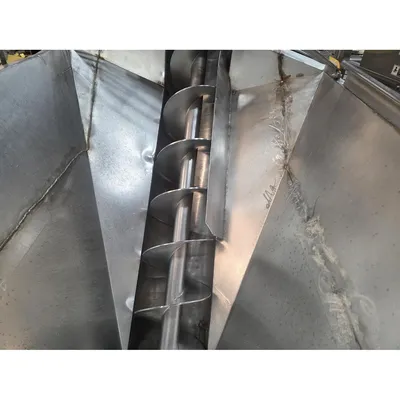

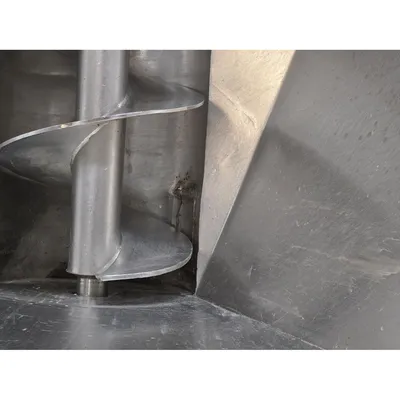

Auger: 16" diameter, Shaft: Ø3.75", Flighting: 0.25" thickness
Hopper: 61"W X 83"L with an approximate 20 Cu/Ft capacity, 63" above base
Drop-out chute discharge measuring 16"W X 18"L, 75" clearance.

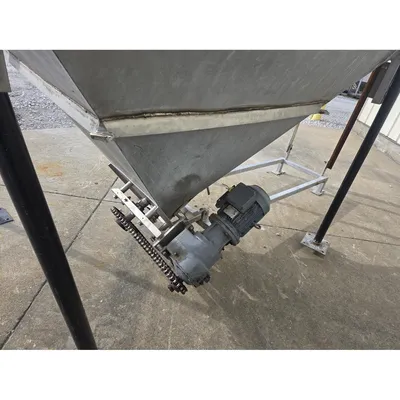

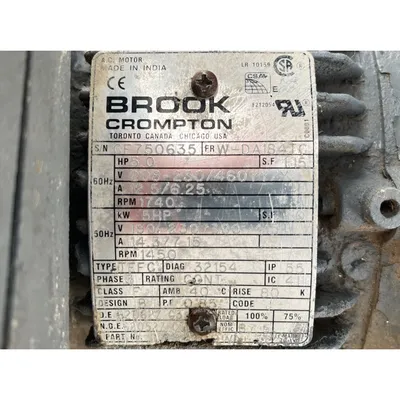

5HP gearmotor and chain drive (208-230/460V, 60/50Hz, 3ph AC)
Auger speed = 31 RPM.
Will require a guard for the chain and additional support bracing for the base frame.

FOB: Millwood, WV 25262

Item: 21542      Model :   MTCS-16-10
 MFG: Materials Transportation Company
 Screw Dia. (inches): 16
  Length (feet): 10
