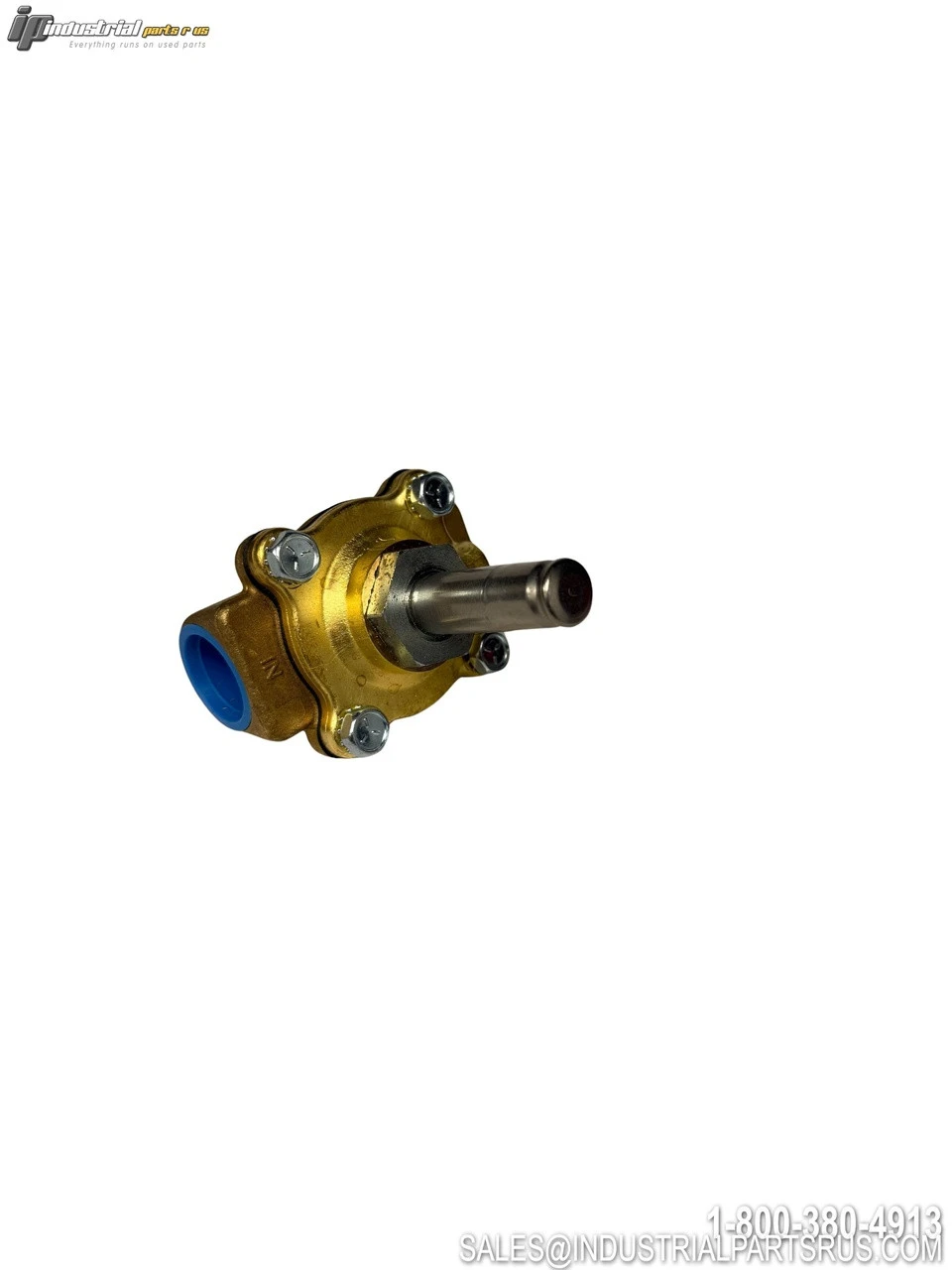

NEW PARKER 12F23C2148A3F

The Parker 12F23C2148A3F is a Gold Ring Series 2-Way Normally Closed Solenoid Valve designed for general purpose industrial applications. This Series 30 2-way normally closed valve features direct acting operation with a 3/4" NPT brass bar stock body. Compatible fluids include air, inert gases, water and light oil (300 SSU), making it suitable for automated systems, compressors, dispensing systems, and water treatment applications.
Specification
Value
Brand
Parker
Model/Part Number
12f23c2148a3f
Series
Gold Ring Series 30
Valve Type
2-Way Normally Closed
Operation
Piloted Diaphragm
Port Size
3/4" NPT
Orifice Size
3/4"
Body Material
Brass
Seal Material
NBR
Flow Factor (Cv)
5.00
Max Operating Pressure Air/Inert Gas
0-40 PSI
Max Operating Pressure Water/Light Oil
40 PSI
Maximum Temperature
150°F
Power Consumption
11.5 Watts
Compatible Media
Air, Inert Gas, Water, Light Oil
Minimum Operating Pressure Differential
6 PSI
We warranty all items for 30 days from date of purchase.

SKU: AI0506
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: Parker
Part Number: 12F23C2148A3F
Shelf: K-54
Model: 12F23C2148A3F
MPN: 12F23C2148A3F
Type: Solenoid Valve
