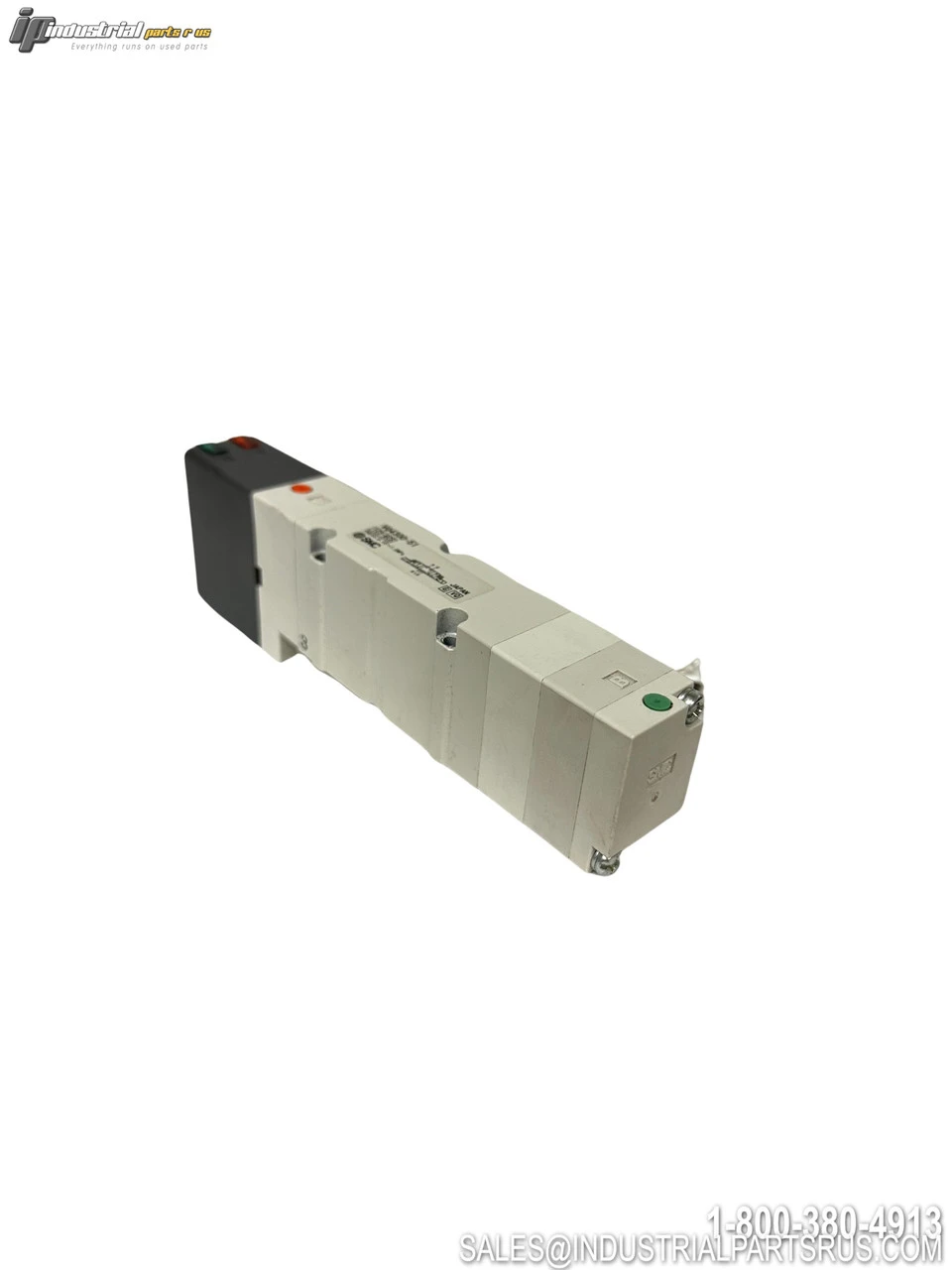

USED SMC VQ4300-51

The SMC VQ4300-51 is a high-performance 5-port solenoid valve from the VQ4000 series designed for pneumatic automation applications. This base-mounted valve features a 3-position closed center configuration with metal seal construction for reliable operation and long service life up to 100 million cycles.
Specification
Value
Brand
SMC
Model/Part Number
VQ4300-51
Series
VQ4000
Type
Solenoid Valve
Number of Ports
5
Configuration
3 Position Closed Center
Coil Voltage
24VDC
Power Consumption
0.95W
Operating Pressure Range
0.15 - 1.0 MPa
Flow Rate (Cv)
1.5/1.6
Media
Air and Inert Gas
Seal Type
Metal Seal
Mount Type
Base Mounted
Actuator Type
Plug-In
Body Material
Die Cast Aluminum
Thread Type
RC
Operating Temperature Range
-10 to 55°C
Enclosure Rating
IP65 Dust-Proof
Manual Override
Non-locking Push Type
Light/Surge Suppressor
Yes
Cylinder Capacity
Up to ø160
Service Life
100 Million Cycles
Dimensions
179mm L x 78.8mm H
Weight
0.63 lbs
We warranty all items for 30 days from date of purchase.

SKU: AI0520
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Enclosure Type: IP65 Dust-Proof
Part Number: VQ4300-51
Shelf: K-54
Model: VQ4300-51
MPN: VQ4300-51
Type: Solenoid Valve
