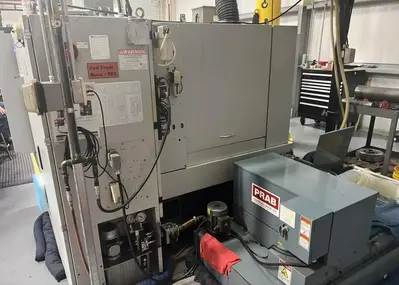

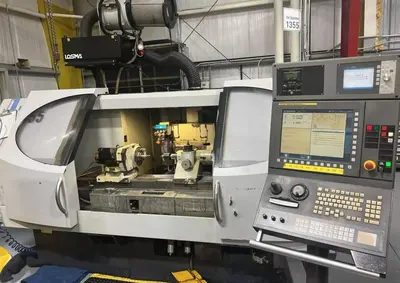

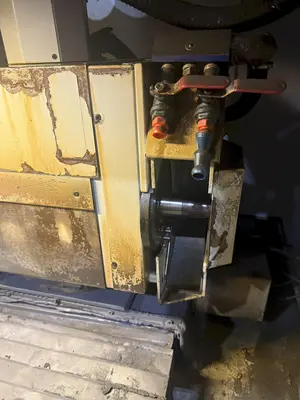

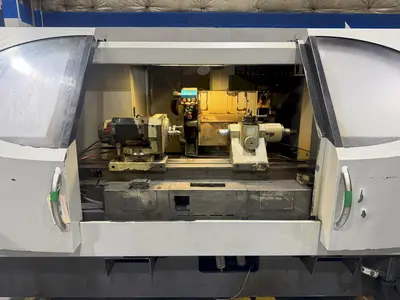

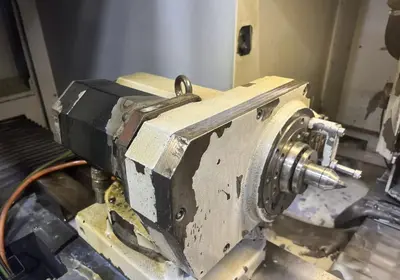

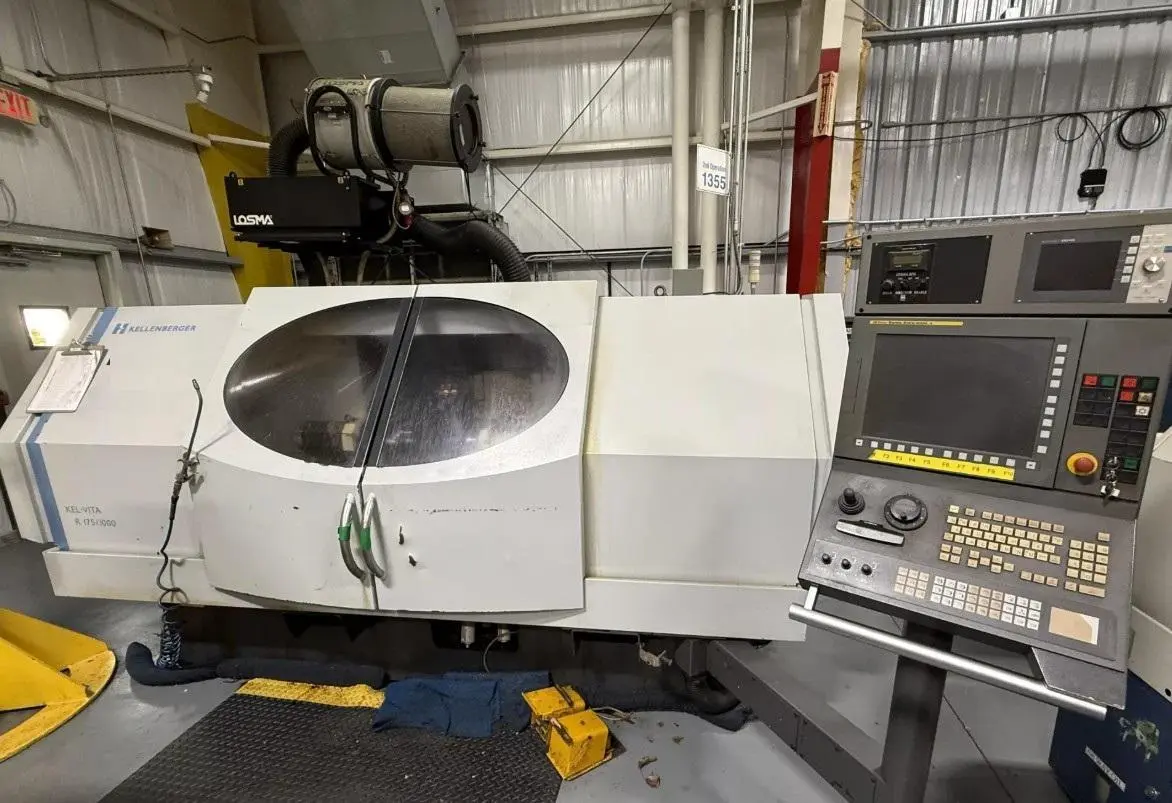

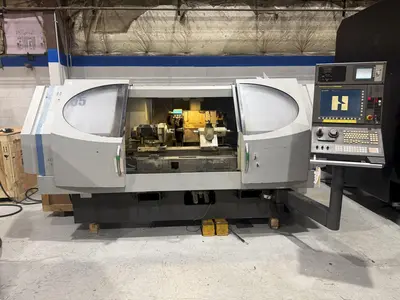

USED 2010 KELLENBERGER KEL-VITA R175/1000
Overview
Description

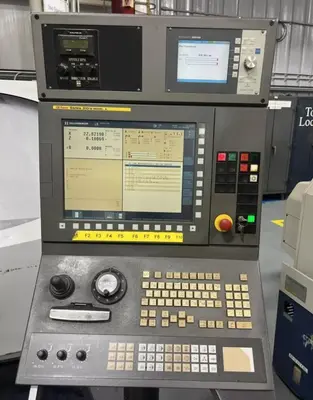

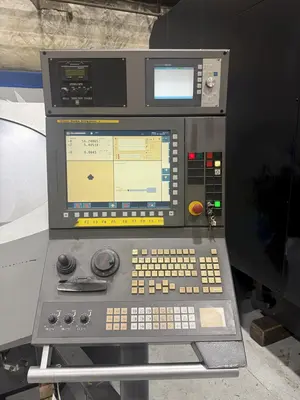

Fanuc 310is-Model A CNC Control

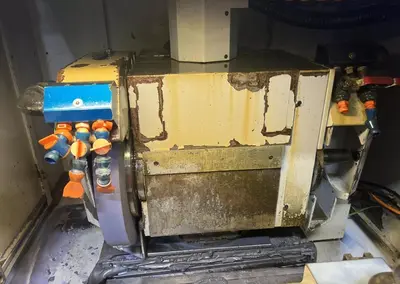

B-axis Swiveling Wheelhead

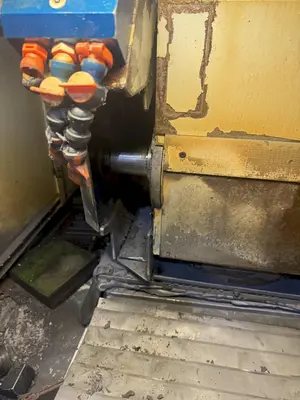

(2) OD Spindles

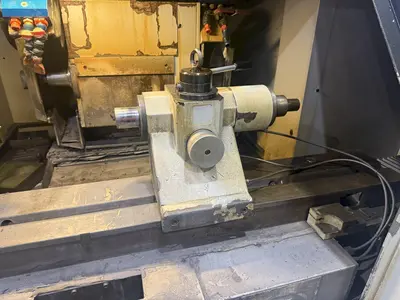

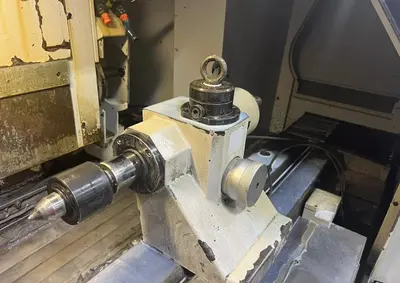

Tailstock
The Kellenberger Kel-Vita R175/1000 is an exclusive part of our Cylindrical Grinders (Universal) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
Specifications
CNC Control: yes
Control Type: Fanuc 310is-Model A
Swing: 13.78"
Center Distance: 40"
Max Weight Between Centers: 220 pounds
Grinding Wheel Dimensions: 16" x 2.5" x 5"
Grinding Wheel Speed RPM: 1,880 rpm
Grinding Wheel Spindle Motor: 10.2 hp
Wheelhead (Angle / Straight / Universal): Universal
Wheelhead Swivel: +90° to -190° CNC Controlled
Workhead Speed: 1,000 rpm

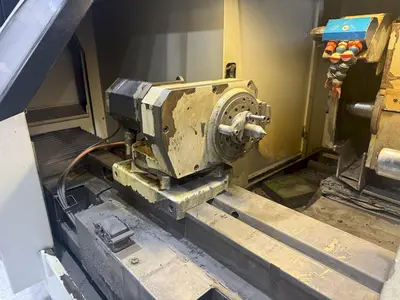

Workhead (Live / Dead): Live
X-Axis Travel: 13.77"
Z-Axis Travel: 45.27"
Internal Grinding Attachment: no
Machine Dimensions: 118" x 67"
Machine Weight: 11,000 pounds
Equipped With
- Fanuc 310is-Model A CNC Control
- Automatic B-axis Wheelhead Swivel 1° Indexing
- (2) OD Spindles
- Tailstock

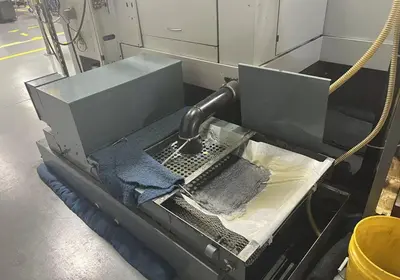

- Coolant System
