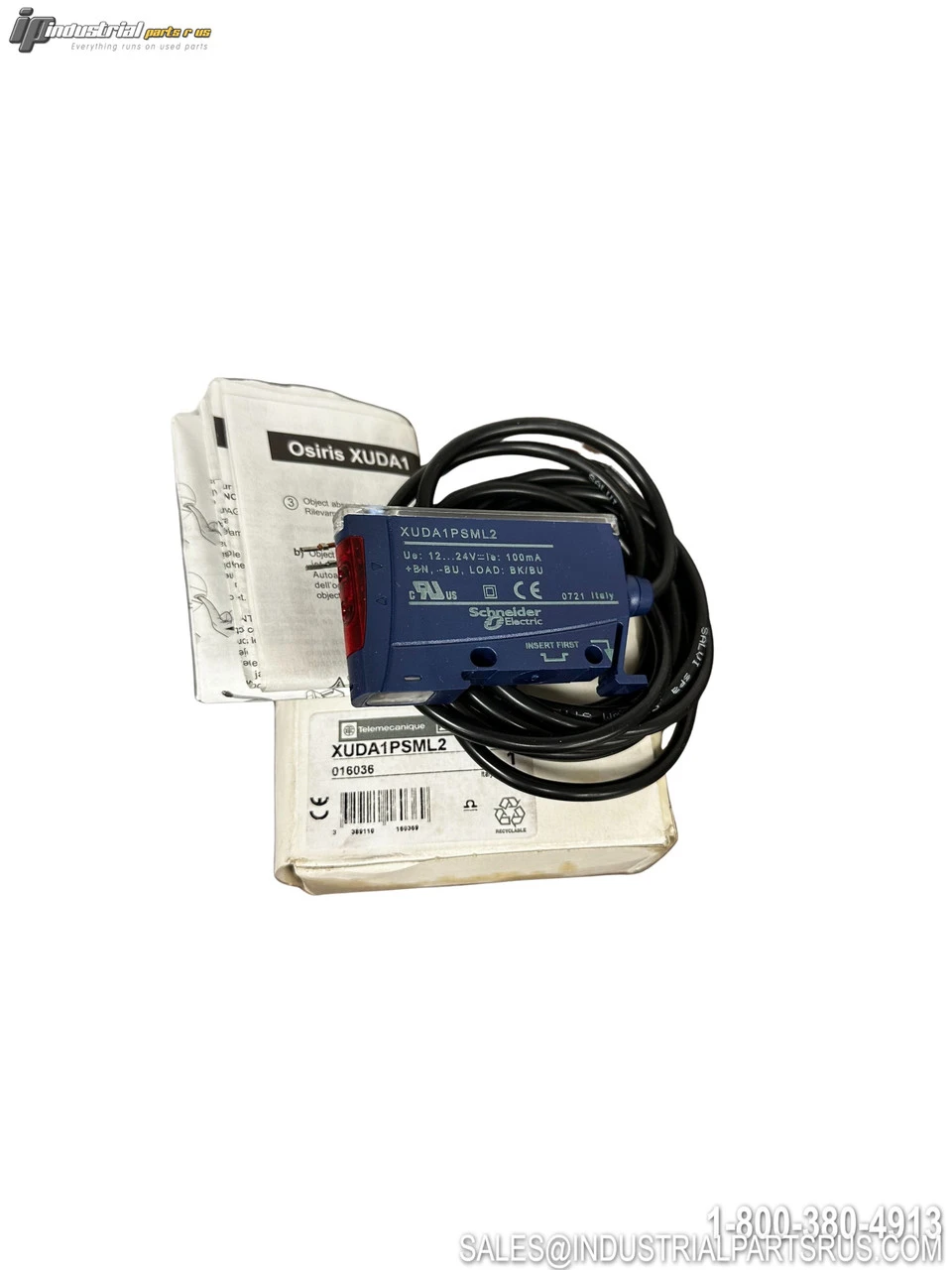

NEW TELEMECANIQUE XUDA1PSML2

The Telemecanique XUDA1PSML2 is a fiber optic photoelectric sensor amplifier from the XUD series designed for industrial automation applications. This PNP output sensor features programmable NO/NC operation and comes with a 2-meter pre-wired cable for easy panel mount installation. It operates on 12-24VDC supply voltage and provides reliable detection with fast response times.
Specification
Value
Brand
Telemecanique
Model/Part Number
XUDA1PSML2
Series
XUD
Sensor Type
Fiber Optic Photoelectric
Output Type
PNP
Operating Voltage Range
10.8V - 26.4VDC
Supply Voltage
12V - 24VDC
Load Current
100mA
Current Consumption
≤50mA
Response Time
0.5ms
Switching Frequency
≤1kHz
Operating Temperature
-10°C to +55°C
Protection Rating
IP64/IP65
Connection Type
Cable, 2m
Enclosure Material
PBT
Output Function
1 NO or 1 NC Programmable
Light Type
LED
We warranty all items for 30 days from date of purchase.

SKU: AI0523
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Output Type: PNP
Sensor Type: Photoelectric
Full Load Amps: 100mA
Manufacturer: Telemecanique
Part Number: XUDA1PSML2
Shelf: K-21
Model: XUDA1PSML2
MPN: XUDA1PSML2
Type: Fiber Optic Sensor
