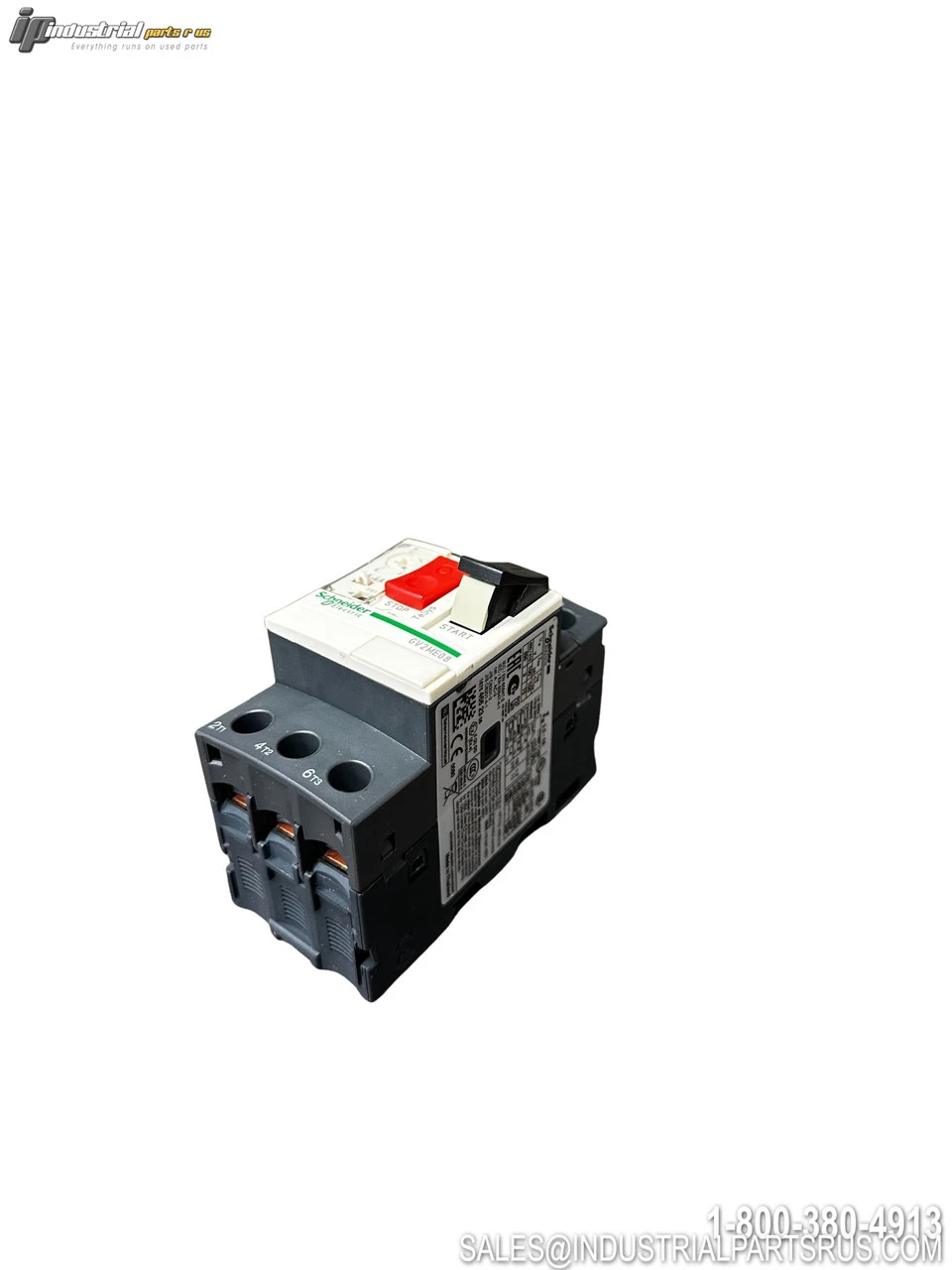

USED SCHNEIDER GV2MEO8

The Schneider Electric GV2ME08 is a TeSys GV2 manual motor starter and protector that provides motor control and thermal overcurrent protection in a compact unit. This 3-pole thermal-magnetic motor starter features pushbutton operation, adjustable trip current from 2.5A to 4A, and screw clamp terminals for secure connections.
Specification
Value
Brand
Schneider
Model/Part Number
GV2ME08
Series
TeSys GV2
Product Name
TeSys GV2
Number of Poles
3-Pole
Current Rating
2.5-4A
Voltage Rating
690VAC Maximum
Trip Unit Technology
Thermal-Magnetic
Starter Type
Non-Reversing
Operator Type
Pushbutton
Terminal Type
Screw Clamp
Mounting Type
DIN Rail / Panel
Frequency
50/60 Hz
Breaking Capacity
100kA at 230/240VAC
Motor Power 1-Phase
0.125HP@115VAC, 0.334HP@230VAC
Motor Power 3-Phase
0.75HP@200VAC, 1HP@230VAC, 2HP@460VAC
Overload Type
Ambient Compensated Bimetallic (Class 10)
Dimensions (W x D x H)
45mm x 78.5mm x 89mm
Operating Temperature
-20°C to +60°C
Enclosure Rating
IP20/IK04
Approvals
UL, CSA, CE, IEC
We warranty all items for 30 days from date of purchase.
