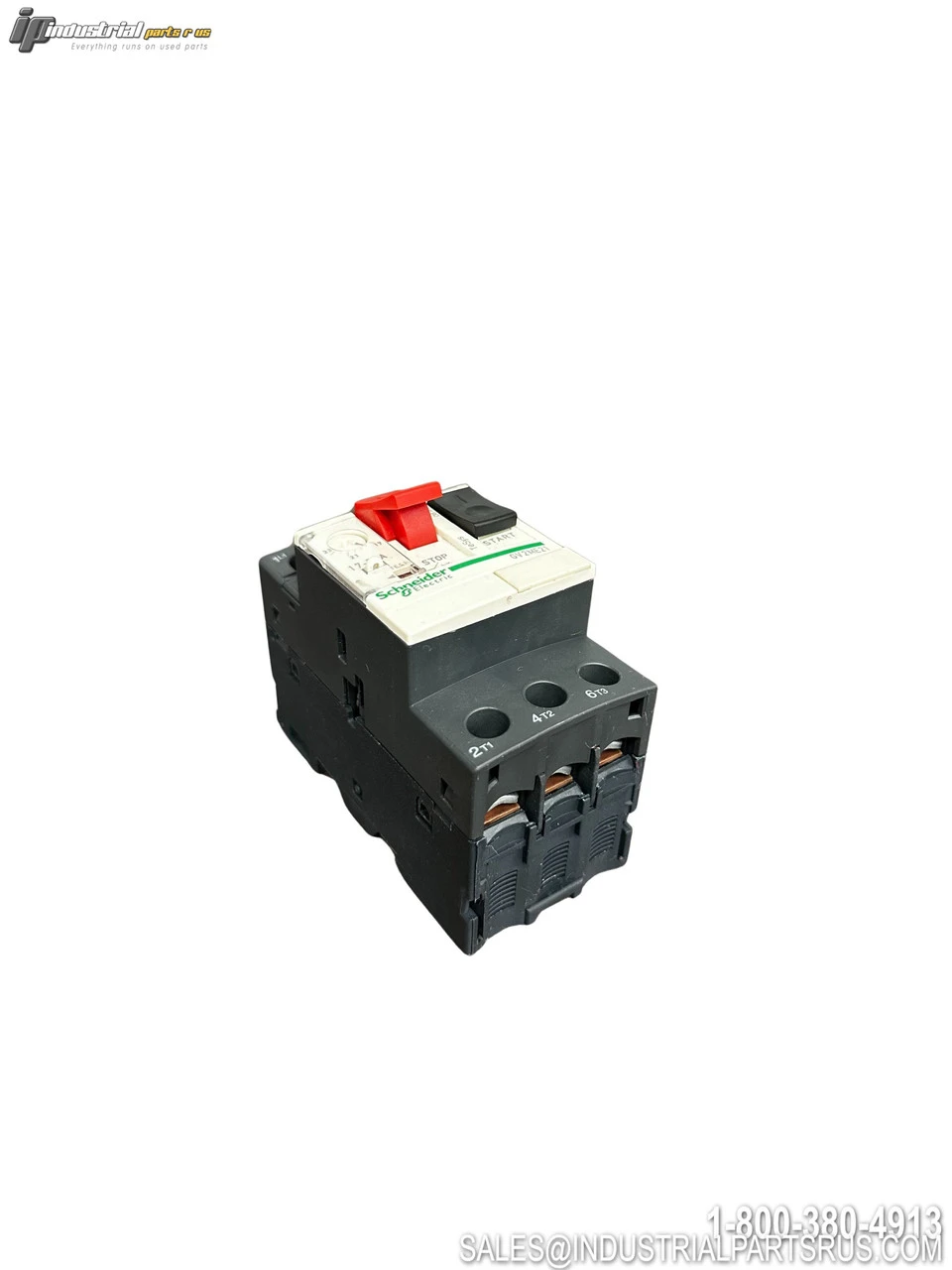

USED SCHNEIDER GV2ME21

The Schneider Electric GV2ME21 is a TeSys GV2 series manual motor starter and protector that provides thermal-magnetic protection for motors with current ratings from 17-23 amperes. This 3-pole unit features pushbutton operation, ambient compensated bimetallic overload relay, and magnetic instantaneous short-circuit protection in a compact 45mm wide housing.
Specification
Value
Brand
Schneider
Model/Part Number
Gv2me21
Series
TeSys GV2
Type
GV2ME Non-Reversing
Current Rating
17-23A
Maximum Voltage
600VAC
Number of Poles
3
Operator Type
Push Button
Trip Type
Thermal-Magnetic
Overload Class
Class 10
Connection Type
Screw Clamp Terminals
Mounting
35mm DIN Rail
Enclosure Rating
IP20
Width
45mm (1.77 in)
Height
89mm (3.5 in)
Depth
78.5mm (2.6 in)
Operating Temperature
-20°C to +60°C
Operating Cycles
100,000
Frequency
50/60 Hz
HP @ 1 Phase 120V
1.5 HP
HP @ 1 Phase 230V
3 HP
HP @ 3 Phase 208V
5 HP
HP @ 3 Phase 240V
7.5 HP
HP @ 3 Phase 480V
15 HP
HP @ 3 Phase 575V
20 HP
Certifications
UL Listed, CSA Certified, CE Marked
We warranty all items for 30 days from date of purchase.

SKU: AI0531
UPC: 679523686208
Condition: Used
Availability: In Stock
Weight: 3.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686208
Manufacturer: Schneider
Enclosure Type: IP20
Part Number: GV2ME21
Shelf: J-79 tub-3
Model: GV2ME21
MPN: GV2ME21
Type: Motor Starter
