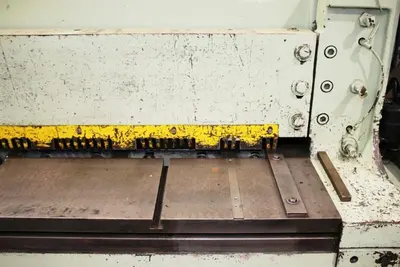

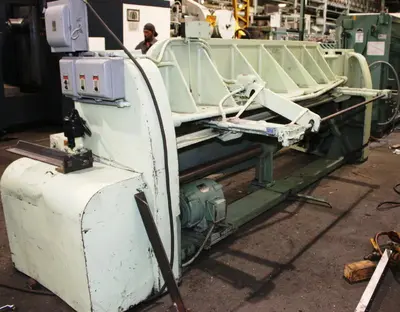

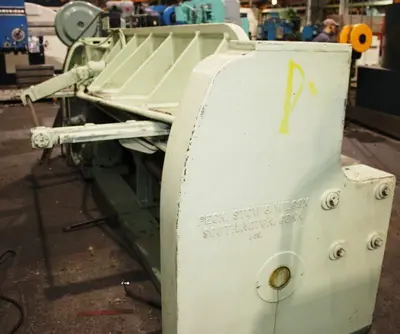

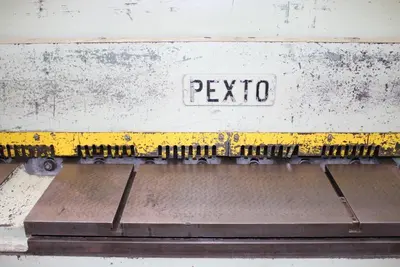

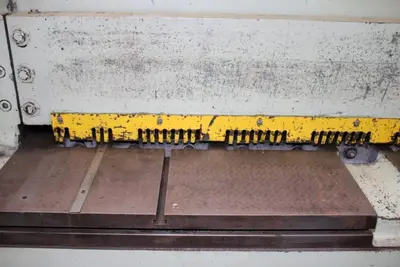

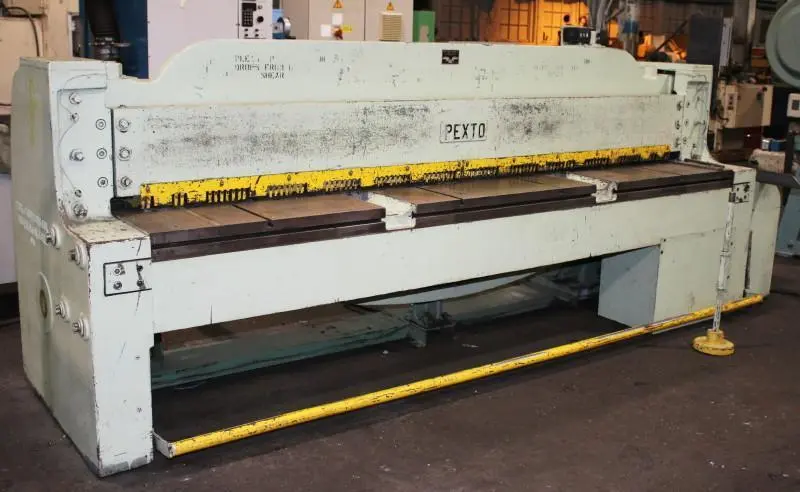

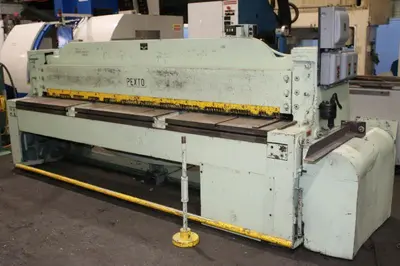

10 GA. X 120" PEXTO MODEL 10-*U-10A MECHANICAL SHEAR

Equipped With
10 GA. X 120" PEXTO MODEL 10-*U-10A MECHANICAL SHEAR
New 1964
SPECIFICATIONS:
Capacity (MS) .................................... 10 GA
Capacity (SS) .................................... 12 GA
Cutting Length ................................... 120"
Rake Per Foot .................................... .312
Strokes Per Minute ............................... 60
Motor ............................................ 7.5 HP, 1735 RPM
Voltage .......................................... 208/230/460

Approximate Dimensions ..................... 96" F-B X 166" R-L X 60" H
Approximate Weight ......................... 17,000 LBS
EQUIPPED WITH:
- 24" Front Operated Powered Backgauge

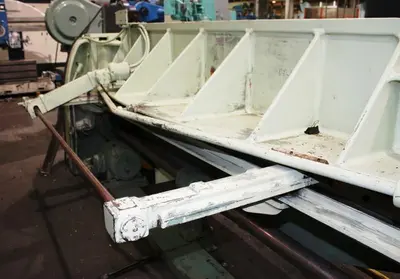

- Squaring Arm
- Support Arms

- Full Length Foot Treadle
