USED 1999 DOALL C-650NC
Overview

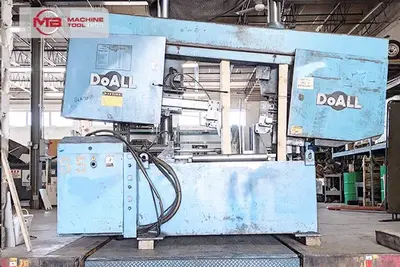

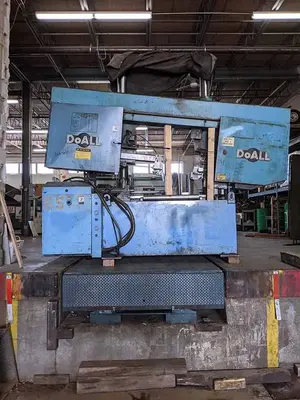

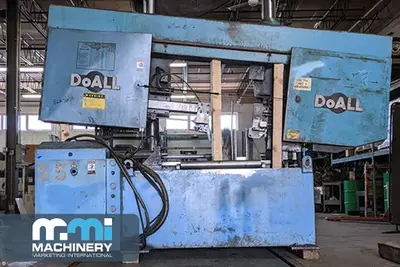

Used 1999 DOALL C-650NC for sale. This pre-owned DOALL Horizontal Band Saw is located in the USA. This Horizontal Band Saw is available for a limited time, call us today for a quote. If you have any questions about our DOALL C-650NC listing, contact us and we will be happy to help.
Used 1999 DOALL C-650NC for sale. This pre-owned DOALL Horizontal Band Saw is located in the USA. This Horizontal Band Saw is available for a limited time, call us today for a quote. If you have any questions about our DOALL C-650NC listing, contact us and we will be happy to help.
Specs
2" Blade
Chip conveyor
NC control
optional feed force dial
bundling vertical clamp on Shuttle feed
rapid to work stop
Full travel vises
0-99 jobs
powered blade guide arm
hydraulic powered chip brush
6 degree canted head for more efficient cutting
Blade and manuals
Blade Width: 2"
Cutting Capacity (Rectangle): (H) 25" X (W) 25"
Cutting Capacity (Round): 26"
Cutting Capacity (square): 25"
Horsepower (HP): 10 HP
Type: Auto
Blade Thickness: 0.05"
Blade Length: 300"

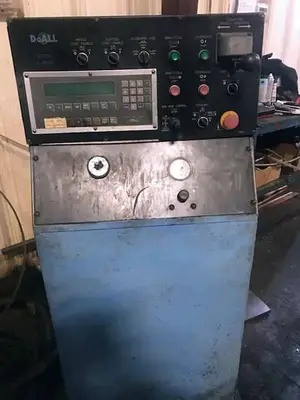

Control: CNC (Doall NC)
Approx. Weight: 13,000 lbs.
Smallest recommended cut size: 1"
Minimum butt end: 12"
Auto index length single index: 20"
multiple index: 221"
minimum index length: 1/4"
Numeric control program capacity: 0-99
Display: Alpha/numeric
Bandsaw blade size: 2" X 300"
Blade Speed: 40-360 FPM Variable
Blade Motor: 10 HP
Hydraulic Motor: 3 HP
Cutting Fluid Pump Motor: 1/3 HP
Hydrauic Tank Capacity: 15 Gallons
Material pass line height: 33.5"
Approx. Machine Weight: 13,000 lbs.
Approximate Dimensions: 96"x 142"x 128"
Equipped With
2" Blade
Chip conveyor
NC control
optional feed force dial
bundling vertical clamp on Shuttle feed
rapid to work stop
Full travel vises
0-99 jobs
powered blade guide arm
hydraulic powered chip brush
6 degree canted head for more efficient cutting
Blade and manuals
