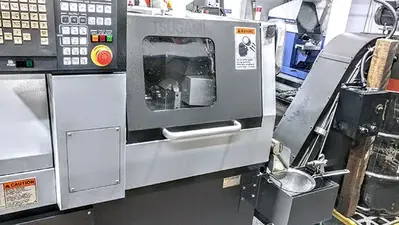

USED 2011 TSUGAMI BE20V
Overview
Used Tsugami BE20V. This pre-owned Swiss Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Tsugami Swiss Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs

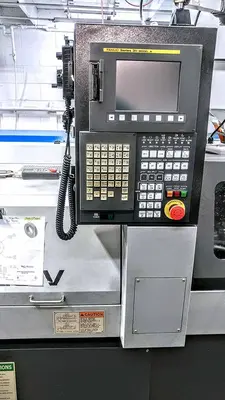

CONTROL:: Fanuc 31iA
Controlled Axes:: X1, X2, Z1, Z2, A
Bars tock Range:: 3 mm - 20mm
Max Workpiece Length:: 210 mm/ 170mm w/Rotary Guide Bushing/ 45mm w/ Non-Guide Bushing
Max Main Spindle Drilling Diam:: 7mm
Max Main Spindle Tapping Diam:: M6 x 1
Max Back Spindle Gripping Diam:: 20mm
Max Back Spindle Drilling Diam:: 7mm
Max Back Spindle Tapping Diam: M6 x 1
Max Rotary Tool Drilling Diam:: 6mm
Max Rotary Tool Tapping Diam:: M5 x 0.8
Main Spindle Speed:: 200 - 10,000 rpm
Back Spindle Speed:: 200 - 10,000 rpm
Tool Size:: 12 x 12 x 85mm
Rapid Traverse Rate:: 32m/min (X: 24m/min) 1259 IPM (X1:945)
Weight (approx):: 3960 lbs
Dimensions (approx):: 65" x 43" x 67"
Equipped With

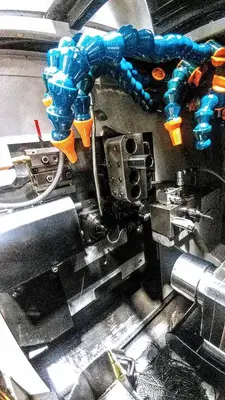

3 DRIVEN TOOLS CROSS WORKING
GUIDE BUSHING AND OPTIONAL CHUCKING ATTACHMENT
PARTS CONVEYOR
CHIP CONVEYOR

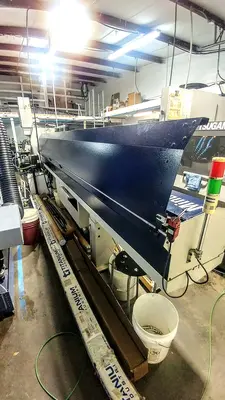

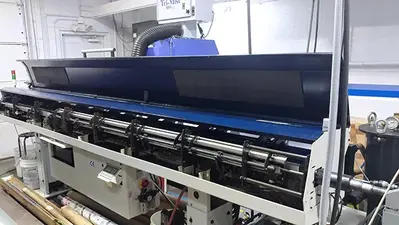

MINUTEMAN 320 MAGAZINE BAR LOADER

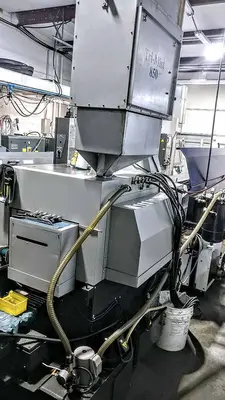

TRI-MIST COLLECTOR

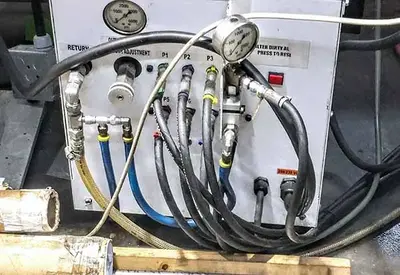

MP HIGH PRESSURE 2000 PSI SYSTEM
LARGE VARIETY OF GUIDE BUSHING SIZES INCLUDED
