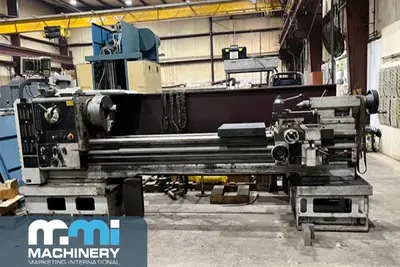

USED 2001 HARRISON M550 GH
Overview

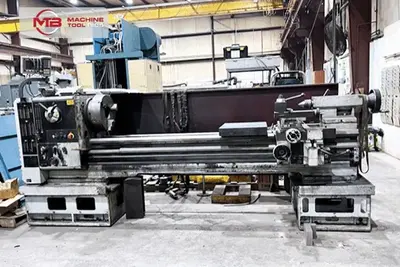

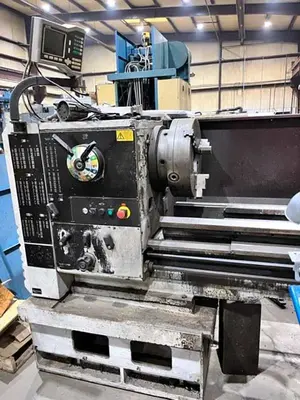

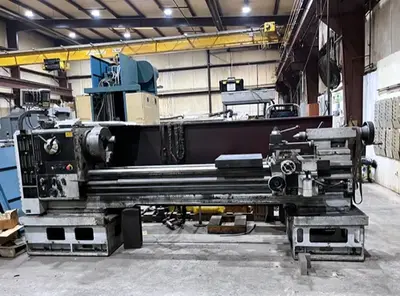

Used Harrison M550 GH. This pre-owned Engine Lathe is in great working condition and can be securely delivered to your facility floor. If you have any technical questions about this Harrison Engine Lathe we can review machine specifications. To request a quote, inquire about rigging and trucking or to schedule an inspection, contact us today.
Specs

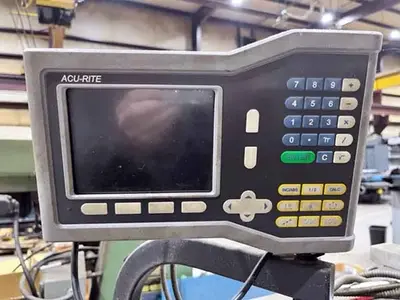

2-Axis Accurtie Digital Read Outs

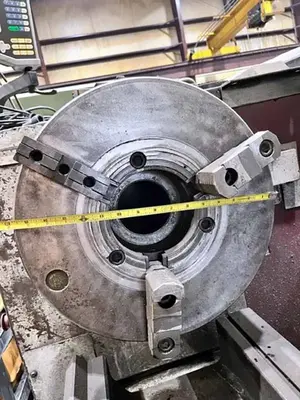

15 1/2" Chuck-3-Jaw

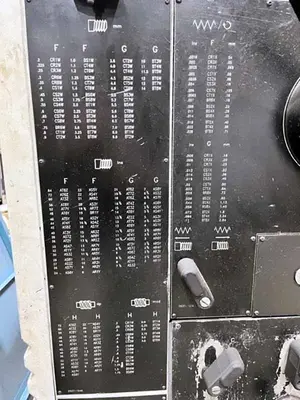

IN/MM Threading
Tailstock
Tool Post
Coolant
Machine Foot Print: (LxWxH) (inch) 180 x 63 x 57*
Voltage Required: 230/460Phase3
Max Swing over Bed: 21.81"
Swing over cross slide: 14.57"
Swing in Gap: 32.68"
DISTANCE BETWEEN CENTERS: 80"
Bed Width: 15.75"

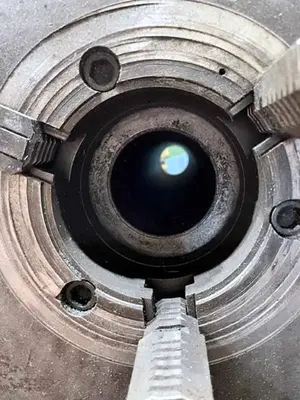

Spindle Bore: 3"
Spindle Nose Camlock: D1-11
Spindle Nose Taper: 5 MT
SPINDLE SPEED RANGE: RPM 18-1800
Chuck Size: 15.5"

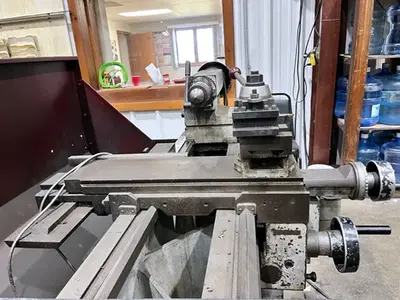

Cross slide travel: 11.81"
Cross Slide Width: 8"
Compound top slide travel: 7.5"
Tailstock Quill Diameter: 3.74"
Tailstock Quill Travel: 5.7"
Tailstock Quill Taper: 6 MT
Longitudinal Feed Range: 0.0016 – 0.11
Cross Feed Range (48): 0.0008 – 0.055
Number of Inch Pitches: 73
Range of inch pitches: 2 - 84
Number of Metric Pitches: 51
Range of metric pitches: 0.2 - 14
Number of Diametral Pitches: 27
Range of Diametral Pitches: 8 - 72
Number of Module Pitches: 27
Range of Module Pitches: 0.2 – 3.5
Voltage Required: 230/460Phase3
Machine Weight: 7,942 lbs.
Equipped With
2-Axis Accurtie Digital Read Outs
15 1/2" Chuck-3-Jaw
IN/MM Threading
Tailstock
Tool Post
Coolant
