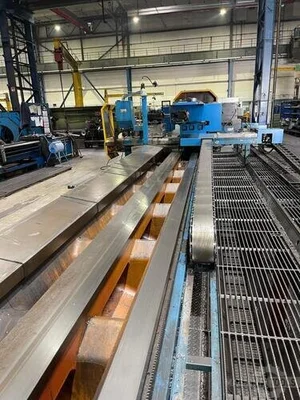

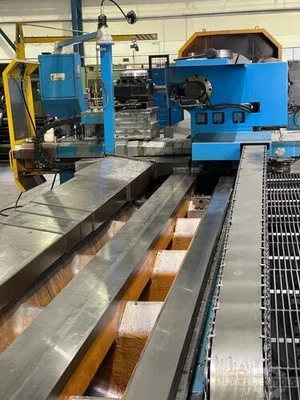

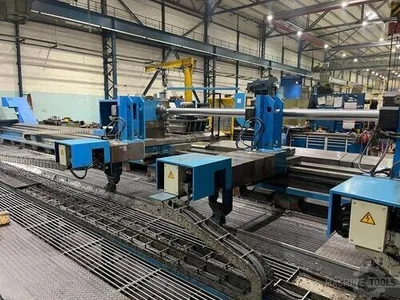

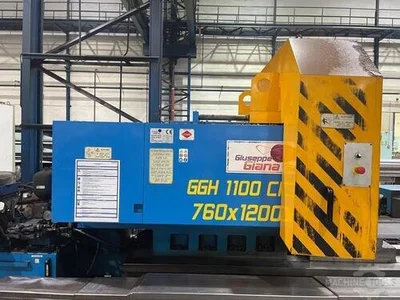

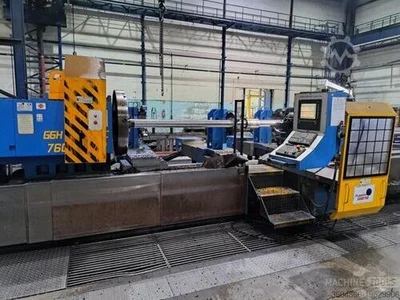

USED 2008 GIUSEPPE GIANA GGH 1100/760 X 12.000 CNC

3 bed way construction
Bed width 1100 mm

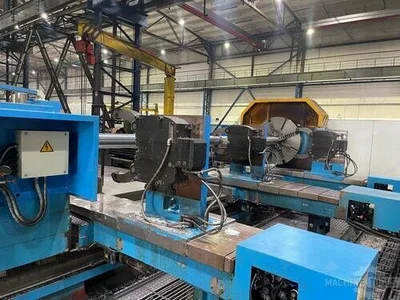

3 x C-Type Steady rest on lower base with in feed

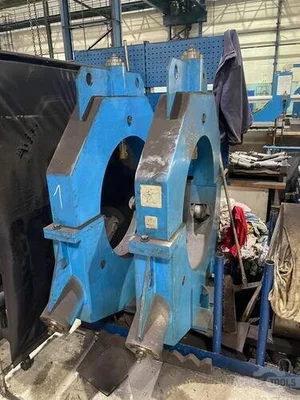

2 x Fixed steady rest 300 - 800 mm with 5 ton

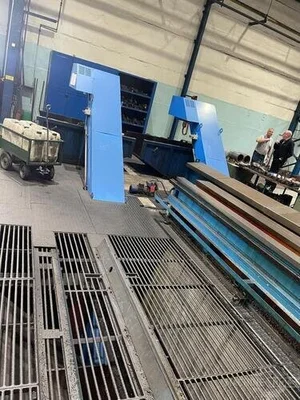

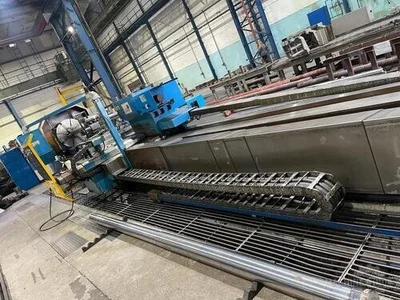

2 x Chip conveyor

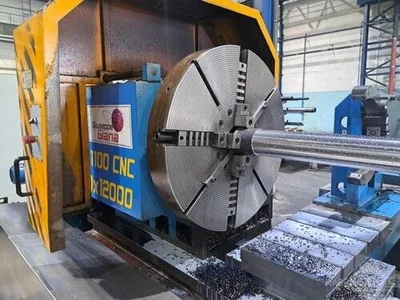

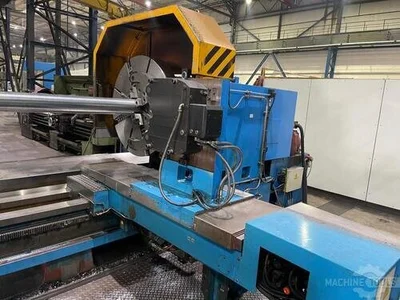

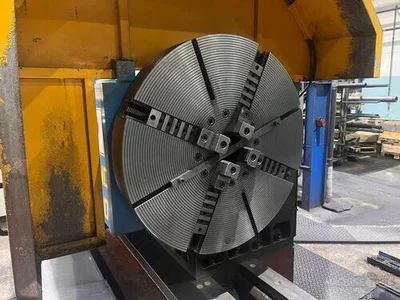

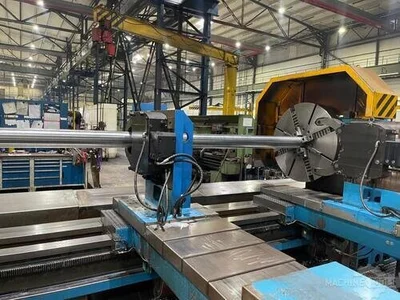

4 Chuck 1000 mm

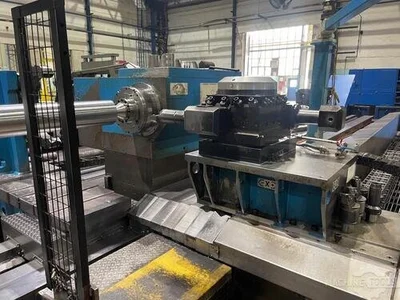

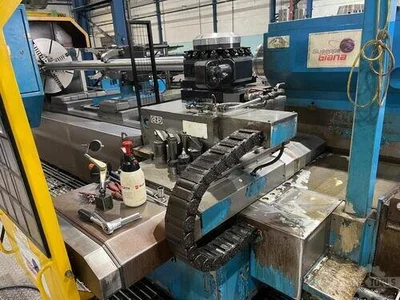

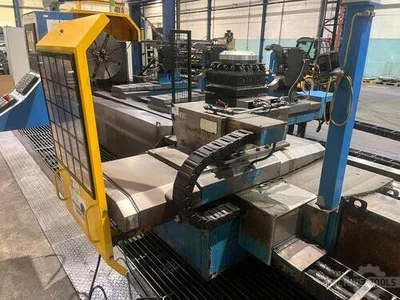

Barafuldi 4 way turret head

Swing over bed Ø: 1520 mm
Swing over cross slide Ø: 1140 mm
DBC Turning Length: 12000 mm
Spindle bore: 155 mm
Spindle power: 60 kW
Bed width: 1100 mm

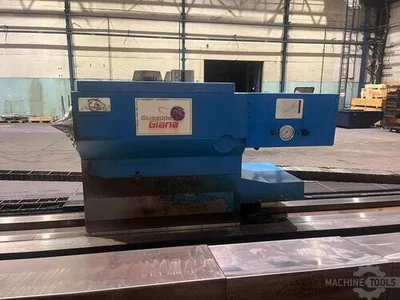

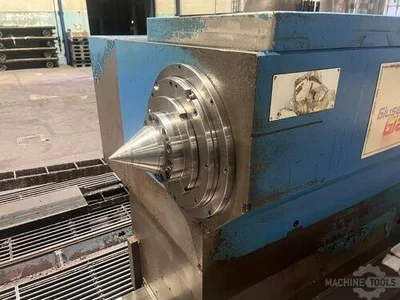

Tailstock spindle Ø: 310 Ø
Stroke pinole: 300 mm
Spindle taper: 1:4 taper Mk
Workpiece weight: 20000
Power: 80 A
Speeds / ranges: 0-800 Rpm
Feed rate X-Axis: 0-8000 mm/min.
Feed rate Z-Axis: 0-8000 mm/min.
Length: 23000 mm
Width: 7600 mm
Height: 3800 mm
Weight: 58000 kg
