USED 2015 HAAS DT-1

Ohio, United States
251Listings|106Followers
Overview
Drilling & Tapping Centers

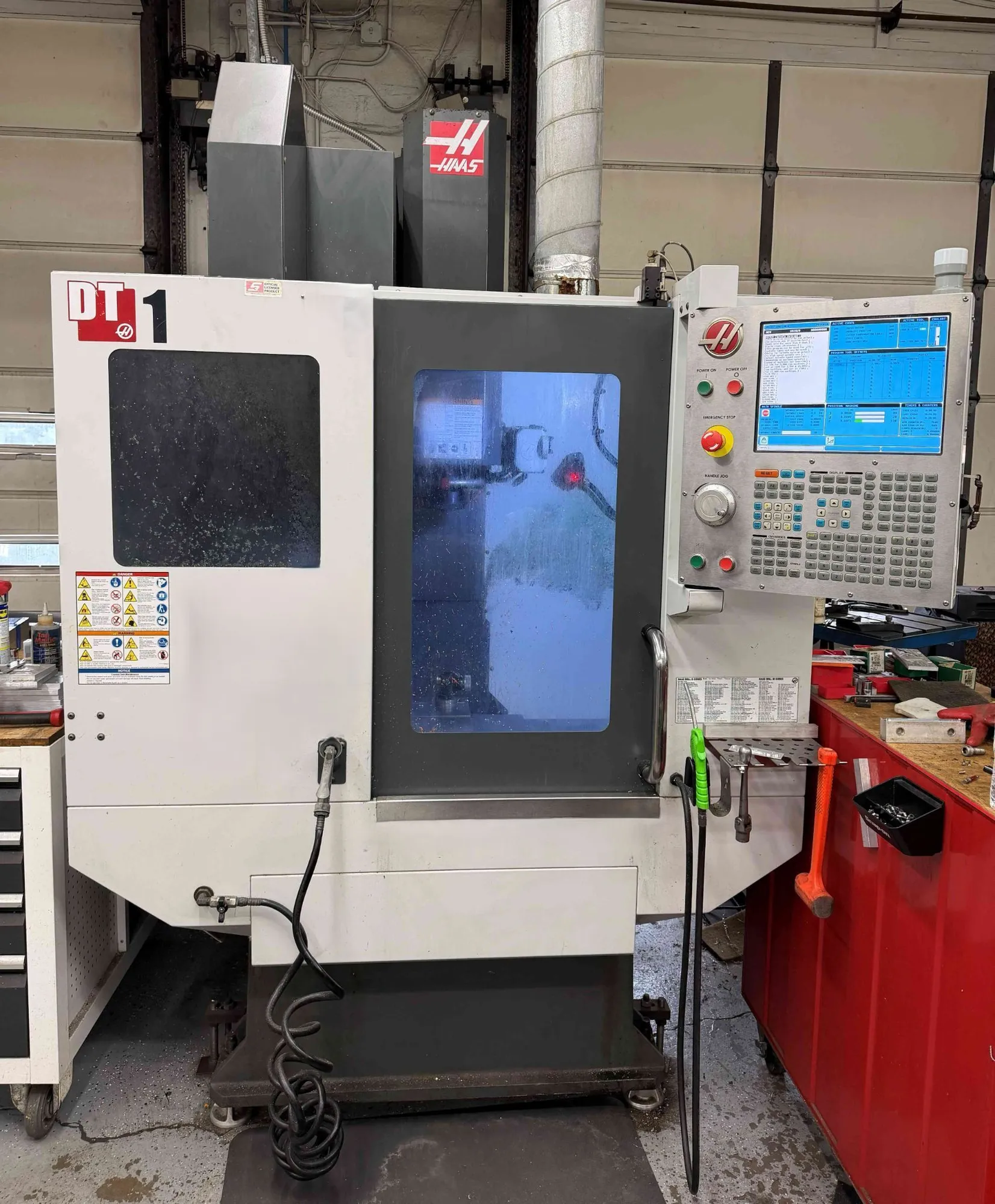

HAAS DT-1 Drill & Tap Center (used) New 2015 w/tooling package, low hours, Drill/Tap Center; 20" x 16" x 15.5" (508 x 406 x394 mm), BT30 taper, 15 hp (11.2 kW) vector drive, 15,000 rpm, 2400 ipm (61 m/min) rapids, high-speed 20+1 side-mount tool changer, power failure detection module, 1 MB program memory, 15" color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 45- gallon (170 L) flood-coolant system. Anchor kit highly
recommended for installation. (MUST BE ORDERED WITH DT-1 ANCHOR KIT)
DT-1 ANCHOR KIT Haas DT-1 Anchor Kit. Includes: - Haas Anchor Kit (1- 1/2 30-4535 kit)
- Chockfast Gray 11# Unit WIPS-R Wireless Intuitive Probing System, Includes Renishaw wireless tool setting probe and Renishaw wireless work offset probe, Macros, Spindle Orientation and Coordinate Rotation and Scaling. P-COOL Programmable coolant nozzle. REAR-LIFT-AUGER Rear Chip Lift Auger. Includes standard Chip Auger option. HSM High-Speed Machining with Look Ahead Feature.

Specs
X
20"
508 mm
Y
16"
406.4 mm
Z
15.5"
393.7 mm
Power
15 hp
11.2 kW
RPM
15,000 RPM
15,000 RPM
# ATC
20
20
Taper
BT30
BT30
Control
CNC
CNC

Drill/Tap Center; 20" x 16" x 15.5" (508 x 406 x
394 mm), BT30 taper, 15 hp (11.2 kW) vector
drive, 15,000 rpm, 2400 ipm (61 m/min) rapids,
high-speed 20+1 side-mount tool changer, power
failure detection module, 1 MB program memory,
15" color LCD monitor, USB port, memory lock
keyswitch, rigid tapping and 45- gallon (170 L)
flood-coolant system.

DT-1 ANCHOR KIT Haas DT-1 Anchor Kit. Includes:
- Haas Anchor Kit (1- 1/2 30-4535 kit)
- Chockfast Gray 11# Unit

WIPS-R Wireless Intuitive Probing System, Includes
Renishaw wireless tool setting probe and
Renishaw wireless work offset probe, Macros,
Spindle Orientation and Coordinate Rotation and
Scaling.

P-COOL Programmable coolant nozzle

REAR-LIFT-AUGER Rear Chip Lift Auger. Includes standard Chip
Auger option

HSM High-Speed Machining with Look Ahead Feature
