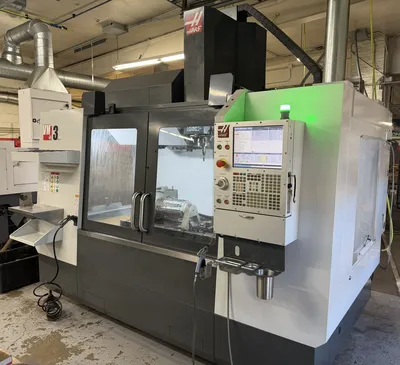

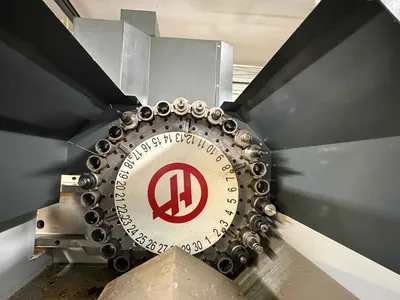

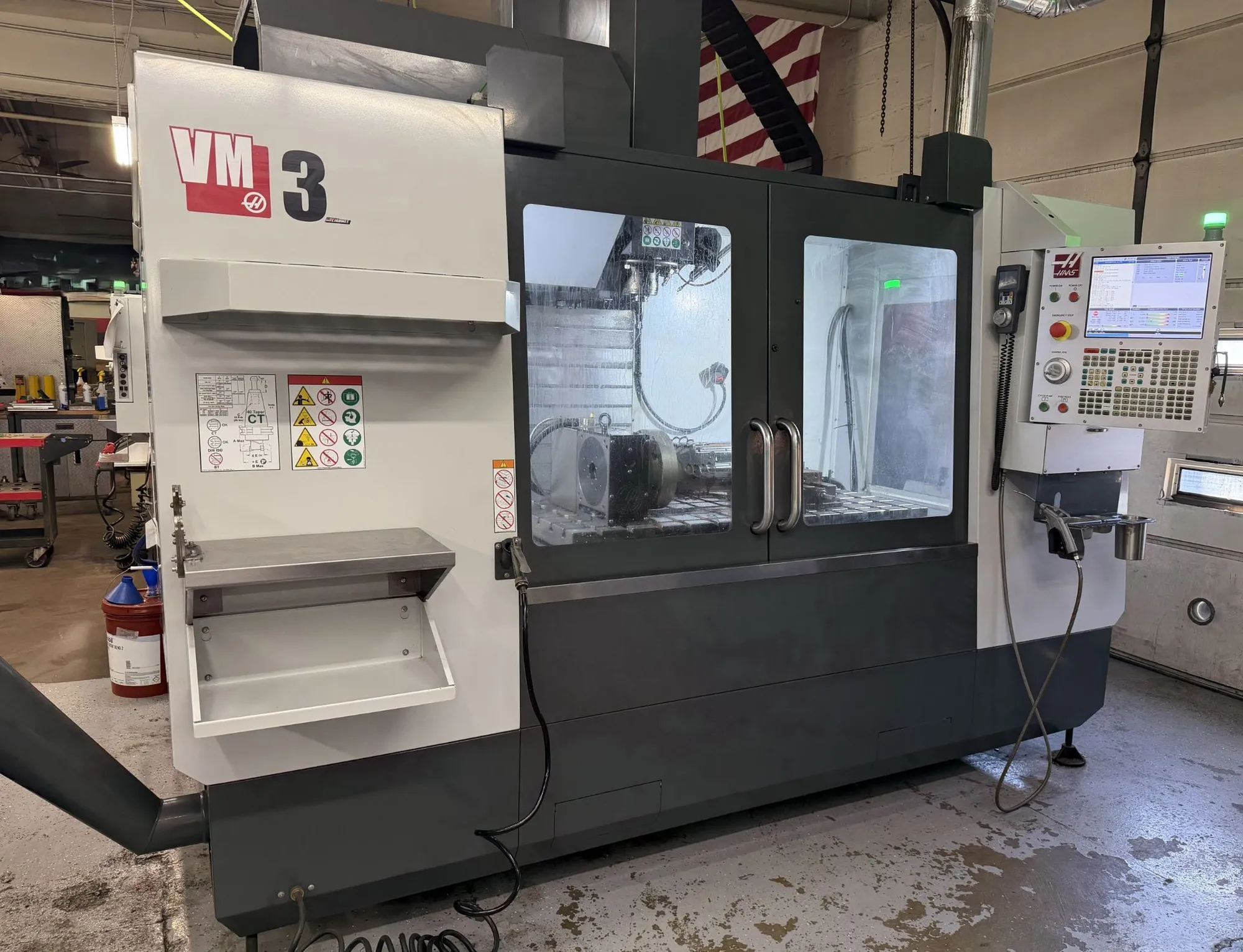

HAAS VM-3 Vertical Machining Center (used) New 10/2019 put in service 2020 - with tooling package - 40 taper, 30 hp (22.4 kW) vector drive, 12,000 rpm, inline direct-drive, side-mount tool changer, 710 ipm (18.0 m/min) rapids, automatic chip auger, remote jog handle, automatic air gun, high-speed machining, Ethernet interface, macros, coordinate rotation & scaling, programmable coolant nozzle, power-failure detection module, 1 GB program memory, 15' color LCD monitor, USB port, memory lock keyswitch, rigid tapping and 55-gallon (208 liter) flood coolant system, Through-Spindle Coolant, 1000 psi (69 bar), 4th Axis Drive & Wiring, Wireless Intuitive Probing System; Renishaw. Includes the Haas Visual Programming system, macros, spindle orientation, and coordinate rotation and scaling. COOLANT REFILL Automatic Coolant Refill System. Requires a customer-supplied external water source. Through-tool air blast. Requires the Haas through-spindle coolant (TSC) option. Available for inline spindles only. WIFI Camera; fully enclosed camera that mounts inside the machine enclosure, allowing remote viewing of machining operations via WIFI. 4th-axis drive for full 4th-axis operation.
| X | 40" | 1,016 mm |
| Y | 26" | 660.4 mm |
| Z | 25" | 635 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | 40 | 40 |
| Table-W | 25" | 635 mm |
| Table-L | 54" | 1,371.6 mm |
| # Axis | 4 | 4 |
| Control | CNC (HAAS) | CNC (HAAS) |
