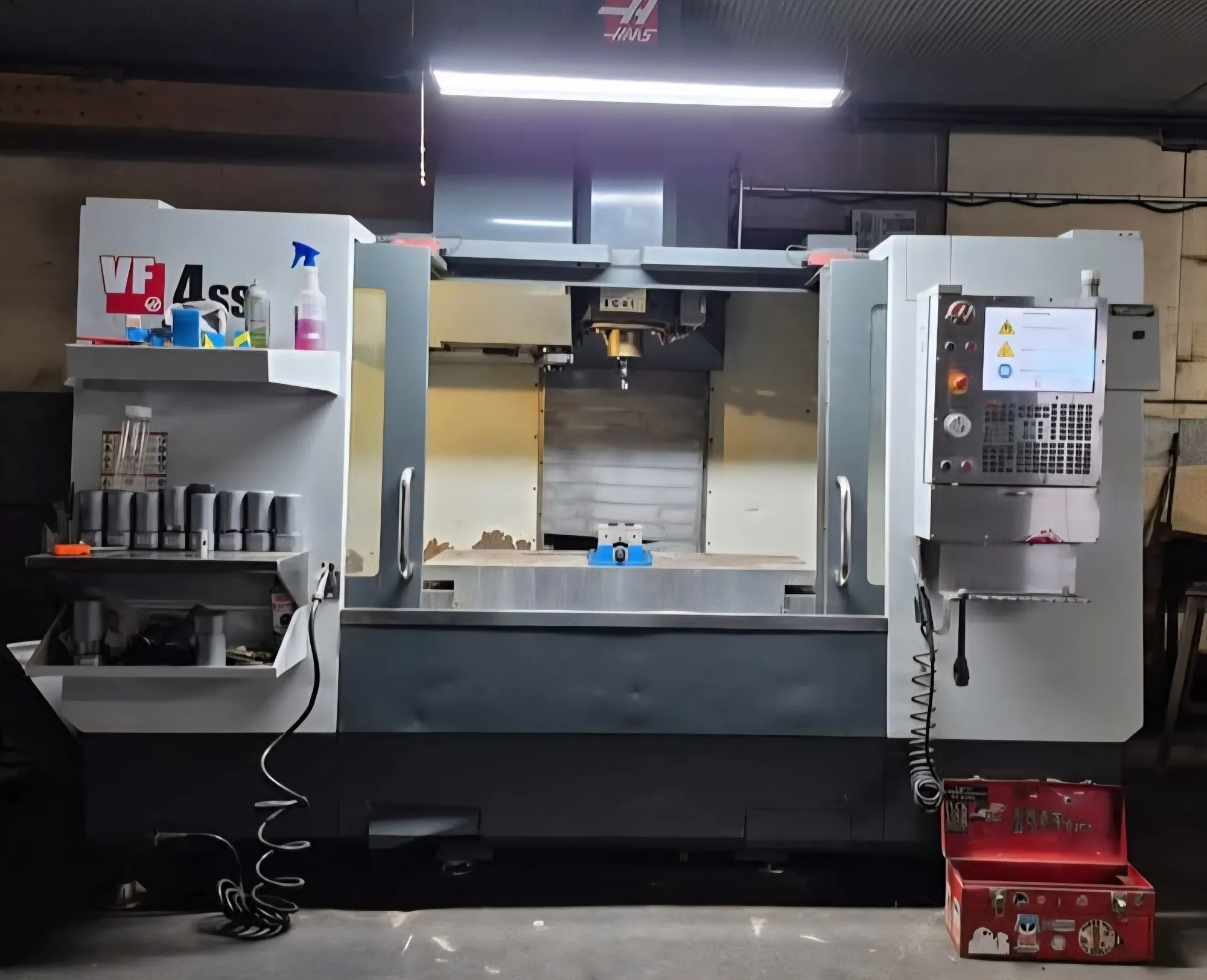

USED 2014 HAAS VF4-SS

2015 HAAS VF-4-SS CNC Vertical Machining Center

* New Listing in Michigan Shop for Inspection More Details
in Process. This is the VF-4 SS High Speed Arm Type More Expensive CNC VMC Model.

2015 HAAS VF-4-SS CNC Vertical Machining Center Confirming
Control Model Version.

* New Listing in Michigan Shop for Inspection More Details
in Process. This is the VF-4 SS High Speed Arm Type More Expensive CNC VMC Model.

Main Specifications:
TRAVELS
X Axis 50.0 in Y Axis 20.0 in
Z Axis 25.0 in
Spindle Nose to Table (~ max) 29.2 in
Spindle Nose to Table (~ min) 4.2 in

SPINDLE
Max Rating 30.0 hp
Max Speed 12000 rpm Max Torque 90.0 ft-lbf @ 2000 rpm
Drive System Inline Direct-Drive
Taper CAT 40
Bearing Lubrication Air / Oil Injection
Cooling Liquid Cooled

TABLE
Length 52.0 in
Width 19.5 in T-Slot Width 0.626 in to 0.630 in
T-Slot Center Distance 3.15 in
Number of Std T-Slots 5
Max Weight on Table (evenly distributed) 1750 lb

FEEDRATES
Max Cutting 833 ipm
Rapids on X 1400 ipm
Rapids on Y 1400 ipm
Rapids on Z 1400 ipm

AXIS MOTORS
Max Thrust X 3085 lbf
Max Thrust Y 3085 lbf
Max Thrust Z 3925 lbf

TOOL CHANGER
Type SMTC ARM Type
Capacity 30+1
Max Tool Diameter (full) 2.5 in
Max Tool Diameter (adjacent empty) 5.0 in
Max Tool Length (from gage line) 13 in
Max Tool Weight 12 lb
Tool-to-Tool (avg) 1.80 s
Chip-to-Chip (avg) 2.40 s

GENERAL
Coolant Capacity 55 gal
AIR REQUIREMENTS
Air Required 4 scfm @ 100 psi
Inline Air Hose 3/8 in
Coupler (Air) 3/8 in
Air Pressure Min 80 psi
DIMENSIONS - SHIPPING

Main Dimension Shipping 152.0 in x 99.0 in x 106.0 in
Weight 11,720 lb

ELECTRICAL SPECIFICATION
Spindle Speed 12000 RPM Drive System Inline Direct-Drive
Spindle Power 30.0 hp
Input AC Voltage (3 Phase) - Low 220 VAC
Full Load Amps (3 Phase) - Low 70 A
Input AC Voltage (3 Phase) - High* 440 VAC
Full Load Amps (3 Phase) - High* 35 A

Equipped With:
HASS CNC CONTROL
30 POSITION TOOL CHANGER
12,000 RPM SPINDLE CAT 40 TAPER
CHIP AUGER
ETHERNET INTERFACE
HIGH SPEED MACHINING
PROGRAMMABLE COOLANT NOZZLE
RIGID TAPPING
300 PSI COOLANT THRU SPINDLE
WINDOW BLAST
Note This Quote is a Guide Confirming All Options!.

Special Price: $ Neg. Confirming asap in talks Tuesday.

Note Working on Verifying Cutting Hours and machine ready
to run on inspection with low hours

Machine in Shop Under Power Confirming Price on Tuesday
on Interest.

I look forward to reviewing your interest and questions.
