USED 2019 MAKINO A61NX
Overview

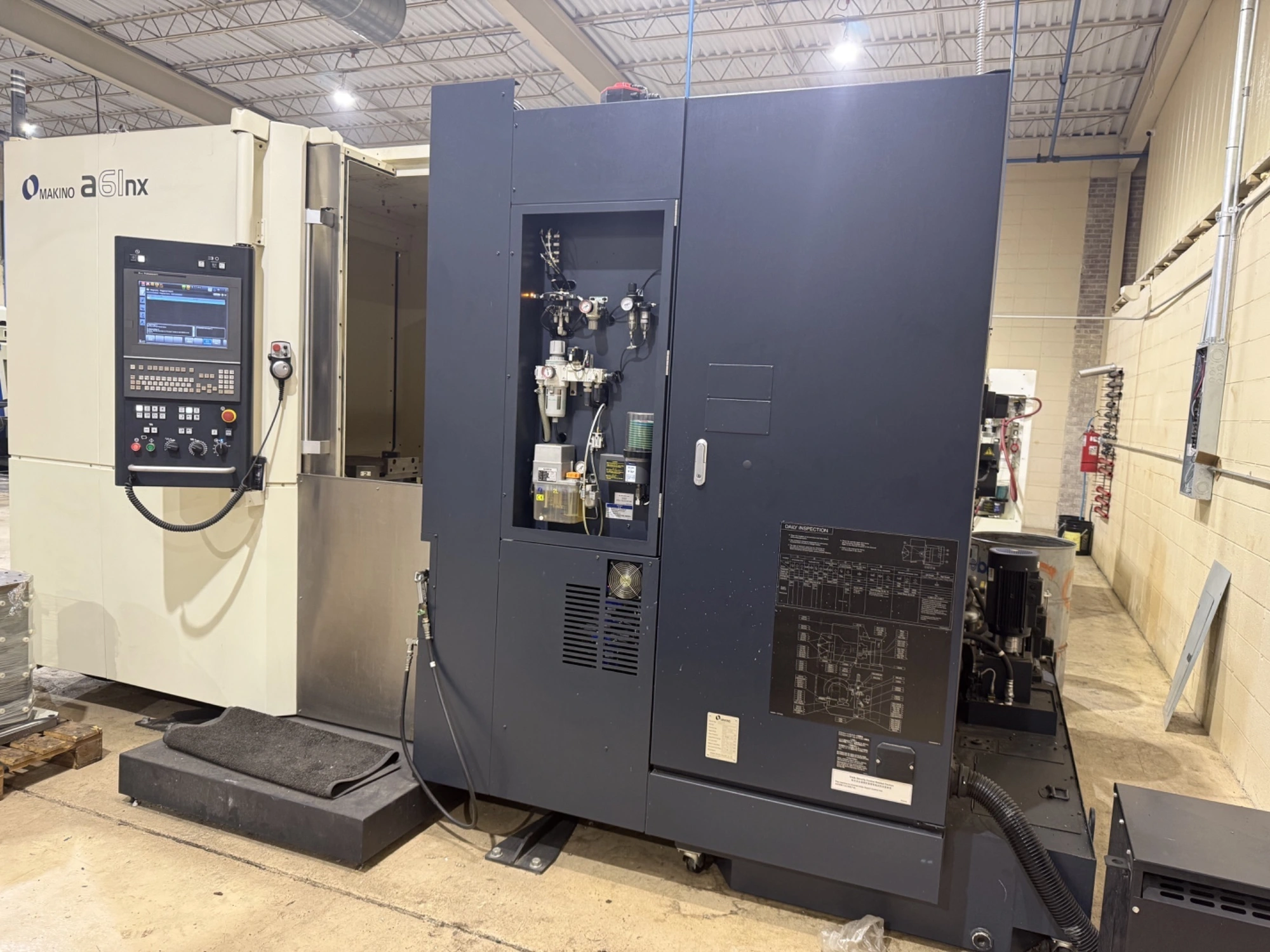

Makino A61NX 5-Axis - CNC Horizontal Machining Center with PRO 6, Delivered 2020, Only 53 Hours
Specs
Brand: Makino
Model: A61nx
Type: Horizontal Machining Center
Year: 2019
Number of Pallets: 2
Pallet Width: 19.7"
Pallet Length: 19.7"
Pallet Indexing: Full Contouring- 360,000 positions.
Max Workpiece Weight: 1,574 lbs
X-Axis Travel: 28.7"
Y-Axis Travel: 25.6"
Z-Axis Travel: 31.5"
Spindle Nose to Center of Pallet 3.9" - 35.4"
Spindle Speed: 50 to 14,000 RPM
Spindle Motor: 29.5 HP
Spindle Taper: CAT 40
Tool Changer Positions: 60
Floor Space Dimensions (W x D): 115” x 193”
Machine Weight: 27,000 lbs
Equipped With
Pro 6 CNC control
(1) Pallet has a 13.7" Diameter Tsudakoma RTV-304 5th Axis,
1,000 PSI through-Spindle Coolant
PQI/Renishaw OMP400 & NC4S Probing System (PROBE NOT INCL)
Upgraded memory - 2MB
Upgraded Super GI.5 Control - Super Geometric Intelligence Software SGI.5
Full Contouring 5th Axis Software
Titled Working Plane Command
Chip Conveyor & Coolant System
Like New Only 53 Cutting Hours
Price as equipped new: $650,000
Notes:
Machine Condition: Like New as inspected. Seller purchased new in 2019 delivered in 2020. 52 Cutting Hours per photo. Currently under power in plant in Mississippi.
TERMS:
Location Mississippi - “AS-IS, WHERE-IS”, with all faults, off seller’s floor. Full Payment due prior to shipment. Buyer pays for removal. Immediate availability, subject to prior sale. Under power and available for in-person inspection. All specifications are assumed to be correct but must be confirmed by the purchasing entity.
