Mazak AJV 25/404 Double Column VMC; 2 Pallet Changer, M-32 Control, 40" x 20" x 18" Travels, Chip Conveyor

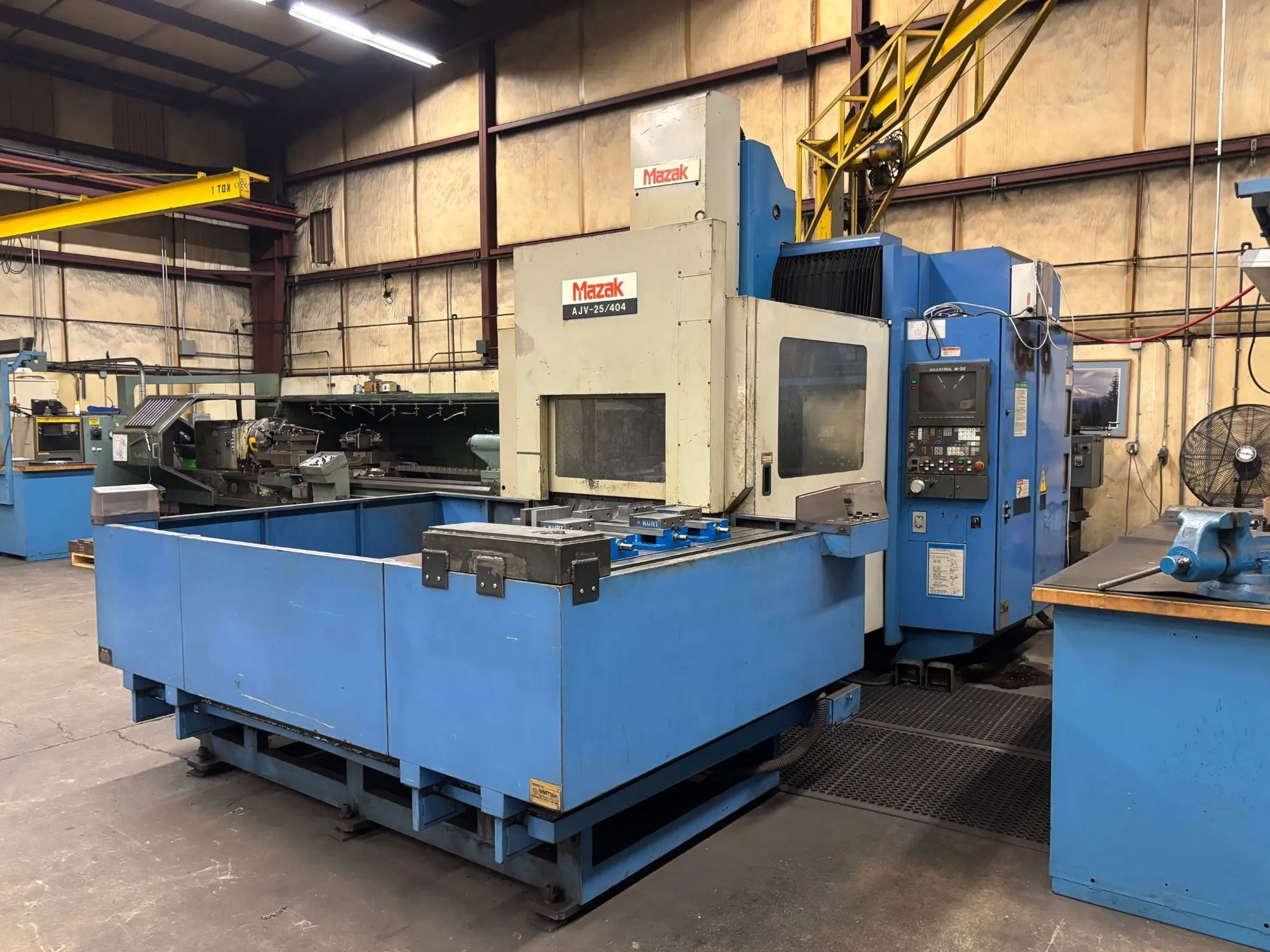

Mazak AJV 25/404 Double Column CNC Vertical Mill
New: 1991
Specifications:
Travels:
X-Axis: 39.37"
Y-Axis: 20"
Z-Axis: 18"
Spindle Speed: 10,000 RPM
Spindle Motor: 25/20 HP
Spindle Taper: #40
Tool Magazine: 40 ATC
Table Size: 48.8" x 19.68" (x2)
Column Distance: 25.59"
Table Load Capacity: 1,760 Lbs
Table Top to Spindle: 7.87" - 26"
Equipped With:
Mazatrol M-32 CNC Control
(2) Pallet CHanger
40 Position ATC
Approx Dimensions 231"x108"x120"
Approx Weight 18,960 Ibs.
| X Axis Travel | 39.37" | 1,000 mm |
| Y Axis Travel | 20" | 508 mm |
| Z Axis Travel | 18" | 457.2 mm |
| Distance From Spindle To Column | 7.87" - 26" | 7.87" - 26" |
| Spindle Motor | 25 hp | 18.6 kW |
| Spindle Speed | 10,000 RPM | 10,000 RPM |
| ATC Capacity | 40 | 40 |
| Spindle Taper | 40 | 40 |
| # Axis | 0 | 0 |
| Table dimensions | 48.8" x 19.68" | 48.8" x 19.68" |
| Max. Table Load | 1,760 Lbs | 1,760 Lbs |
| Dimensions | 231" x 108" x 120" | 231" x 108" x 120" |
| Weight | 18,960 Lbs | 18,960 Lbs |
Mazatrol M-32 CNC Control
(2) Pallet Changer
Chip Conveyor
