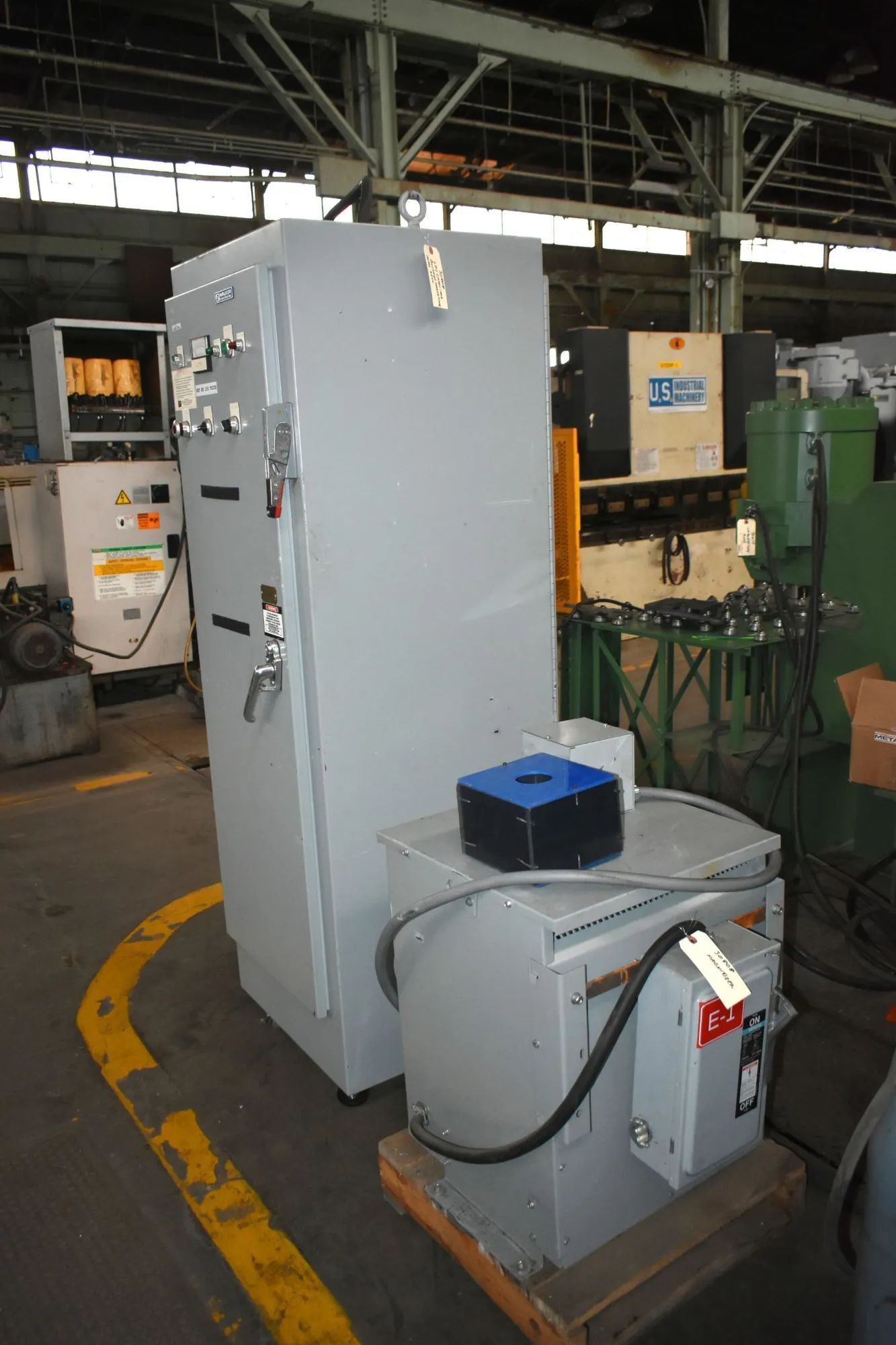

USED Walker Scientific LDJ Electronics 6602

6602-1 WALKER SCIENTIFIC LDJ ELECTRONICS CAPACITOR DISCHARGE MAGNETIZER CDM
Serial No 030351887804, Model 6602-1

EQUIPPED WITH:
Upright Console w/Shelf
25 KVA Rex Manufacturing Transformer (Cat No SA25HK, Serial No U40233)

CATALOG SPECIFICATIONS:
Discharge Energy, Range 2.5 to 60 kj
MTBF (Cycles) 1,000,000+
Discharge Voltage, Range 0 to 600 Volts
Magnetizing Energy 7500 JOULES
Peak Discharge Current, Maximum 20000 AMPS
Power Requirements Voltage 440/240 VOLTS

NOTE: These Magnetizers Are Ideally Suited For High Volume Production
Magnetizing. Magnetizes-Samarium Cobalt (SmCo), Neodymium Iron Boron
(NdFeB), Ferrite (Ceramic), And Alnico (All Grades). Magnetizes
Fully Assembled Or Partially Assembled Permanent Magnet Motors.
The Capacitor Discharge Magnetizer (CDM) Works On The Principle Of
Storing Energy In A Capacitor Over A Relatively Long Period Of Time
(5 to 10 Seconds) And Then Discharging This Energy Into A Magnetizing
Coil Over A Relatively Short Period Of Time (5 to 100 Milliseconds).
Making It Possible To Achieve Extremely High Peak Magnetizing Fields.

F.O.B. OUR WAREHOUSE
