USED 2022 HAAS ST-10
Overview

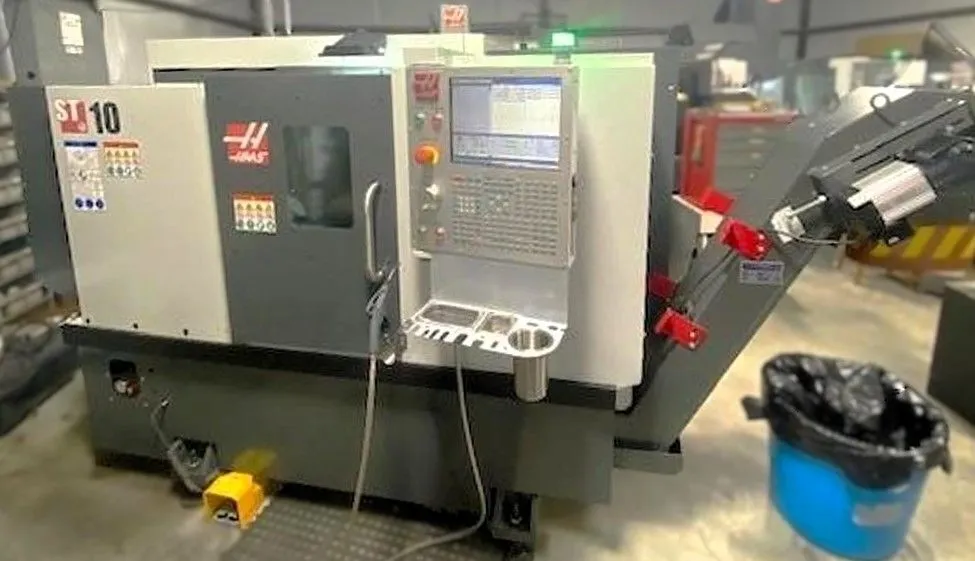

HAAS ST-10 CNC Turning Center, New in 2022.
--ONLY 171 Cutting Hours!--
Tool Presetter.
Chip Conveyor.
Rigid Tap.
6.5" Hydraulic Chuck.
Royal Collet Chuck.
Specs
General Specifications:
Machine Control Haas NextGen Control
Chuck Size 6.5" / 1.75" Thru hole
Maximum Swing 25.25"
Maximum Swing Over Cross Slide 16.25"
Maximum Machining Diameter 14"
Maximum Machining Length 14"
X-Axis Travel 7.88"
Z-Axis Travel 14"
Spindle Nose / Bore / Bar Capacity A2-5" / 2.31" / 1.75"
Spindle Speeds 6,000 RPM
Spindle Motor 15 HP
Number of Turret Positions 12 Bolt on Style Turret
Spindle Torque 75 ft/lbs.
Rapid Traverse Rates 1,200 IPM
Machine Dimensions LxWxH 92"x55"x69"
Machine Weight 6,420 lbs
Equipped With
6.5" 3 Jaw Hydraulic Chuck
Royal Quick-Change Collet Chuck
Automatic Tool Presetter
Belt Type Chip Conveyor
User Definable Macros
Visual Part Programming System
Rigid Tapping
Touch Screen Control
15" LCD Color Monitor
WIFI Early Power Failure Detection Module
Advanced Tool Management
Media Display M-Code M130
Haas Connect
Remote Monitoring
Safe Run
Haas Drop
1 GB Program Memory
Ethernet Interface
USB Port Interface
RS 232 Port Interface
**1,303 Power On Hours**
**171 Total Cut Hours**
