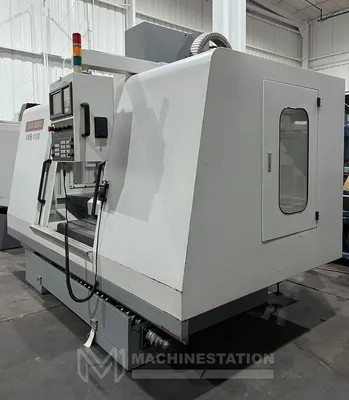

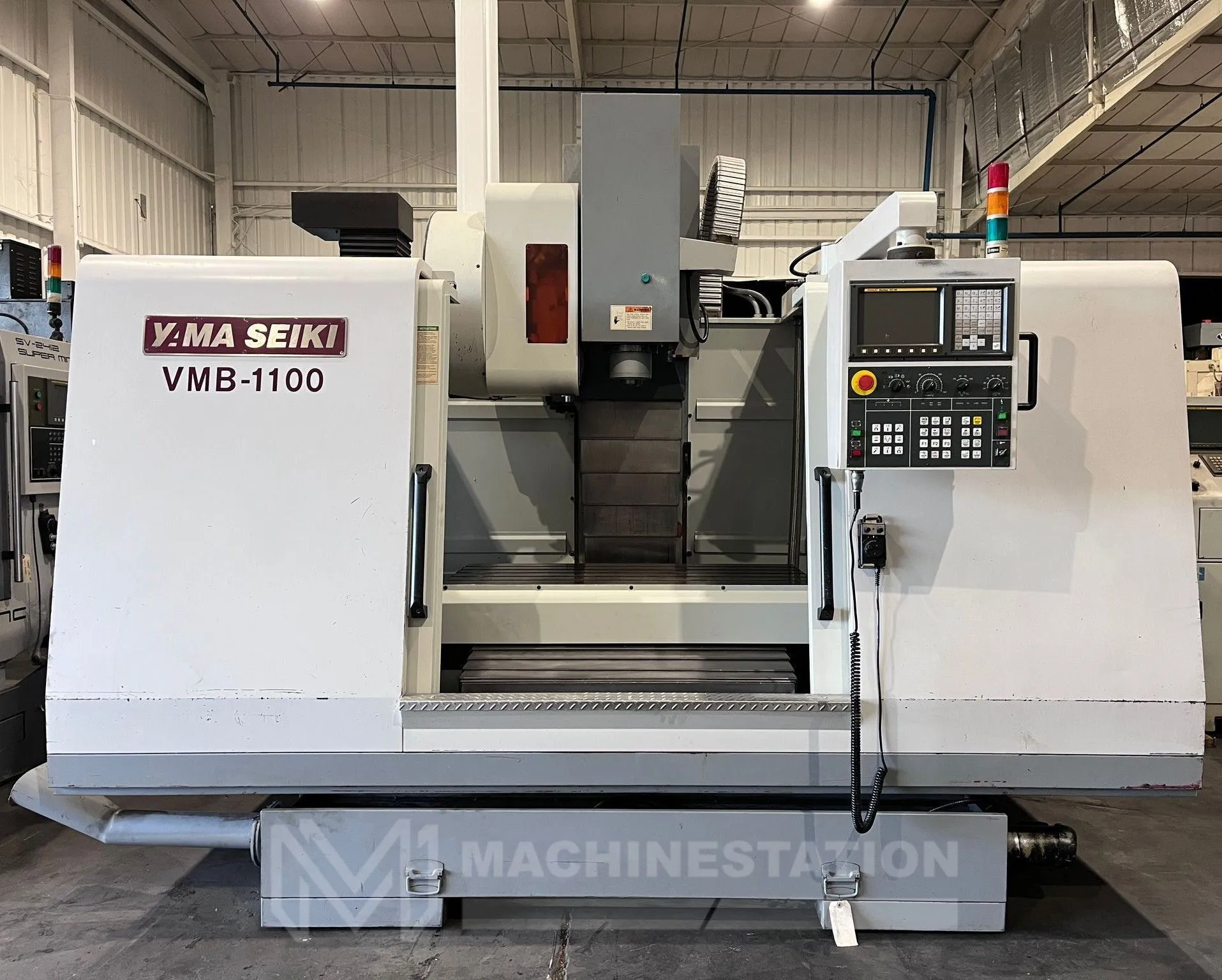

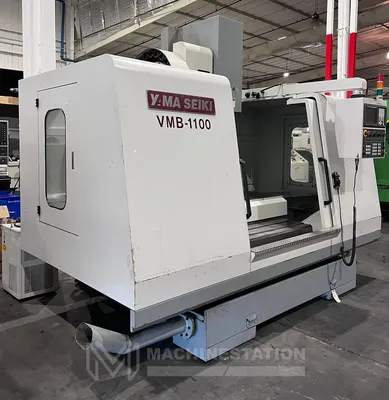

USED 2002 YAMA SEIKI VMB-1100
Overview
Specifications
| X Axis | 43.3" | 1,099.8 mm |
|---|---|---|
| Y Axis | 23.6" | 599.44 mm |
| Z Axis | 23.6" | 599.44 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 51.2" | 1,300.5 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc Oi-M) | CNC (Fanuc Oi-M) |
| Dimensions | 123″ x 90″ x 110″ | 123″ x 90″ x 110″ |
| Weight | 15500 lbs | 15500 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:
Fanuc Oi-M CNC Control
Box Way Construction
8000 RPM Spindle
24 Station Automatic Tool Changer
Rigid Tapping
Coolant System

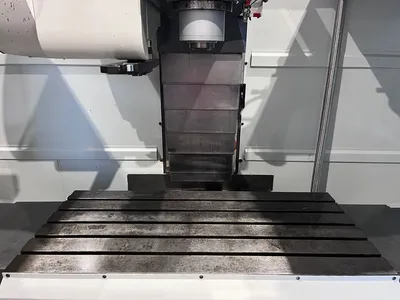

Table:
Length: 51.2″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2650 lbs
Travel:
X-Axis: 43.3″
Y-Axis: 23.6″
Z-Axis: 23.6″
Rapid Traverse Rates: 945 Inch Per Minute
Cutting Feed Rates: 788 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.9″ – 28.5″

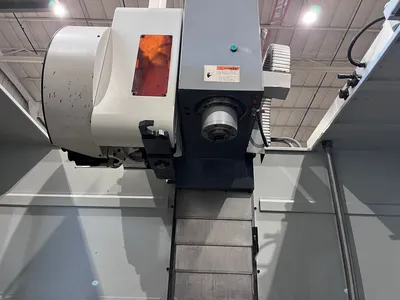

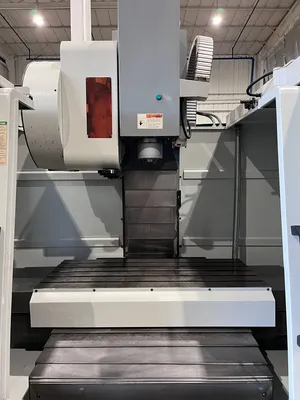

Spindle:
Taper Size: CAT-40
Speed Range: 8000 RPM
Spindle Power: 20 HP

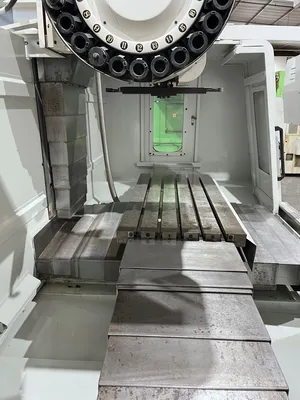

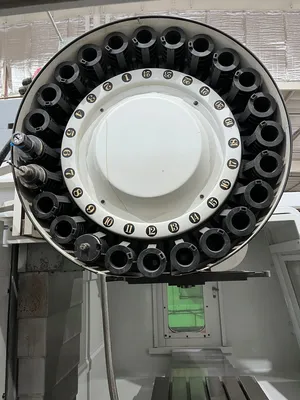

Tool changer:
Capacity: 24 Station
Max Tool Weight: 18 lbs
Max Tool Dia: 3.5″ – 5.9″
Max Tool Length: 9.84″
Tool Changing Time: 2.7 Seconds
General:
Air Required: 85 psi, 6 scfm

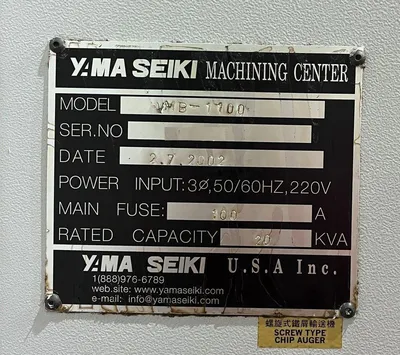

Power: 220v / 50/60 Hz / 3-Phase / 20 kva
Overall Dimensions: 123″ x 90″ x 110″ High
Weight: 15,500 lbs
Equipped With

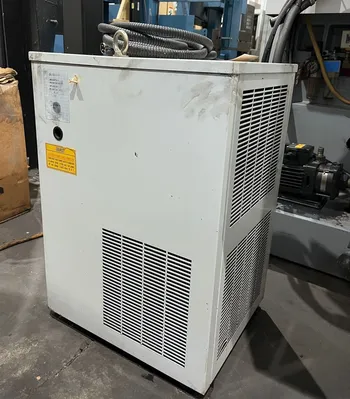

Spindle Chiller Unit
Screw Type Chip Auger
MPG Handwheel Control
