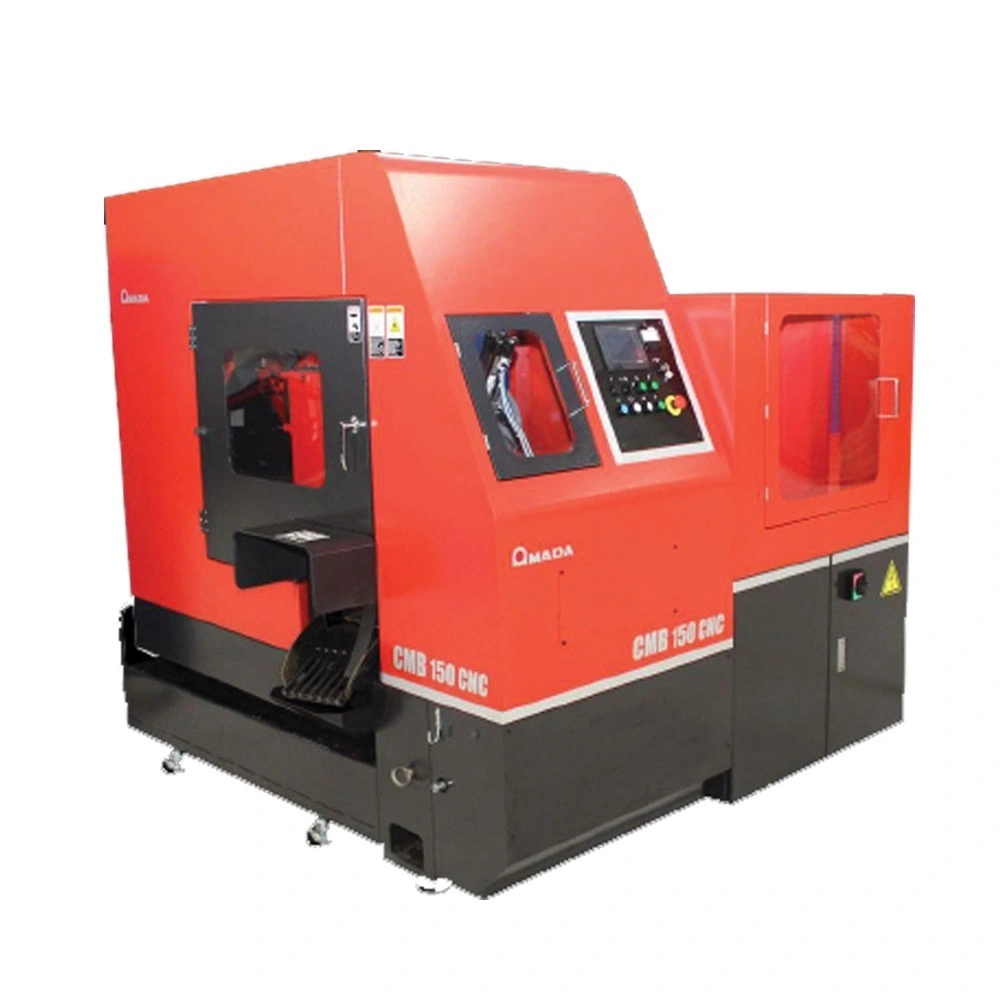

NEW AMADA CMB-150CNC

High Precision Cutting with Short Cycle Times

• 15 H.P.
• Incline Table
• Chip Conveyor
• Cut Piece Counter
• Anti-Backlash Device
• Sorting Device

FEATURES
• High-Speed, High-Precision Cutting
- Parts are cut using an oblique-slide cutting mechanism. This ensures high precision positioning to +/- 0.01mm and an optimal rake angle for cutting bar steel. This design improves stability, resulting in higher precision and enhanced cutting rates.
• AMADA MACHINERY’S Unique Carbide Tipped Tool
- The saw blade is a very important factor in realizing high speed, high precision cutting. Amada has developed a unique carbide-tipped circular saw that cuts cleanly and virtually burr-free.
• Capable of Cutting a Variety of Metal Materials
- This machine can cut a wide variety of materials including round bar and flat bar in a range of materials like mild steel, stainless steel, tools steels, and nonferrous materials.
• Spray-mist Lubricant Reduces Cutting Fluid Cleanup
- This machine incorporates a semi-dry cut system that generates eco-friendly oil mist, thus work pieces get less wet while cutting; resulting in simplified downstream processes.
• No Clean-Up Process Needed for the Cut-Face
- This machine makes highly precise cuts, the resulting cut-face being very clean. By eliminating the surfacing work, like when materials are band saw cut, the total processing time is greatly reduced.
• Longer Circular Saw Blade Life
- Using an oblique-slide (from the upper oblique direction) cutting mechanism and cermet carbide pads, which dampen most vibrations that result from cutting, lessens the wear of the sal blade. Resulting in a much greater service life of the circular blades and noticeably reducing the costs/cut.
