USED 2007 AMADA EMK-3610NT

Amada EMK-3610NT Servo Drive CNC Turret Punch

General Info

Stock #: 163260004
Location: TN
Brand: Amada
Model: EMK-3610NT
Year: 2007
Approx. Shipping Weight: 54,000 lbs
Approx. Shipping Dimensions: 210" L x 245" W x 95" H

Specifications

Capacity: 33 Tons
Max Sheet Size: 196.85" x 60"
Throat Depth: 50"
X-Axis Travel: 98.425"
Y-Axis Travel: 60"
Stroke: 1.45"
Max Sheet Thickness: .187"
Punch Accuracy: +/- .004"
Turret Tooling Style: Thick
Turret Rotation Speed: 30 RPM
Feed Clearance: .984"

Equipped With

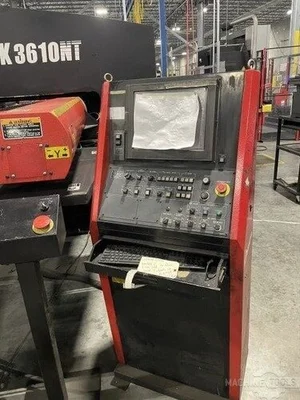

Servo-Driven Ram, NT Control, 58-Station Turret w/ (4) Auto Index Stations, (3) Work Clamps, Brush Table, Slug Conveyor

Additional Info
This machine can be inspected under power upon request.
