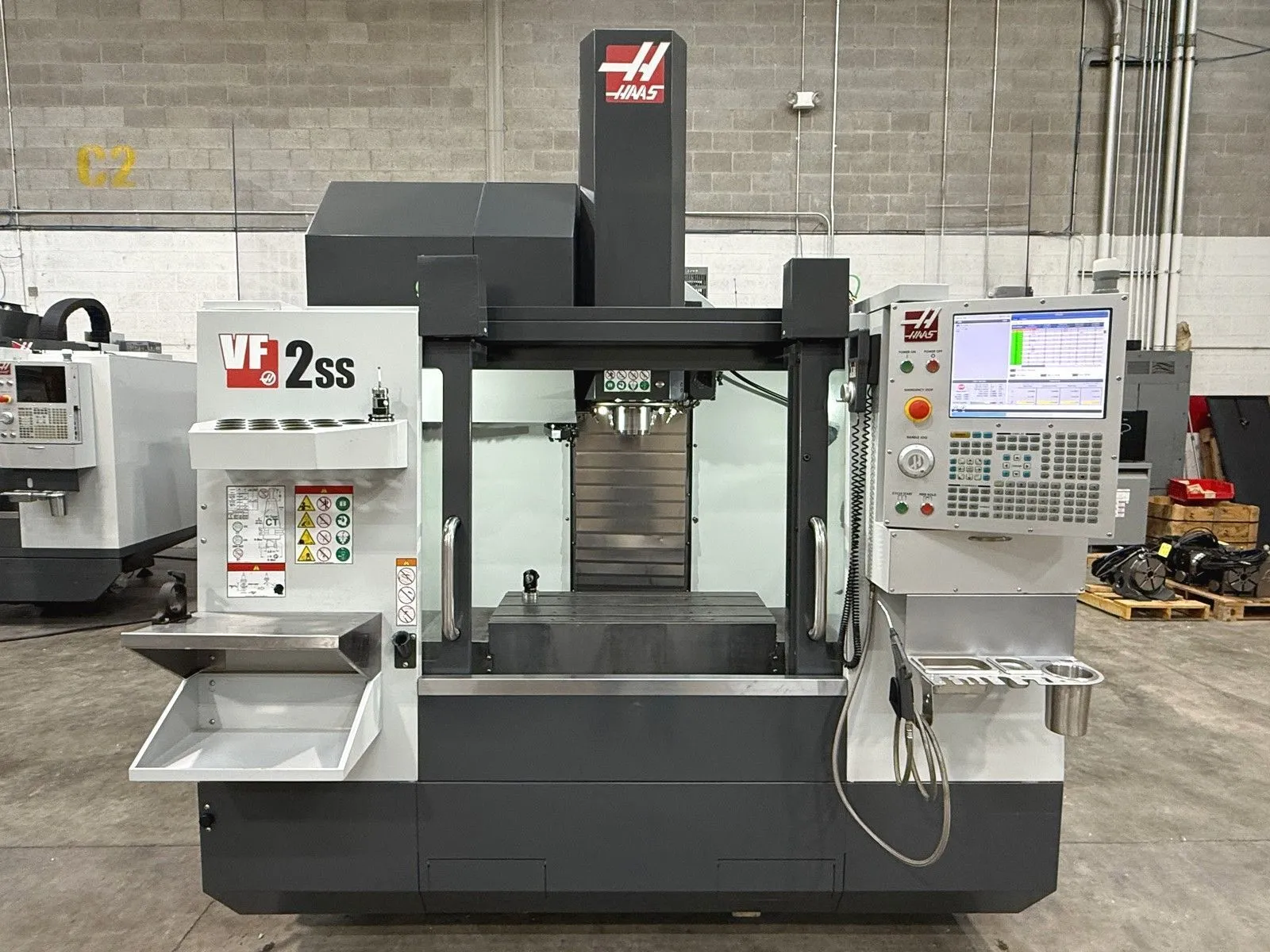

2020 Haas VF-2SS CNC VMC with Work/Tool Probing, 4th Axis Drive/Wiring, Programmable Coolant Nozzle, Remote Jog Handle, Chip Auger, Rigid Tapping, Macros, Coordinate Rotation and Scaling, High Speed Machining, M19 Spindle Orientation, 12000rpm Spindle, 30 Station ATC, 440V-3P Internal Transformer. On Our Floor in Grand Rapids, Michigan.
| X | 30" | 762 mm |
| Y | 16" | 406.4 mm |
| Z | 20" | 508 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 30 | 30 |
| Taper | CAT-40 | CAT-40 |
| Table-W | 14" | 355.6 mm |
| Table-L | 36" | 914.4 mm |
| # Axis | 3 | 3 |
| Dimensions | 95" x 90" x 102 | 95" x 90" x 102 |
| Weight | 9000lbs | 9000lbs |
30" X-Axis Travel
16" Y-Axis Travel
20" Z-Axis Travel
4"-24" Spindle Nose to Table
36" x 14" Table Size
12000rpm Spindle Speed
CAT-40 Spindle Taper
30HP Spindle Motor
8500lb Machine Weight
95" x 90" x 102" LxWxH
440V-3Ph
Work and Tool Probe Systems
Chip Auger
Programmable Coolant Nozzle
4th Axis Drive/Wiring
Remote Jog Handle
Rigid Tapping
Macros
Coordinate Rotation and Scaling
M19 Spindle Orientation
High Speed Machining
Standard Coolant Tank/Pump
