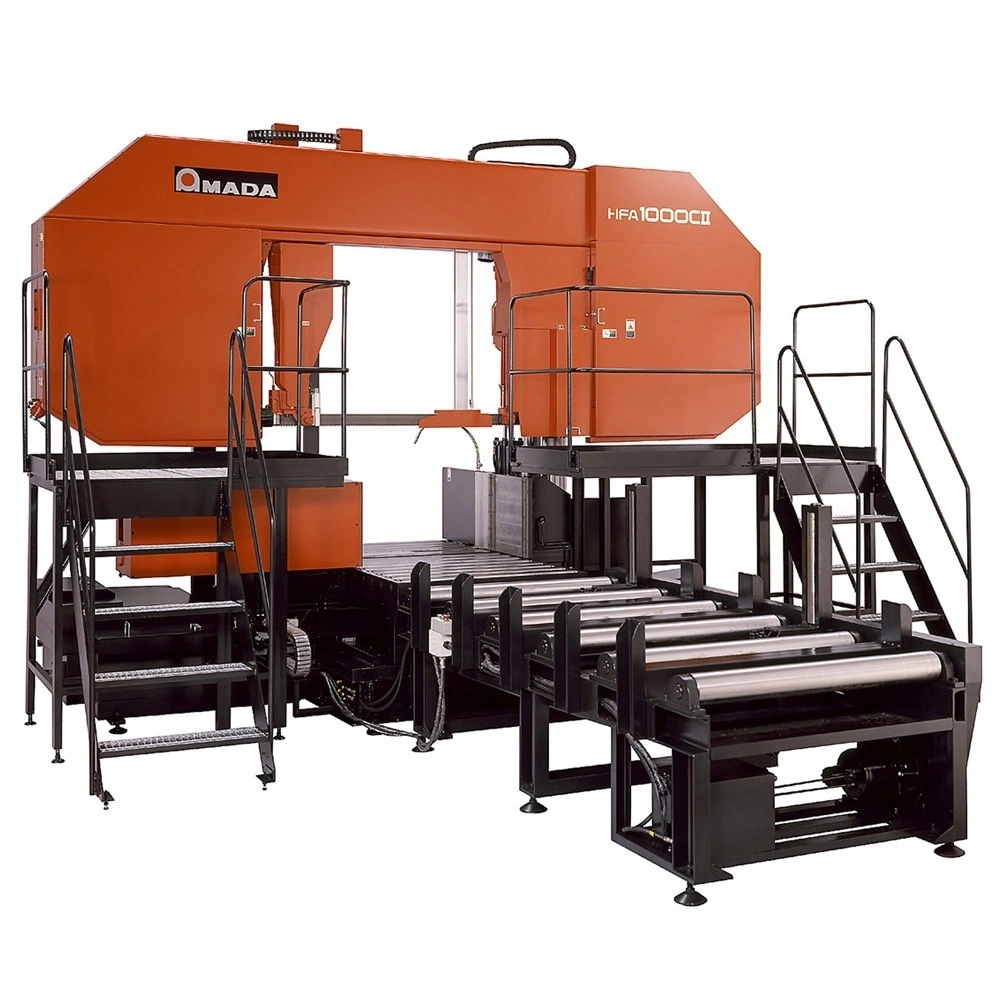

NEW AMADA HFA1000CII

Automatic Metal Cutting Band Saw

• 15 H.P.
• 3″ Blade
• Automatic Positioned Guide Arm
• CNC Controlled Down Feed
• Vibration Damping Rollers

FEATURES
• High Accuracy for Large-Sized Materials
- This machine supports from 15.7″ x 3.9″ to 43″ x 40″
- High accuracy cutting, and durability
• Drive-by No Torque Loss Helical Bevel Gear
• Outboard Vise
• Automatically Positioned Guide Arm
• Blade Deviation Monitor
• Blade Speed Controlled By Inverter
• Chip Conveyor
• CNC Controlled Down Feed
• Drive by No Torque Loss Helical Bevel Gear
• Full Stroke Vises
• Hydraulic Blade Tensioning
• Kerf Compensation
• Motion Detector
• Piece Counter
• Outboard Vise
• Vibration Damping Rollers
• Wheel Cover Limit Switch

Cutting Capacity:
Round (Diameter) 15.7″ – 40″ 400 – 1000 mm
Rectangle (W x H) 15.7″ x 3.9″ – 43″ x 40″ 400 x 100 mm – 1100 x 1000 mm

Work Load Capacity 33,069 lbs 15,000 kg

Saw Blade:
Blade Size (L x T x W) 36′ 6″ x 0.063″ x 3″ 11100 x 1.6 x 80 mm
Blade Speed 49- 394 ft./min by Inverter 15-120 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Quick Approach Feeler
Cutting Control CNC-Lite, Hydraulic Flow Control Valve with Stepping Motor

Vise Operation
Type Front and Rear Vise
Control Hydraulic Full-Stroke Cylinder

Motors:
Saw Blade 15 HP 11 kW
Hydraulic Pump 5 HP 3.7 kW
Cutting Fluid Pump 1/2 HP 0.36 kW

Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz
All Other Voltages Require Transformer
Power Requirement 26 kVA

Cutting Fluid
Tank Capacity 66.1 gal 250 liters
Pump Type Electric

Hydraulic:
Tank Capacity 30.4 gal 115 liters
Pump Type Vane Pump
Pressure Setting 784 psi 5.5 MPa (55 kgf/cm2)

Chip Disposal Chip Conveyor

Material Index:
Index Mechanism Shuttle Type
Stroke 19.6″ 500 mm
Length 0.39″ – 99.999″ 10-9999.9 mm
Number of Input Block/Station 1-99
Number of Cut-Off Pieces 1-9999
Remnant Length (For Clamp Clearance of 0.79″ /20 mm) 13″ Plus Length of Parts 330 mm Plus Length of Parts

Machine Dimensions (W x L x H)
Head-Up Position 211.3″ x 126.6″ x 154.1″ 5420 x 3215 x 3924 mm
Head Down Position 211.3″ x 126.6″ x 154.1″ 5420 x 3215 x 3924 mm

Table Height 33.5″ 850 mm

Machine Weight 31,970 lbs 14,500 kg
