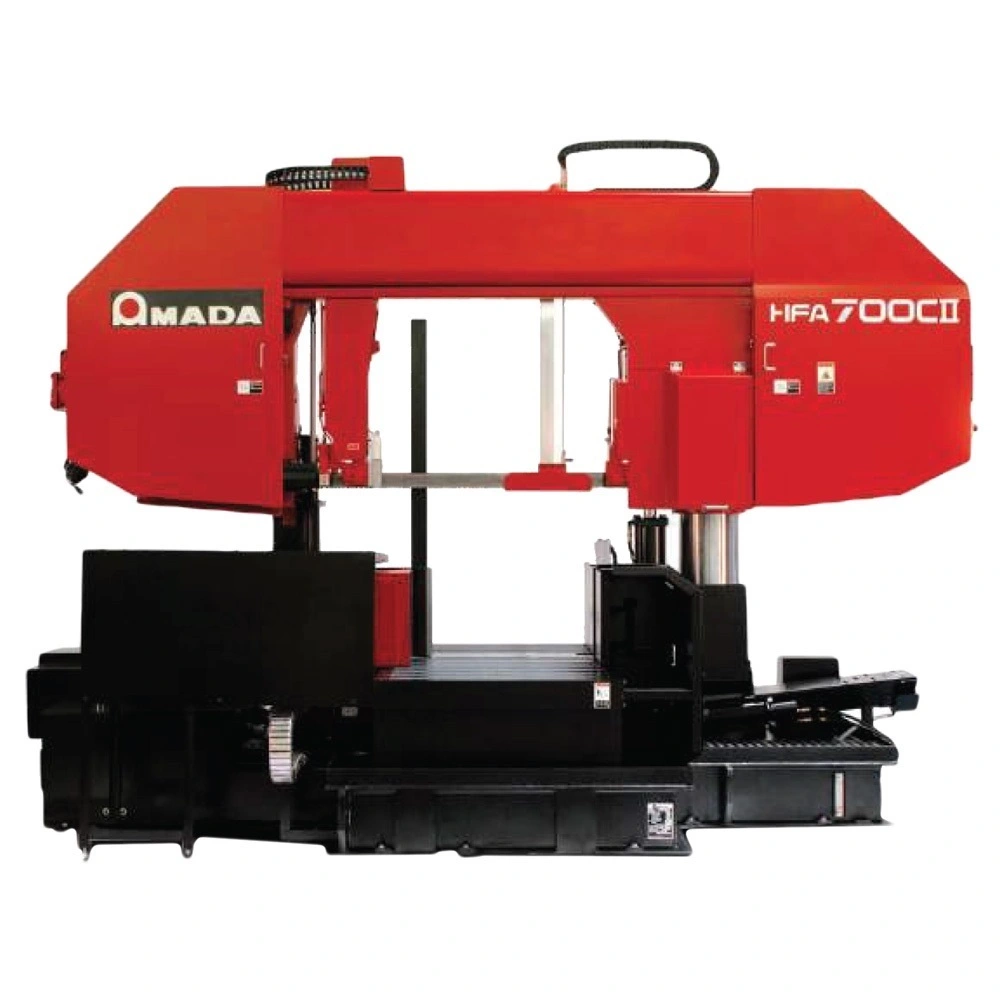

NEW AMADA HFA-700CII

Automatic Metal Cutting Band Saw

• 15 H.P.
• 2-5/8″ Blade
• Automatic Positioned Guide Arm
• CNC Controlled Down Feed
• Vibration Damping Rollers

FEATURES
• Automatically Positioned Guide Arm
• Blade Deviation Monitor
• Blade Speed Controlled By Inverter
• Chip Conveyor
• CNC Controlled Down Feed
• Drive by No Torque Loss Helical Bevel Gear
• Full Stroke Vises
• Hydraulic Blade Tensioning
• Motion Detector
• Piece Counter
• Programmable Operation By Micro-Processor
• Vibration Damping Rollers
• Wheel Cover Limit Switch

Cutting Capacity:
Round (Diameter) 11.4″ – 28″ 290-700 mm
Rectangle (W x H) 32″ x 28″ 800 x 700 mm

Work Load Capacity 17,637 lbs 8000 kg

Saw Blade:
Blade Size (L x T x W) 27’3″ x 0.063″ x 2-5/8″ 8300 x 1.6 x 67 mm
Blade Speed 49-394 ft/min by Inverter 15-120 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Quick Approach Feeler
Cutting Control CNC-Lite, Hydraulic Flow Control Valve with Stepping Motor

Vise Operation:
Type Front and Rear Vise
Control Hydraulic Full-Stroke Cylinder

Motors:
Saw Blade 15 HP 11 kW
Hydraulic Pump 5 HP 3.7 kW

Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz
All Other Voltages Require Transformer
Power Requirement 26 kVA

Cutting Fluid:
Tank Capacity 26.4 gal 100 liters
Pump Type Electric
Pump Capacity 30.4 gal/min 115 L/min

Hydraulic
Tank Capacity 30.4 gal 115 liters
Pressure Setting 784 psi 5.5 MPa (55 kgf/cm2)

Chip Disposal Chip Conveyor

Material Index:
Index Mechanism Shuttle Type
Stroke 19.6″ 500 mm
Length 0.39″ – 999.999″ 10-9999.9 mm
Number of Input Block/Station 1-99
Number of Cut-Off Pieces 1-9999
Remnant Length 1.38″ Plus Length of Parts 35 mm Plus Length of Parts

Machine Dimensions (W x L x H)
Head-Up Position 157.4″ x 84.0″ x 112.9″ 3999 x 2133 x 2867 mm
Head Down Position 157.4″ x 84.0″ x 112.9″ 3999 x 2133 x 2867 mm

Table Height 27.6″ 700 mm

Machine Weight 15,435 lbs 7000 kg
