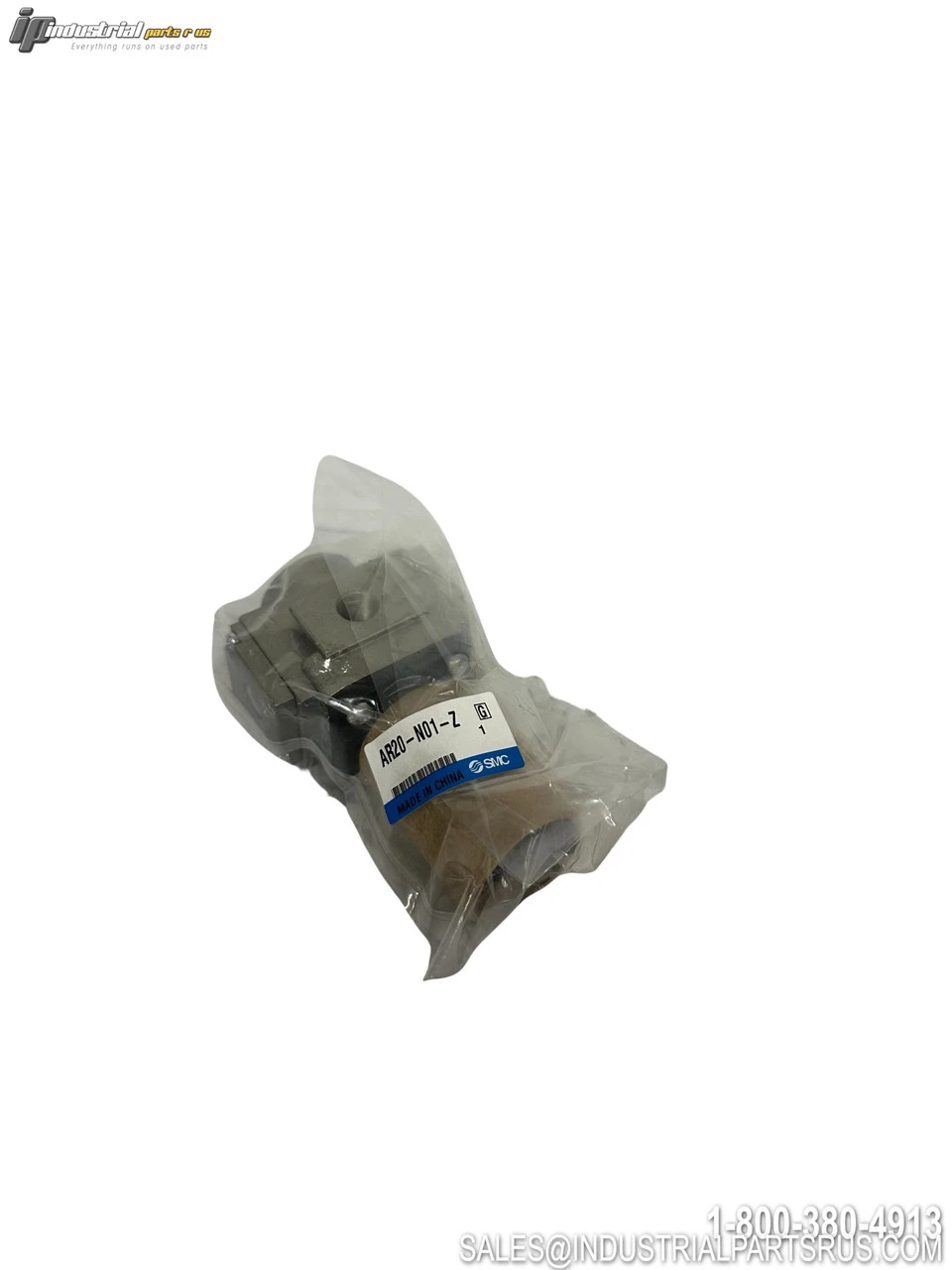

NEW SMC AR20-NO1-Z

The SMC AR20-NO1-Z is a cost-effective and clean-looking modular air regulator from the AR series. This body size 20 regulator offers reliable pressure control with a relieving type exhaust mechanism and locking adjustment knob to prevent accidental setting changes. The modular design allows connection with other SMC air preparation equipment of similar size.
Specification
Value
Brand
SMC
Model/Part Number
AR20-NO1-Z
Series
AR
Body Size
20
Thread Type
NPT
Port Size
1/8 inch
Set Pressure Range
0.05 to 0.7 MPa (7.25 - 123 psi)
Exhaust Mechanism
Relieving Type
Flow Direction
Left to Right
Knob Type
Downward
Relief Pressure
Set pressure + 0.05 MPa
Flow Rate
28 scfm
Backflow Function
Without Backflow
Mounting Option
Without Mounting Bracket
Pressure Gauge
No Gauge
Construction Type
Modular
We warranty all items for 30 days from date of purchase.

SKU: AI0480
UPC: 679523686161
Condition: New
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Manufacturer: SMC
Part Number: AR20-NO1-Z
Shelf: A-19
Model: AR20-NO1-Z
MPN: AR20-NO1-Z
Type: Air Regulator
