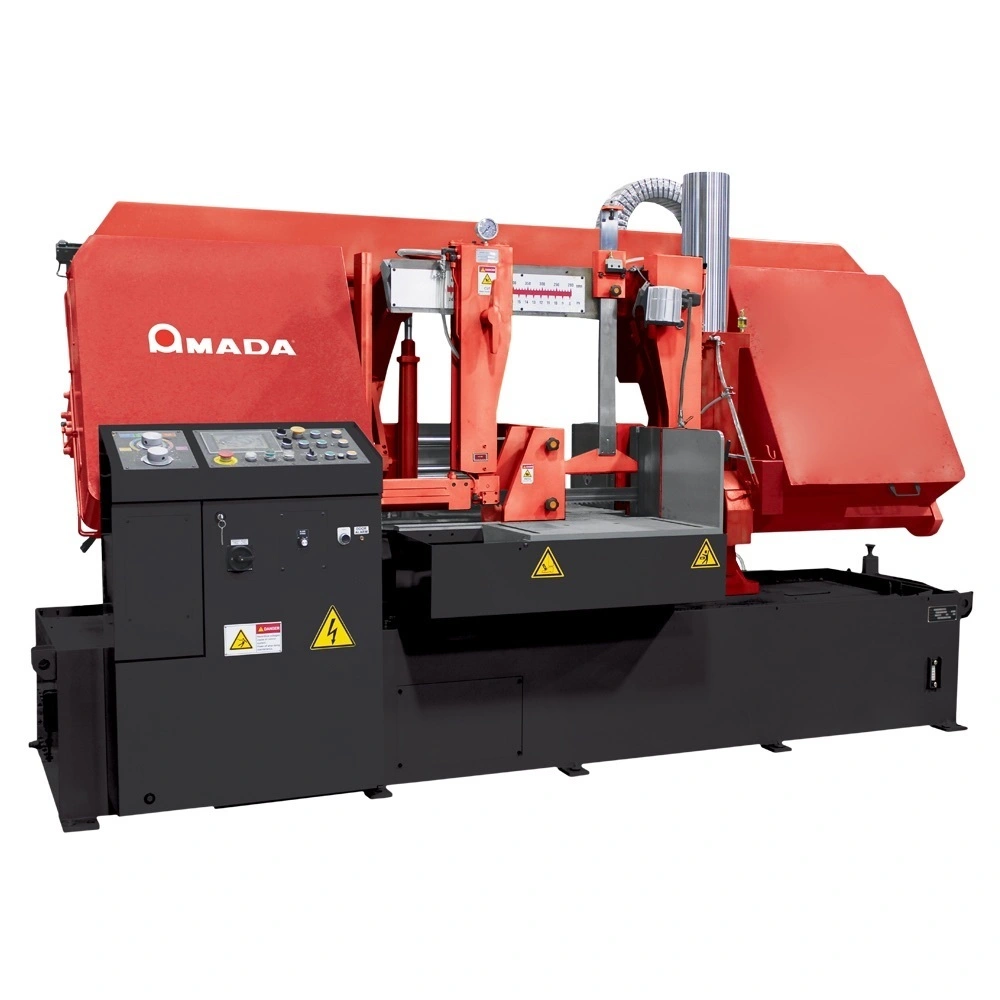

NEW AMADA HFA560P

Cutting Capacity:
Round (Diameter) 22″ Minimum Clamp 4.3″ 560 mm Minimum Clamp 110mm
Rectangle (W x H) 22.4″ x 22″ 570 x 560 mm
Work Load Capacity 7250 lb 3288 kg

Saw Blade:
Blade Size (L x T x W) 21’8″ x 0.0.63″ x 2″ 6604 x 1.6 x 54 mm
Blade Speed 78 – 310 ft/min by Inverter 24-95 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Fast Approach Feeler
Cutting Control Hydraulic Pressure & Flow Control Valve

Vise Operation:
Type Front and Rear Vises
Control Hydraulic Full stroke cylinder

Motors:
Saw Blade 10 HP 7.5 kW
Cutting Fluid Pump 1/4 HP 0.18 kW
Hydraulic Pump 3 HP 2.2 kW

Power Requirements:
Power Supply Voltage AC230V ± 10%
3PH, 60Hz, Required at factory voltage setting
Cutting Fluid Pump @@ kVA

Pressure Settings Hydraulic 427 PSI 3.0 MPa

Material Index:
Index Mechanism Shuttle Vise
Stroke 16″ 406 mm
Length 0.39″ – 999″ 10 – 25000 mm
# of Input Block 1-100
# of Input Station 1-20
# of Cut-Off Pieces 1-999
Remnant Length 6.5″ plus length of parts 165 mm plus length of parts

Fluid Capacities:
Coolant 37 gal 138 liters
Hydraulic Fluid 30 gal 112 liters

Machine Dimensions (W x L x H)
Head Up Position 137.2″ x 85,8″ x 91″ 3485 x 2155 x 2312 mm
Head Down Position 137.2″ x 85,8″ x 91″” 3485 x 2155 x 2312 mm

Chip Disposal Chip Conveyor

Table Height 31.5″ 800 mm

Table Weight Capacity 9920 lbs 4500 kg
