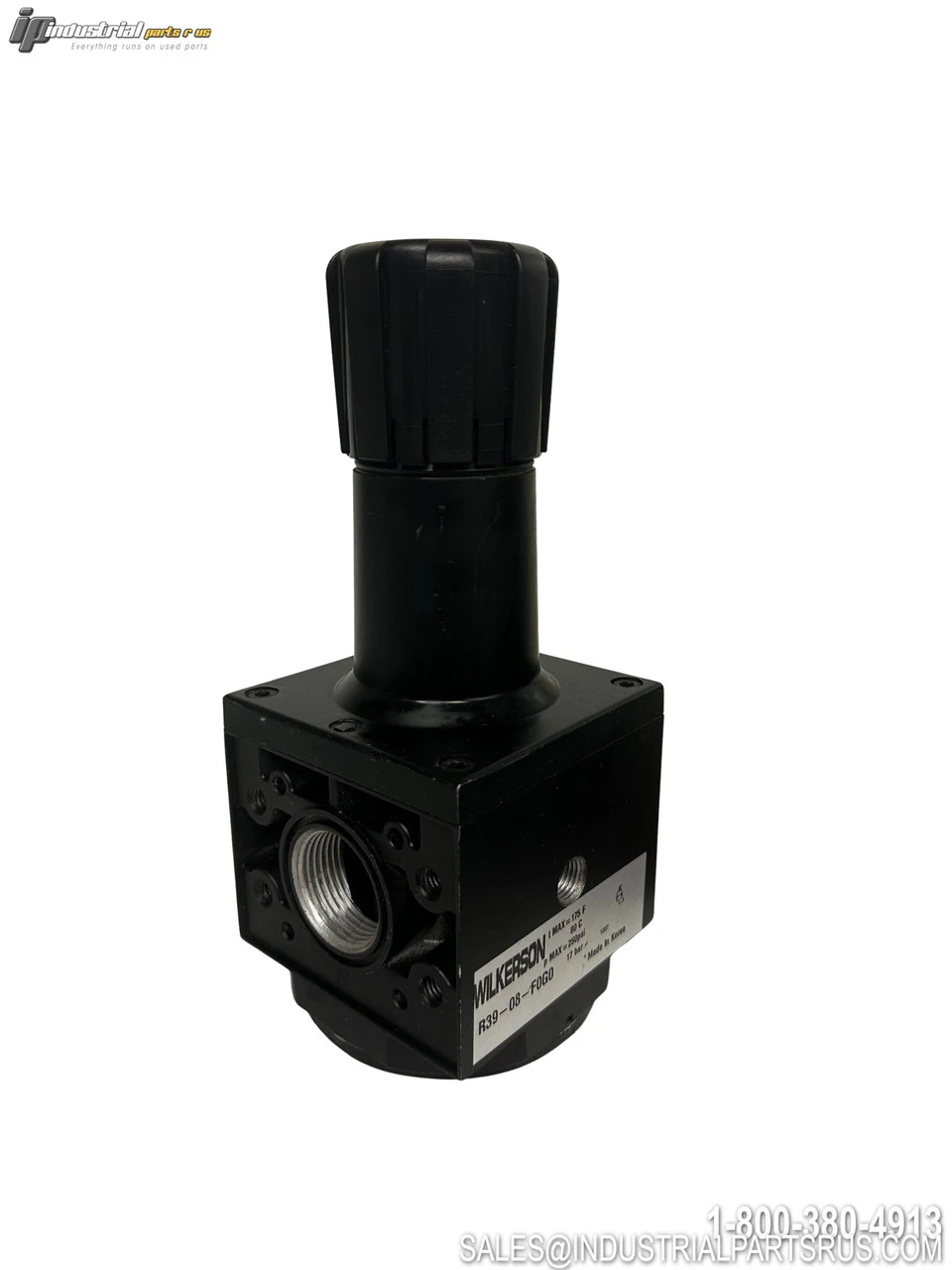

USED WILKERSON R39-08-F0G0

The WILKERSON R39-08-F0G0 is a pneumatic air pressure regulator designed to reduce air line pressure to acceptable levels for industrial applications. This model features a gauge for pressure monitoring and a 1 inch NPT port connection with an adjustable pressure range of 0-125 PSIG. The regulator utilizes a relieving type valve design to maintain consistent downstream pressure.
Specification
Value
Brand
WILKERSON
Model/Part Number
R39-08-F0G0
Product Type
Air Regulator
Port Size
1 inch NPT
Pressure Range
0-125 PSIG (0-8.6 bar)
Maximum Supply Pressure
250 PSIG (17 bar)
Flow Capacity
600 SCFM (283 dm³/s)
Operating Temperature
32-175°F (0-80°C)
Valve Type
Relieving
Gauge Port Size
1/4 inch NPT
Weight
5.0 lbs (2.3 kg)
Body Material
Aluminum
Features
With Gauge, Balanced Valve Design
Series
R39
We warranty all items for 30 days from date of purchase.

SKU: AI0488
UPC: 679523686185
Condition: Used
Availability: In Stock
Weight: 2.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686185
Manufacturer: Wilkerson
Part Number: R39-08-F0G0
Shelf: K-48
Model: R39-08-F0G0
MPN: R39-08-F0G0
Type: Air Regulator
